Allen-Bradley PowerFlex 400 Quick Start Quide

PowerFlex 400 Adjustable Frequency AC Drive Quick Start English-15

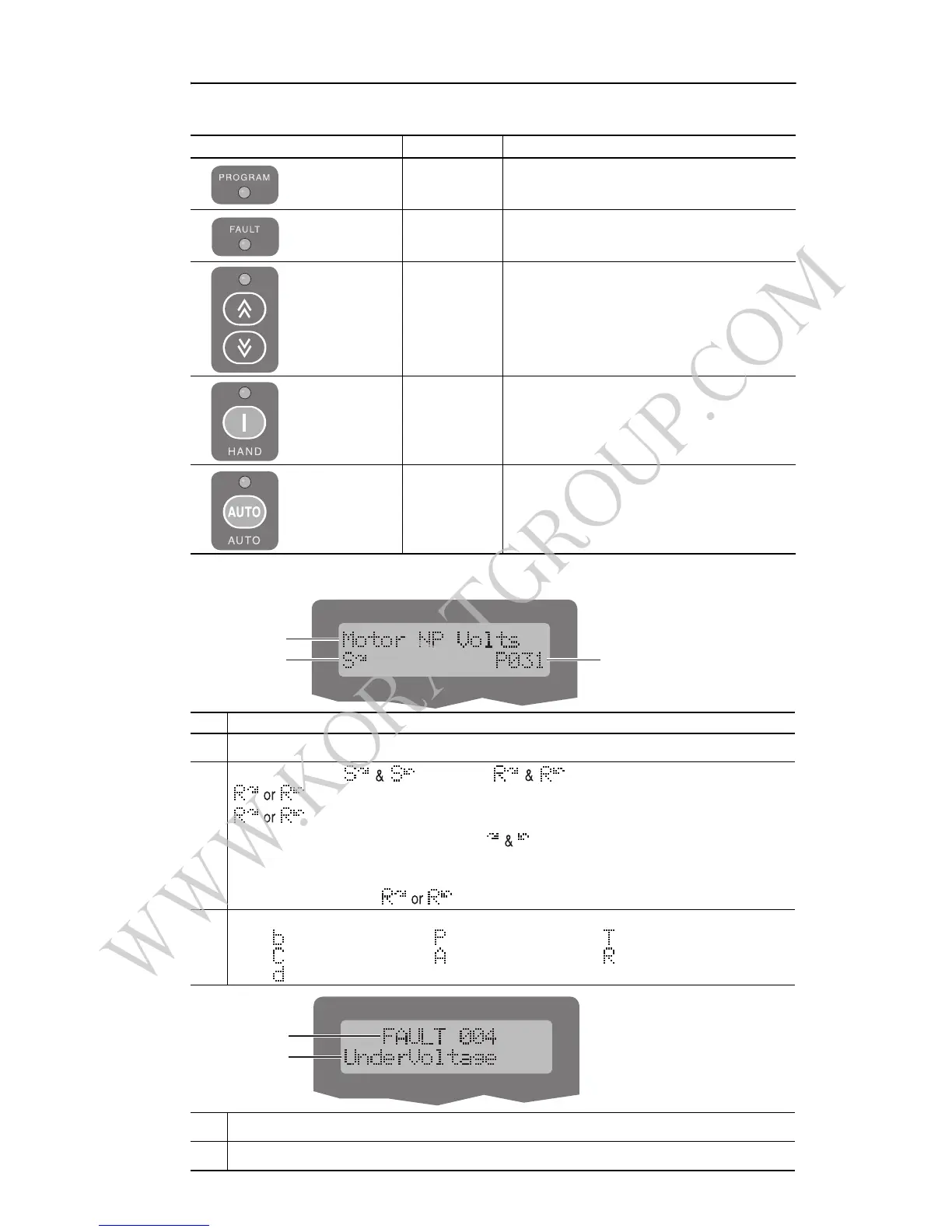

LED Status Indicators
LCD Display
LED LED State Description
Program Status Steady Red Indicates parameter value can be changed.
Selected digit will flash.
Fault Status Flashing Red Indicates that the drive is faulted.
Speed Status Steady Green Indicates that the digital speed control keys are
enabled.
Hand Status Steady Green Indicates that the Run/Start key is enabled.
Auto Status Steady Yellow Indicates that the drive is in Auto mode.
No. Description
➊
Parameter Name
➋
Run/Stop Status: = Stopped / = Running
flashes to indicate that the drive is stopping, but is still decelerating.
flashes when DC Injection is commanded.
Direction Indication: The Direction Arrow indicates the commanded direction of
rotation. If the Arrow is flashing, the drive has been commanded to change direction, but is still
decelerating.
Sleep Mode Indication: flashes to indicate that the drive is in sleep mode.
➌
Parameter Group and Number:
= Basic Display = Basic Program = Terminal Block
= Communications = Advanced Program = Aux Relay Card
= Advanced Display
➍
Fault Indication and Fault Number
➎
Fault Name
➊
➋➌
➍
➎
WWW.KORATGROUP.COM

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
