Allen-Bradley PowerFlex 400 Quick Start Quide

English-4 PowerFlex 400 Adjustable Frequency AC Drive Quick Start

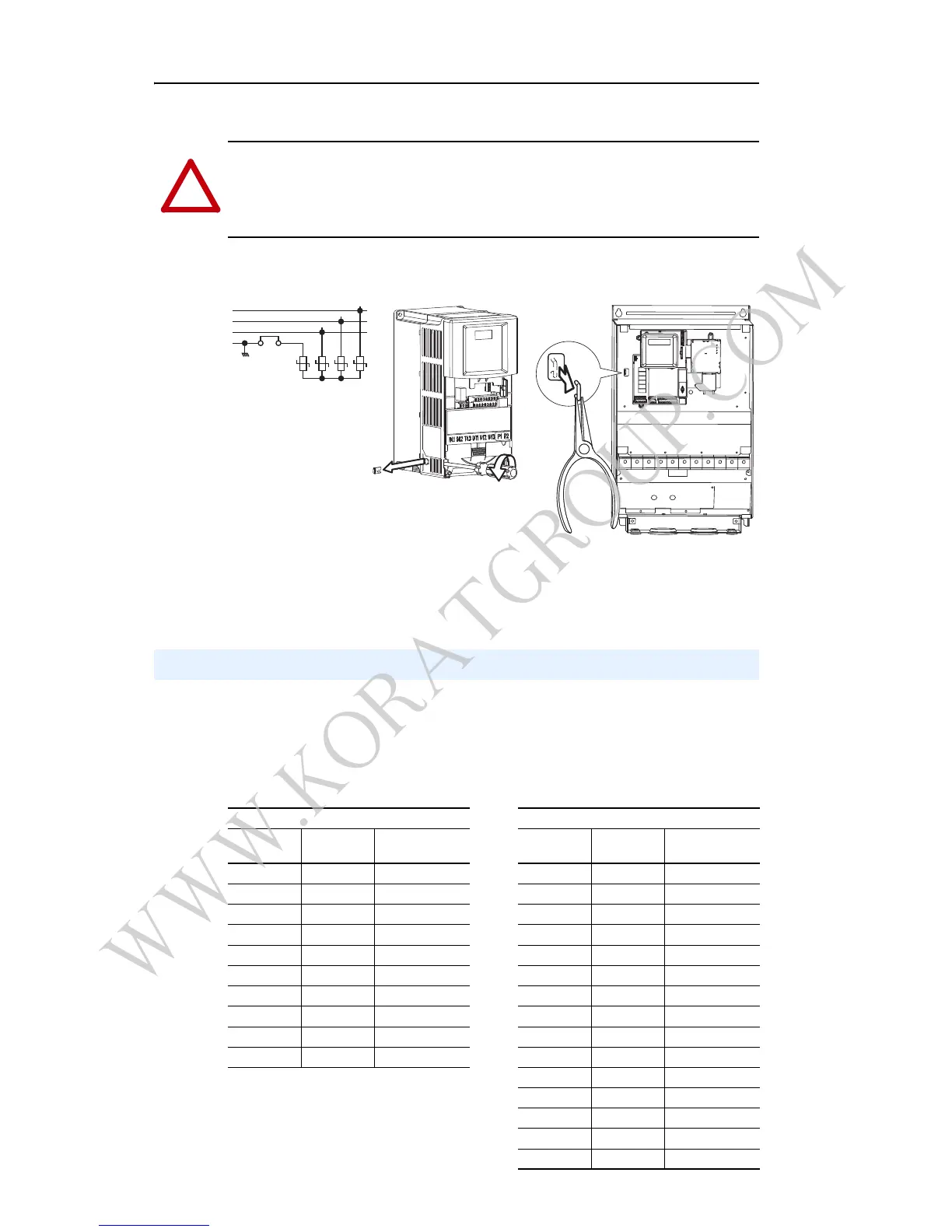

Ungrounded Distribution Systems
Phase to Ground MOV Removal
Note: Frame D drives do not contain a MOV to ground connection and
are suitable for operation in both grounded and ungrounded distribution
systems without modification.
Refer to the PowerFlex 400 User Manual supplied with the drive for
details on how to comply with the Low Voltage (LV) and
Electromagnetic Compatibility (EMC) Directives.
EMC Line Filters
!
ATTENTION: PowerFlex 400 drives contain protective MOVs that
are referenced to ground. These devices must be disconnected if the
drive is installed on an ungrounded or resistive grounded distribution
system.
Frame C
Frame E & F
R/L1
S/L2
T/L3
1234
Important:
Tighten screw after
jumper removal.
CE Conformity
240V 50/60 Hz 3-Phase 480V 50/60 Hz 3-Phase
kW HP
Catalog
Number kW HP
Catalog
Number
2.2 3.0 22-RF034-CS 2.2 3.0 22-RF018-CS
4.0 5.0 22-RF034-CS 4.0 5.0 22-RF018-CS
5.5 7.5 22-RF034-CS 5.5 7.5 22-RF018-CS
7.5 10 22-RF034-CS 7.5 10 22-RF018-CS
11 15 22-RFD070 11 15 22-RF026-CS
15 20 22-RFD100 15 20 22-RFD036
18.5 25 22-RFD100 18.5 25 22-RFD050
22 30 22-RFD150 22 30 22-RFD050
30 40 22-RFD150 30 40 22-RFD070
37 50 22-RFD180 37 50 22-RFD100
45 60 22-RFD100
55 75 22-RFD150
75 100 22-RFD180
90 125 Consult Factory
110 150 Consult Factory
WWW.KORATGROUP.COM

Allen-Bradley PowerFlex 400 Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Communication	EtherNet/IP
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5-95% non-condensing
Enclosure Rating	IP20
Horsepower	0.5-20 HP
Control Method	V/Hz, Sensorless Vector Control
