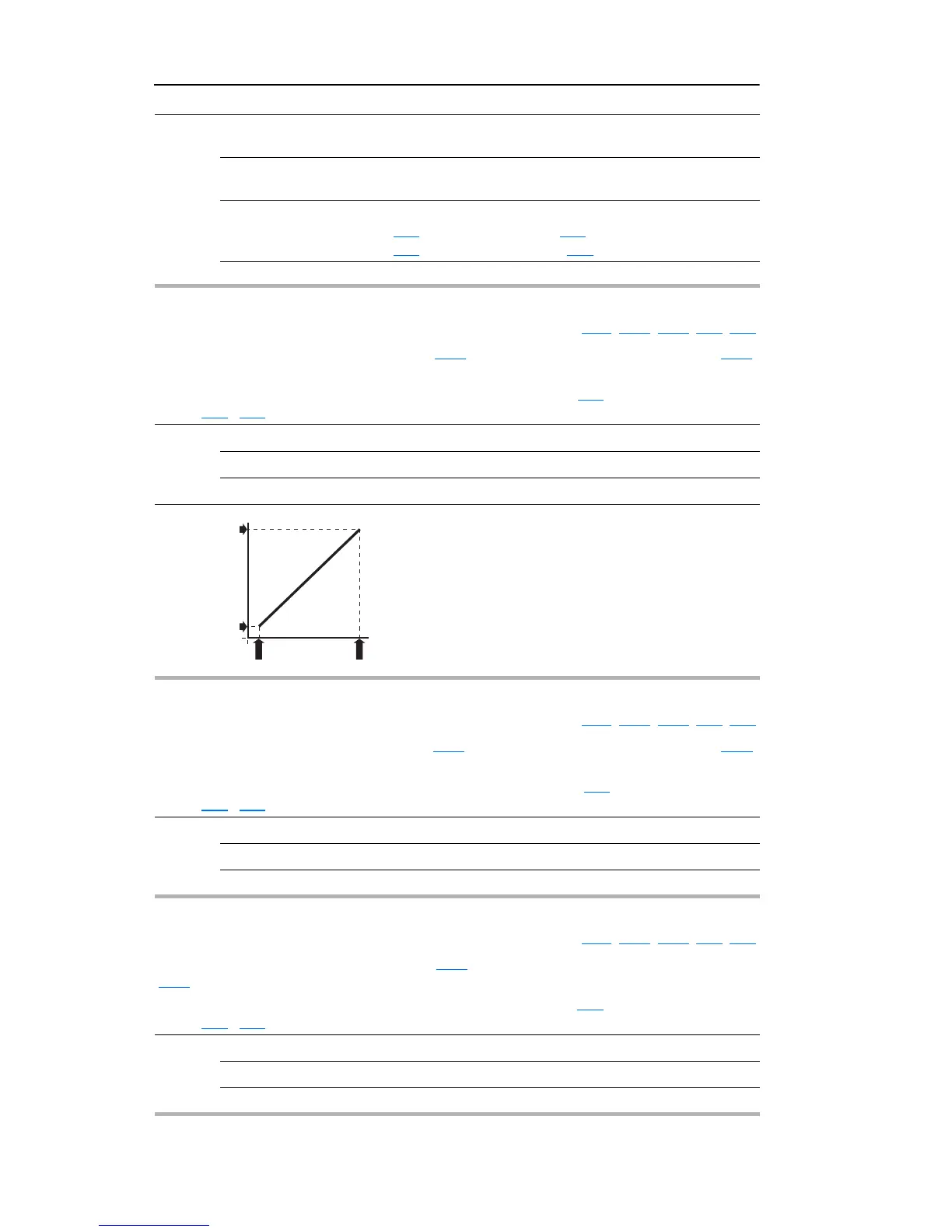

3-14 Programming and Parameters
PowerFlex 4M Adjustable Frequency Drive FRN 1.xx - 2.xx User Manual
Publication 22F-UM001D-EN-E
t201 &
t202
Options
(Cont.)
13 “1
0V In Ctrl” Selects 0-10V or ±10V control as the frequency reference.
Start source is not changed.
14 “2
0mA In Ctrl” Selects 4-20mA control as the frequency reference. Start
source is not changed.
15 “A
nlg Invert” Inverts the scaling of the analog input levels set in
t211 [Anlg In 0-10V Lo] and t212 [Anlg In 0-10V Hi] or
t213 [Anlg In4-20mA Lo] and t214 [Anlg In4-20mA Hi].
16-27 Reserved
t211 [Anlg In 0-10V Lo] Related Parameter(s): d020, P104, P108, t201, t202
Sets the analog input level that corresponds to P104 [Minimum Freq] if a 0-10V input is used by P108
[Speed Reference].
Analog inversion can be accomplished by setting this value larger than
t212 [Anlg In 0-10V Hi] or by
setting
t201 - t202 [Digital Inx Sel] to option 15 “Anlg Invert”.
Values Default 0.0%
Min/Max: 0.0/ 100.0%
Display: 0.1%
0
P105 [Maximum Freq]
P104 [Minimum Freq]
t211 [Anlg In 0-10V Lo] t212 [Anlg In 0-10V Hi]
0
Speed Reference
t212 [Anlg In 0-10V Hi] Related Parameter(s): d020, P105, P108, t201, t202
Sets the analog input level that corresponds to P105 [Maximum Freq] if a 0-10V input is used by P108
[Speed Reference].
Analog inversion can be accomplished by setting this value smaller than
t211 [Anlg In 0-10V Lo] or by
setting
t201 - t202 [Digital Inx Sel] to option 15 “Anlg Invert”.
Values Default 100.0%
Min/Max: 0.0/ 100.0%
Display: 0.1%
t213 [Anlg In4-20mA Lo] Related Parameter(s): d021, P104, P108, t201, t202
Sets the analog input level that corresponds to P104 [Minimum Freq] if a 4-20mA input is used by
P108 [Speed Reference].
Analog inversion can be accomplished by setting this value larger than
t214 [Anlg In4-20mA Hi] or by
setting
t201 - t202 [Digital Inx Sel] to option 15 “Anlg Invert”.
Values Default 0.0%
Min/Max: 0.0/ 100.0%
Display: 0.1%
To Next Page
