B-10 Accessories and Dimensions
PowerFlex 4M Adjustable Frequency Drive FRN 1.xx - 2.xx User Manual
Publication 22F-UM001D-EN-E

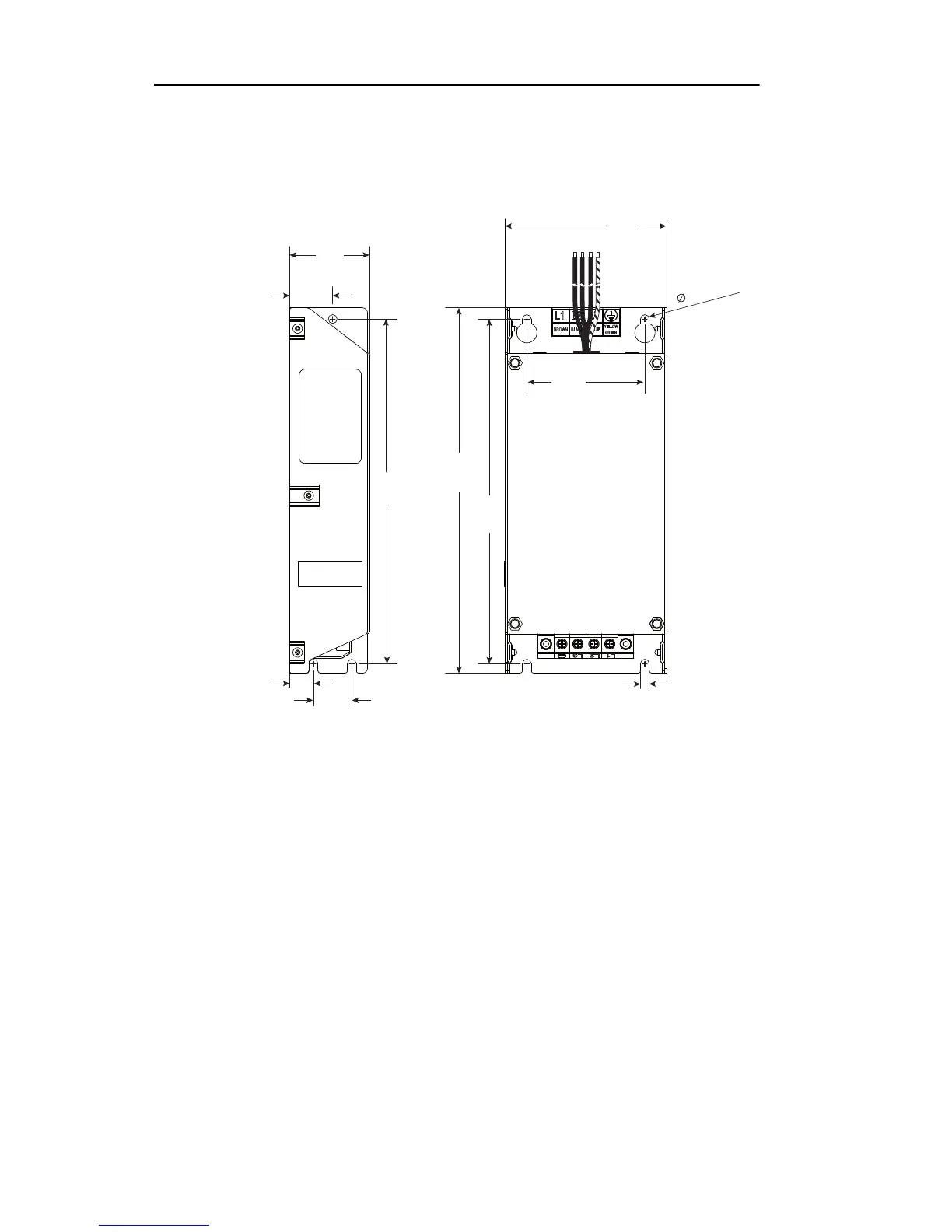

Figure B.6 Frame B EMC Line Filters – Dimensions are in millimeters and (inches)
Catalog Numbers: 22F-RF025-BL; 22F-RF021-BS, 22F-RF021-BL; 22F-RF012-BS,
22
F-RF012-BL
229.0
(9.02)
101.0
(3.98)
74.0
(2.91)
216.0
(8.50)
5.5 (0.22)
50.0
(1.97)
27.0
(1.06)
216.0
(8.50)
24.0
(0.94)
15.0
(0.59)
5.5 (0.22)
