3-10 Access Procedures

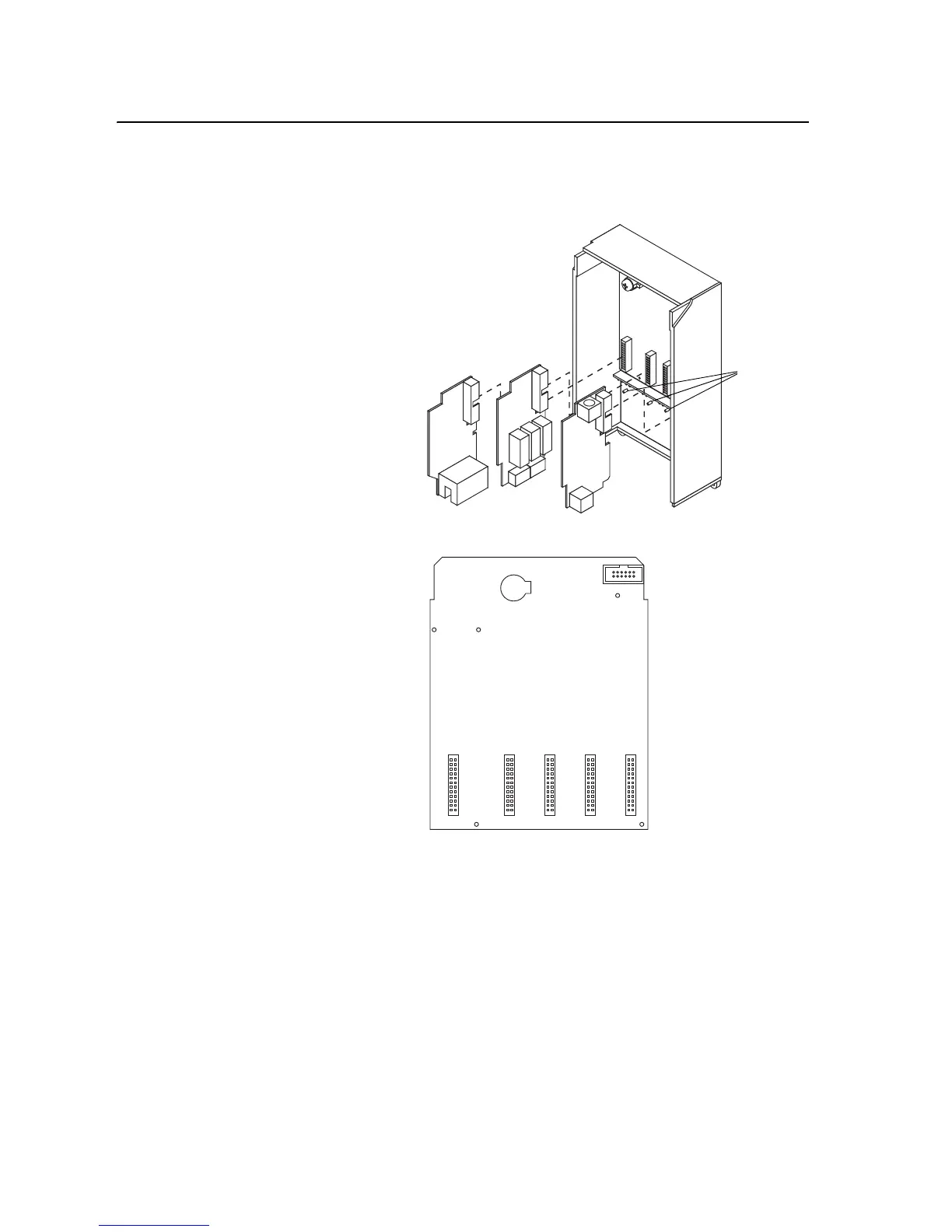

3. Remove the I/O Boards from the Control Board and enclosure. Note the
order of the boards and the keys which prevent placement of boards in
the incorrect slots.
4. Unplug the serial connection from X7 of the Control Board.
Do not remove enclosure cover.
Enclosure is illustrated without
the cover for clarity.
Keys
X7
X2
(Slot A)
Serial Port
X3
(Slot B)
X4
(Slot C)
X5
(Slot D)
X6
(Slot E)
