Access Procedures 3-19
4. Carefully disconnect the fiber-optic cables from sockets along the top of
the Gate Driver Board, and carefully set them aside.
Important: Minimum inside bend radius for fiber-optic cable is 25.4 mm (1
in.). Any bends with a shorter inside radius can permanently
damage the fiber-optic cable. Signal attenuation increases with
decreased inside bend radii.
5. Remove the two screws on the right side of the Gate Driver Board that
secure the clear plastic cover.
6. Disconnect the other cables from sockets of the Gate Driver Board, and
set them aside.
7. Remove the remaining two screws that secure the Gate Driver Board to
the Power module.
8. Carefully remove the board.
Installation

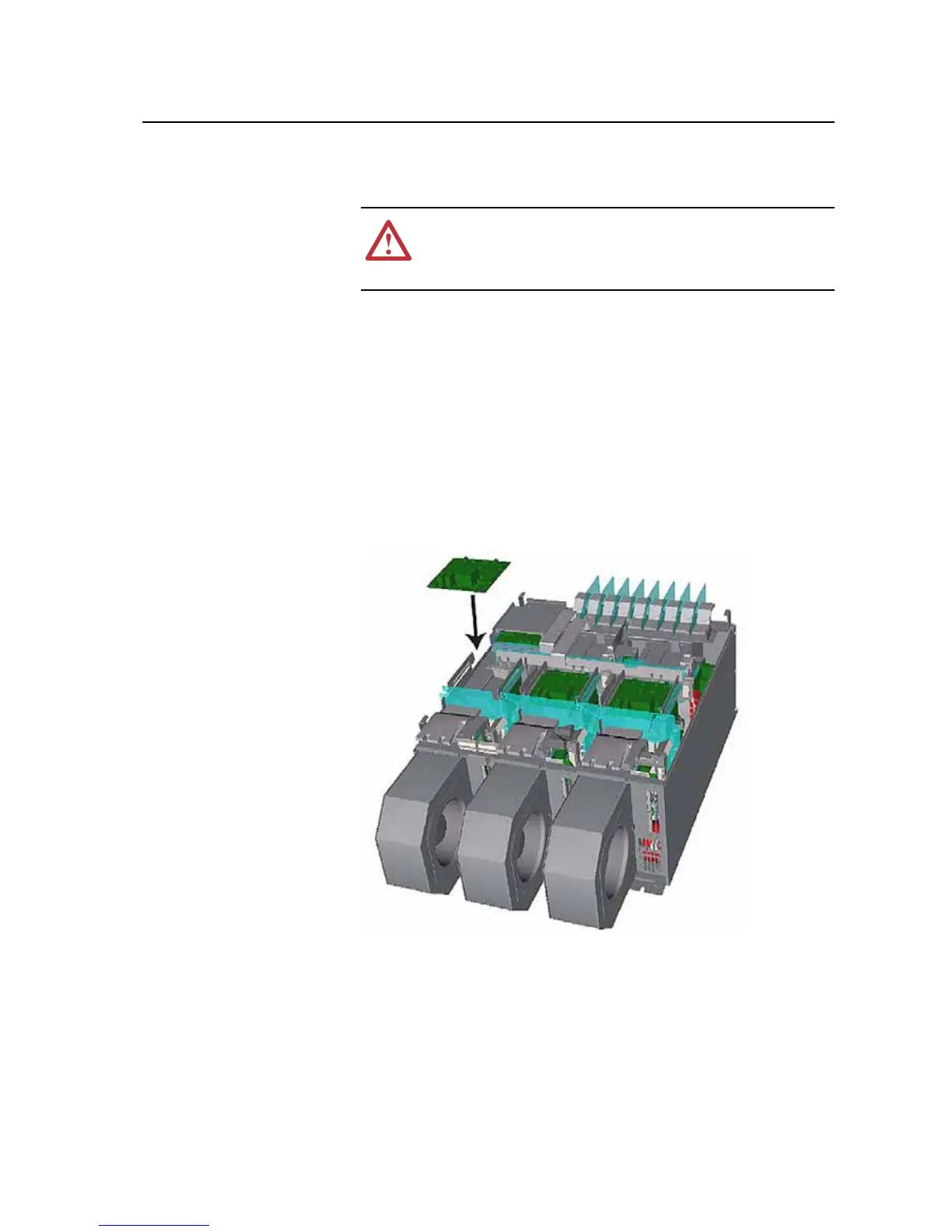

1. Install the Gate Driver Board in the reverse order of removal.
!
ATTENTION: Hazard of permanent eye damage exists when
using optical transmission equipment. This product emits intense
light and invisible radiation. Do not look into fiber-optic ports or
fiber-optic cable connectors.
