Preface

Overview

Who Should Use this

Manual?

This manual is intended for qualified service personnel responsible for

troubleshooting and repairing high power PowerFlex 700S and 700H AC

Drives. You should have previous experience with, and basic understanding

of, electrical terminology, procedures, required troubleshooting equipment,

equipment protection procedures and methods, and safety precautions.

What is in this Manual

This manual contains hardware service information for Frame 11

PowerFlex 700S and 700H drives only. Verify that you are working on a

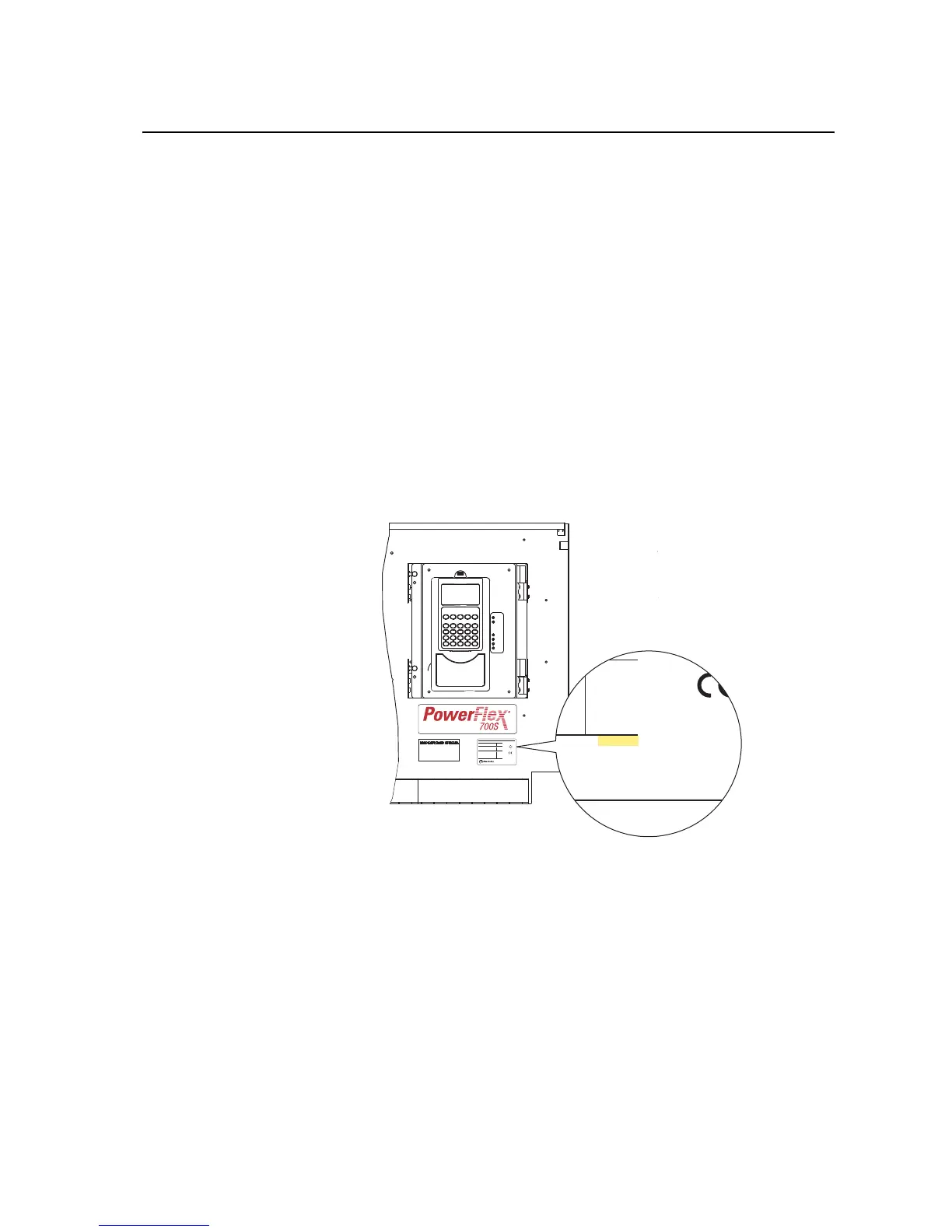

Frame 11 drive by checking the data nameplate on the Control Frame. The

frame number is printed just above the serial number.

What is Not in this Manual

This manual does not contain in depth fault information for troubleshooting.

Fault information is available in publications 20C-PM001, Programming

Manual - PowerFlex 700H Adjustable Frequency AC Drive, PFLEX-IN006,

Installation Instructions - PowerFlex 700S and 700H Adjustable Frequency

AC Drive, and 20D-UM006, User Manual - PowerFlex 700S High

Performance AC Drive Phase II Control.

Cat No.

20D

500 N 0 NNNBNNNN

UL Open Type/IP00

540V 650V

Normal Duty Power

250 kW

200 kW

450 kW

500 kW

Heavy Duty Power

DC Voltage Range

462 - 594

350

583 - 713

350

Amps

Input: DC,

AC Voltage Range

0 - 400

50 Hz

0 - 460

60 Hz

Base Hz (default)

Output: 3 Phase, 0 - 320Hz

Continuous Amps

420/500

630/550

420/500

630/550

1 Min Overload Amps

2 Sec Overload Amps

840/630 840/630

MFD. in 1989 on Nov 9 Frame #: 11

Serial Number: 2622381652

2622381652

MADE IN THE USA (FAC 1B)

Series: A

Standard I/O: NONE

Original Firmware No. 2.04

USC

LISTED

IND CONT EQ

9D42
