Allen-Bradley PowerFlex 755 Reference Manual

Chapter 4
CIP Axis Attributes
446 Rockwell Automation Publication MOTION-RM003I-EN-P - February 2018
the stopping sequences end up in the Major Faulted state. In the context of a
Shutdown Request, the Category 0 stopping method below is applied in the
Stopping state and the stopping sequence ends up in Shutdown state.
Category 0 Stop Sequence
Inverter is immediately disabled. Brake Proving is not applicable.
1. Switch to Stopping state
2. Disable inverter power structure.
3. Deactivate Resistive Brake contactor to disconnect motor from inverter
power structure.
4. Wait for zero speed or "Coasting Time Limit" or a factory set timeout,
whichever occurs first.
5. Transition to Stopped state.
6. Deactivate Mechanical Brake output to engage brake.

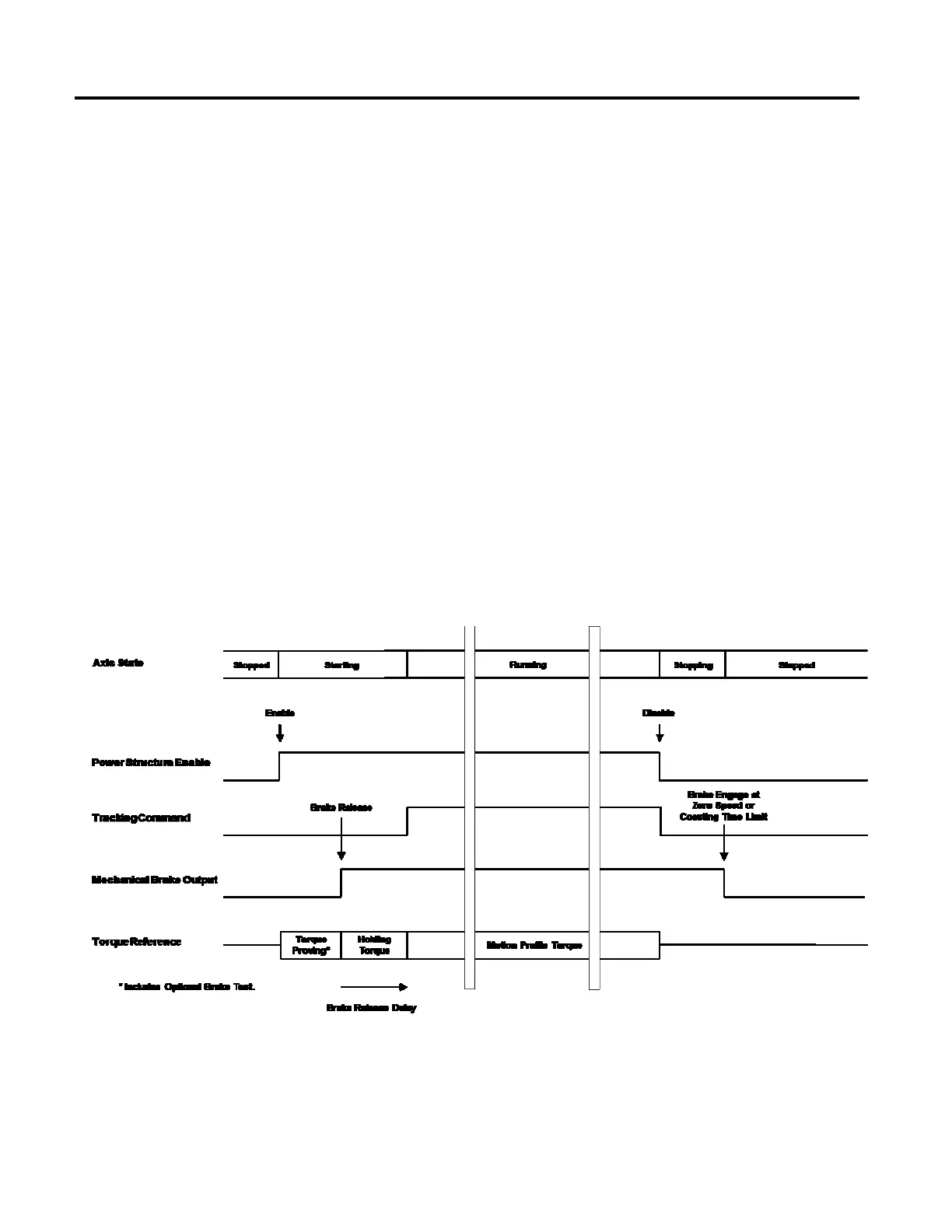

The following diagram illustrates Category 0 Stop Sequence:
Category 1 Stop Sequence
Torque applied to stop the motor before the inverter is disabled. Brake Proving is
applicable.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
