Allen-Bradley SLC 500 BASIC User Manual

Publication 1746-UM004A-US-P
1-6 Module and Development Software Overview
Typical Configurations
The typical configuration of the SLC system that incorporates your BASIC or
BASIC-T module depends on whether the module is:
• integrated with a SLC 500 fixed or modular controller
• programmed directly with an ASCII terminal or programmed using a personal
computer with the BASIC Development Software 1747-PBASE
• communicating with a DH485 network or with an external source through a
modem using DF1 protocol
Module Integration
The module is a single-slot module that is inserted into a slot in the expansion
chassis of your SLC 500 fixed controller or an open slot in the 1746 I/O chassis of
your SLC 500 modular controller. The module may be inserted in any slot of the
1746 I/O chassis except the first slot of the first chassis, which is reserved for the
SLC modular processor. Typical SLC fixed and modular configurations are shown
in the following figures.

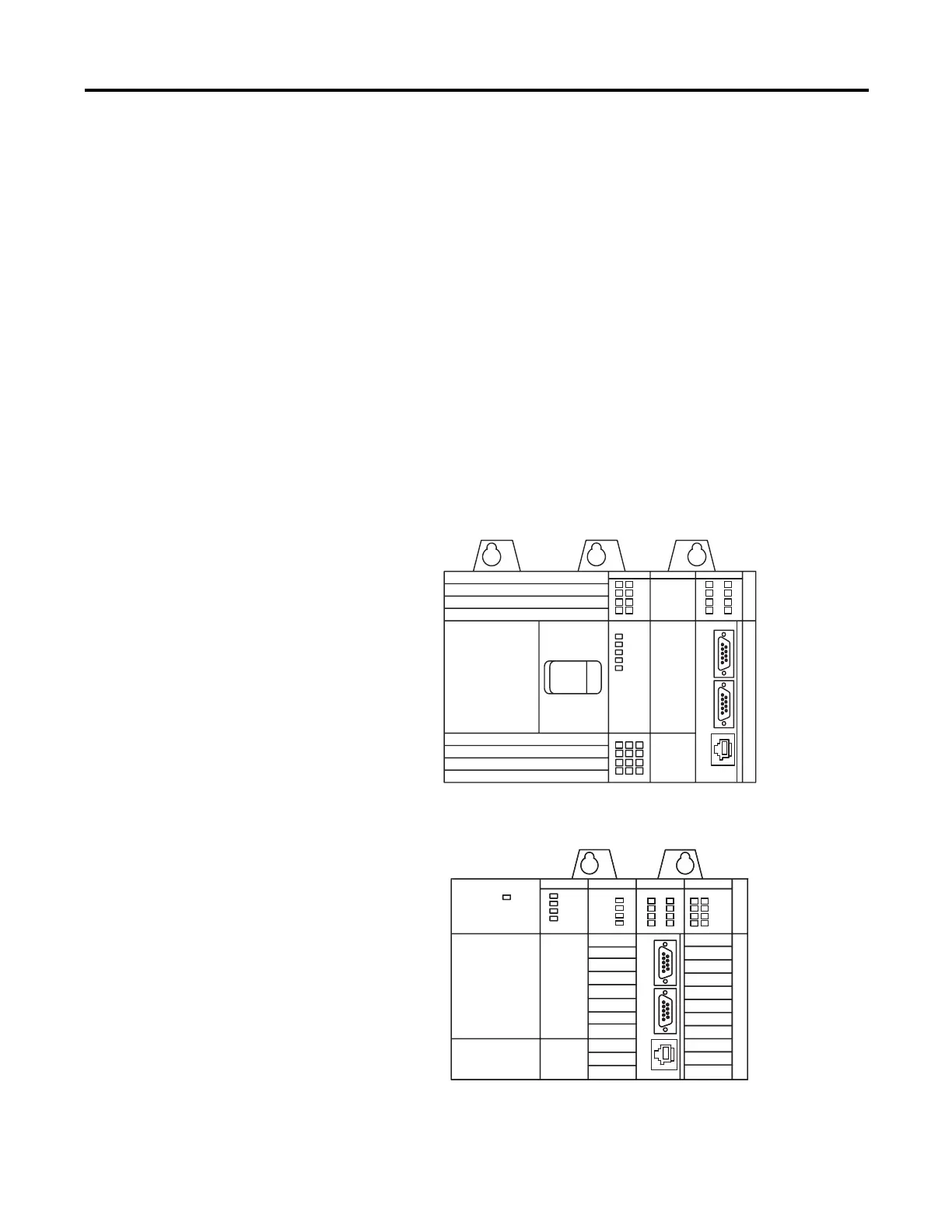

Figure 1.3 Typical Configurations
SLC 500 Fixed Controller
Slot
Filler
BASIC
or
BASIC-T
Power Supply SLC 500
Modular
Processor
Input
Module
Output
Module
BASIC
or
BASIC-T
