Allen-Bradley SLC 500 BASIC User Manual

Publication 1764-UM001A-US-P
2-4 Component Selection

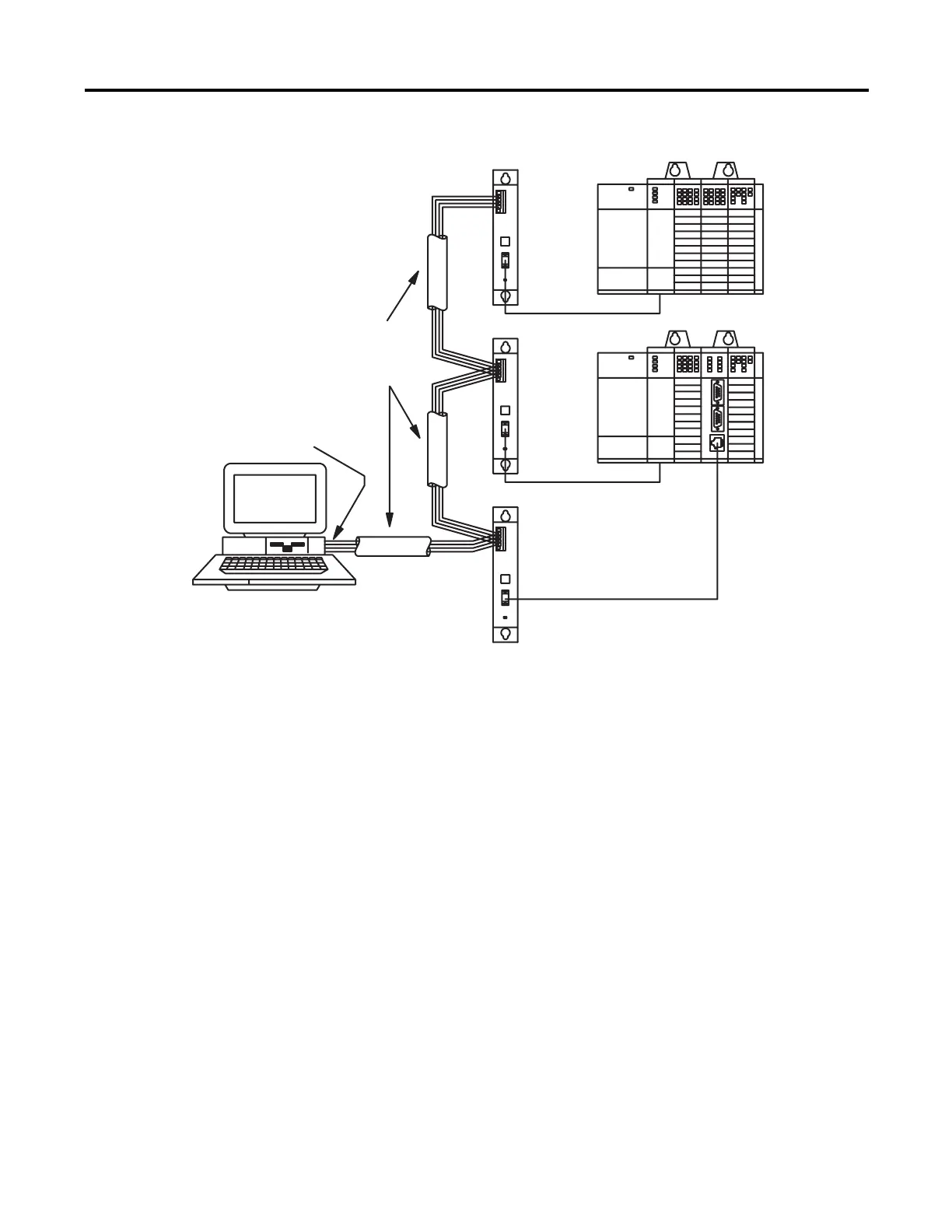

Figure 2.3 DH485 Network Interface
Alternate Connection
The 1747-C13 Cable is designed to connect the following SLC 500 products to
each other:
• 1747-AIC Isolated Link Coupler
• a 1746-BAS or 1746-BAS-T BASIC Module
• fixed controllers
• modular controllers
The following figure shows one application for the 1747-C13 Cable.
DH485
Communication Cable
(Belden™ 9842)
Personal Computer with BASIC
Development Software
(1747-PBASE)
SLC 500
Controller with
BASIC or BASIC-T
Module
1784-KR DH485
Interface Card
SLC 500
Controller
Link Coupler
1747-AIC
1747-C11 Cable
1747-C11 Cable
1747-C10 Cable
Link Coupler
1747-AIC
Link Coupler
1747-AIC
