Allen-Bradley Stratix 8000 Installation Instructions

12 Rockwell Automation Publication 1783-IN012A-EN-P - July 2017
Stratix 8000 and 8300 Ethernet Managed Switches

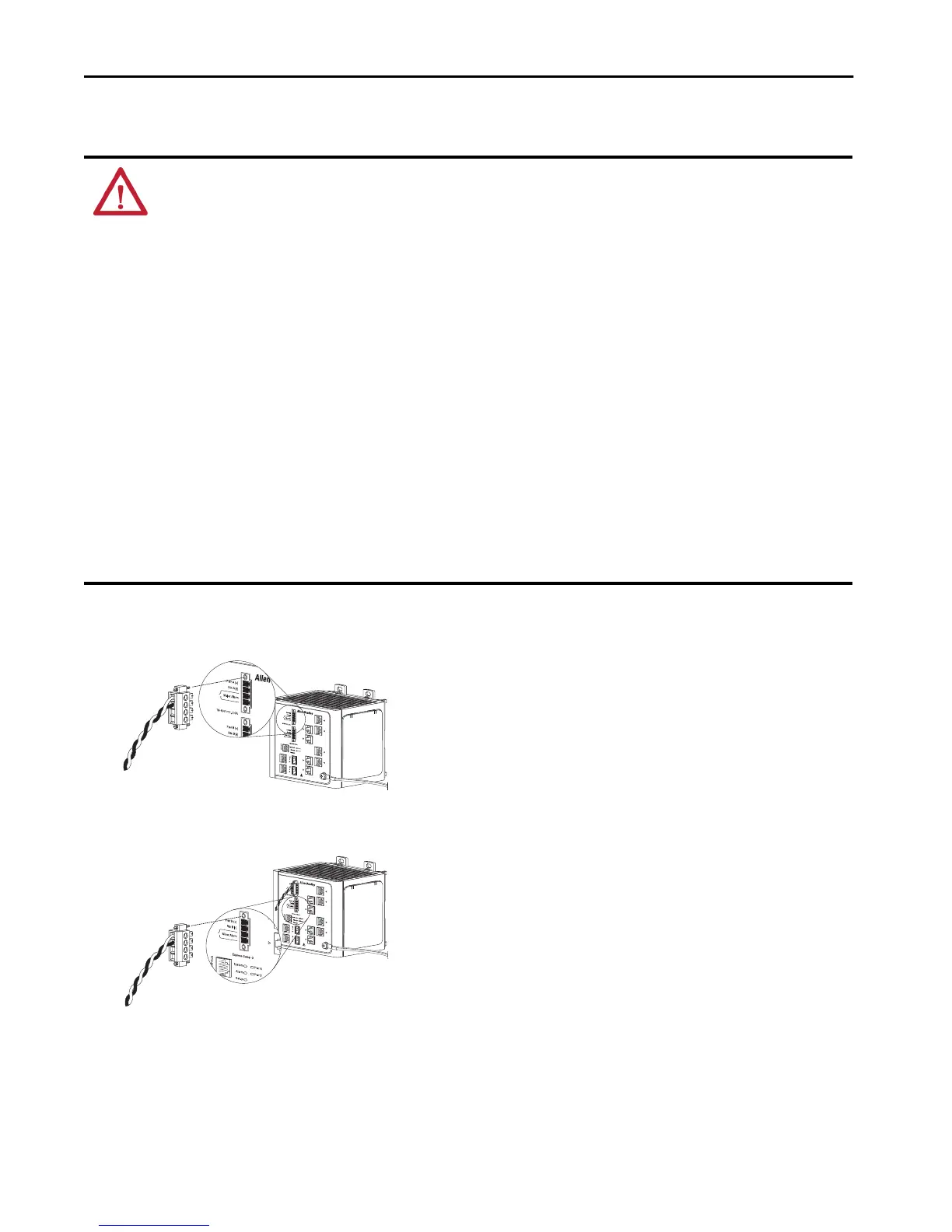

Install the Power and Relay Connector on the Switch
To install the DC power source and relay connector to the front panel of the switch, follow these steps.
1. Insert the power and relay connector into the Pwr A receptacle on the front panel of the switch.
2. Use a screwdriver to tighten the captive screws on the sides of the power and relay connector.
3. If a second power source is required, insert a second power and relay connector into the Pwr B receptacle on the switch front panel.
.
4. Use a screwdriver to tighten the captive screws on the sides of the second power and alarm relay connector.
ATTENTION: Exposure to some chemicals can degrade the sealing properties of materials used in the relay. Periodically inspect the relay and check for any
degradation. If the relay appears damaged in any way, replace the switch.
Sealed Device: Relay Model AGN200A03, manufactured by Matsushita Electric Works
Relay Cover: Manufacture of Plastic Material—Nippon Oil Corp.
Designation of Plastic Material—Type FC-100
Generic Name of Plastic Material —Liquid crystal polymer
Relay Body: Manufacture of Plastic Material—Ueno Fine Chemicals Industry Ltd.
Designation of Plastic Material— Type 2125G
Generic Name of Plastic Material—Liquid crystal polymer
Relay Epoxy: Manufacture of Material—Resinous Kasei Co. Ltd.
Designation of Material – Type A-2500BK
Generic Name of Plastic Material—Epoxy Resin
Sealed Device: Relay Model B4GA003Z, manufactured by Fujitsu Takamisawa Electric Co. Ltd.
Relay Cover: Manufacture of Plastic Material —Sumitomo Chemical Co. Ltd.
Designation of Plastic Material—Type E4009
Generic Name of Plastic Material—Liquid crystal polymer
Relay Body: Manufacture of Plastic Material—Sumitomo Chemical Co. Ltd.
Designation of Plastic Material—Type E6807LHF
Generic Name of Plastic Material—Liquid crystal polymer
Relay Epoxy: Manufacture of Material—Sumitomo Bakelite Co. Ltd.
Designation of Material—Type ‘SUMIMAC’ ECR-9750K2
Generic Name of Plastic Material—Epoxy Resin
VRTA A
31786-M
VRTAA
31788-M
VRTA A
