All water connectors present on the machine must be connected
or the wash program will not function correctly. Refer to T
able 14
for possible connection options, which will depend on the water
types to be connected to the machine, which can be found by
checking the machine plates.

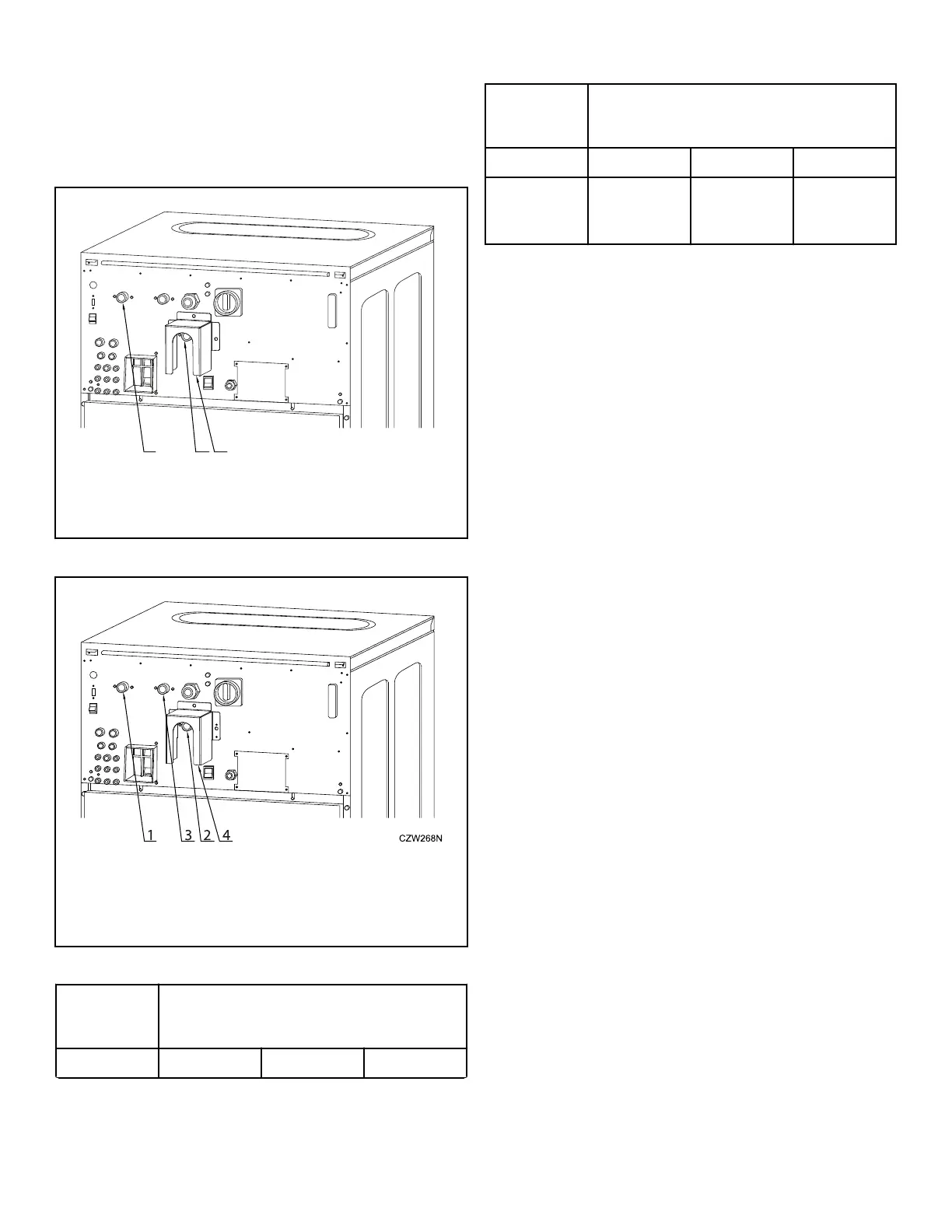

2 Water Connection Models
1. Refer to Table 14
.
2. Refer to Table 14 .
3. Cover
Figure 23
3 Water Connection Models
1. Refer to Table 14
.
2. Refer to Table 14 .
3. Refer to Table 14 .
4. Cover
Figure 24
Water
type Water connection
1 2 3
Table 14 continues...
Water
type Water connection
Cold and Hot Cold Hot N/A
Cold soft,
Cold hard and
Hot
Cold soft Hot Cold hard
Table 14
NOTE: If the water pressure is below the minimum val-
ue, the wash result can not be guaranteed for a selec-
ted program.
Connections should be supplied by a hot and a cold water line of
at least the sizes shown in Water Supply Line Sizing . Installation
of additional machines will require proportionately lar
ger water
lines.
Connections should be supplied by a hot and a cold water line per
national and local codes and in accordance with IEC 61770.
To connect water service to a machine with hoses, use the follow-
ing procedure:
1. Before installing hoses, flush the building’s water system at
the machine connection valves for at least two (2) minutes.
2. Check filters in the machine’s inlet hoses for proper fit and
cleanliness before connecting.
3. Hang hoses in a large loop; do not allow them to kink.
If additional hose lengths are needed or using hoses other than
those supplied by manufacturer, flexible hoses with screen filters
are required.
