1
2
3
CFS673N_SVG

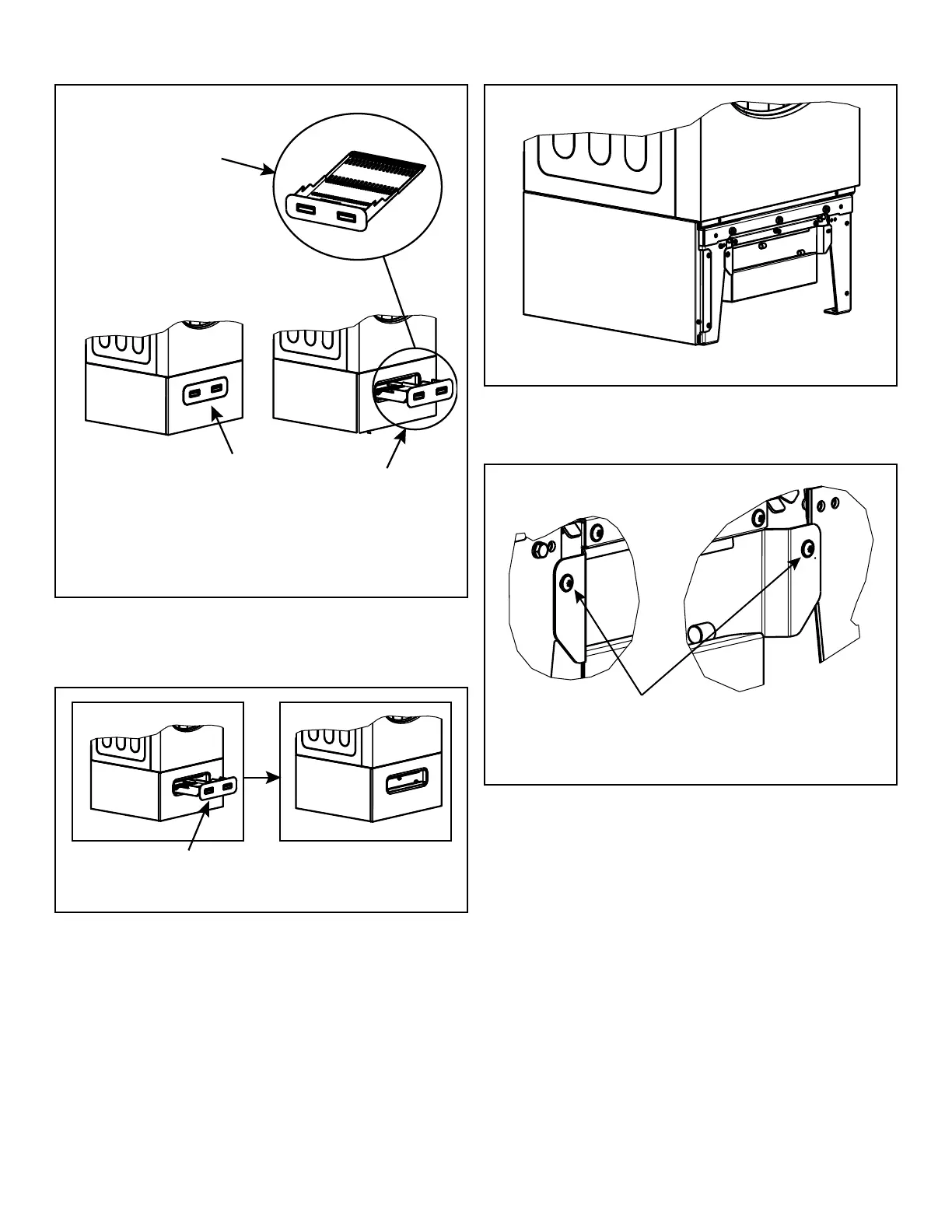

1. Filter
2. Filter in working position
3. Filter in partially ejected position
Figure 42
Box dismounting procedure:
1. Remove the filter. Refer to Figure 43 .
CFS674N_SVG
1
1. Filter
Figure 43
2. Remove the front cover of the filter base frame. Refer to Fig-
ure 44
.
CFS675N_SVG
Figure 44
3. Remove the two screws (M6) that attach the filter box. Refer
to position 1 of Figure 45 .
1
CFS676N_SVG
1. Screws (M6)
Figure 45
4. Remove the clamps and waste hoses from the filter box at the
back of the machine. Refer to Figure 46
.
Maintenance
©
