Specifications and Dimensions
15
70458301ENR6

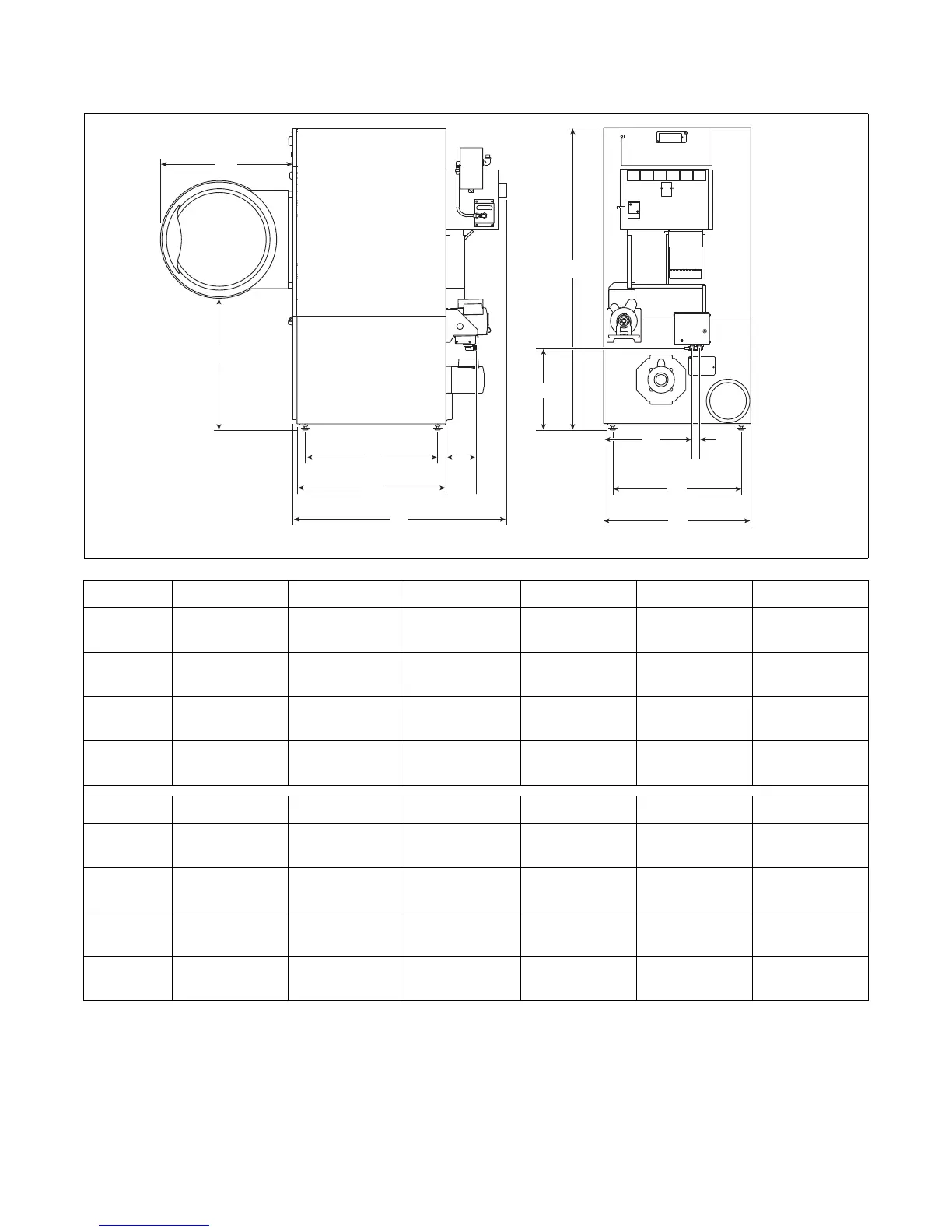

Cabinet Dimensions – 025, 030, 035 and 055 Series
* Fire suppression system optional - may not be on machine.
NOTE: Facia panels available to increase height of
models to 72.25 inches (1,835 mm) and 76.25 inches
(1,938 mm).
TMB2292N
B
A
C
H
E
F
D
G
J
I
K
L
Models A B C D E F*
025 Series
26.25 in.
(667 mm)
27.5 in.
(669 mm)
23.35 in.
(593 mm)
25.75 in.
(654 mm)
40.875 in.
(1,038 mm)
6.53 in.
(166 mm)
030 Series
26.25 in.
(667 mm)
27.5 in.
(669 mm)
28.35 in.
(720 mm)
31.75 in.
(806 mm)
46.875 in.
(1,191 mm)
6.53 in.
(166 mm)
035 Series
28 in.
(711 mm)
27.5 in.
(669 mm)
28.35 in.
(720 mm)
31.75 in.
(806 mm)
46.875 in.
(1,191 mm)
6.53 in.
(166 mm)
055 Series
31.88 in.
(810 mm)
26.87 in.
(682.5 mm)
33.75 in.
(857.25 mm)
38.25 in.
(971.5 mm)
53.62 in.
(1,365 mm)
6.53 in.
(166 mm)
Models G H* I* J* K L
025 Series
63.875 in.
(1,622 mm)
16.48 in.
(419 mm)
15.41 in.
(391 mm)
1.59 in.
(40 mm)
24.64 in.
(626 mm)
28 in.
(711 mm)
030 Series
63.875 in.
(1,622 mm)
16.48 in.
(419 mm)
15.41 in.
(391 mm)
1.59 in.
(40 mm)
24.64 in.
(626 mm)
28 in.
(711 mm)
035 Series
63.875 in.
(1,622 mm)
16.48 in.
(419 mm)
19.59 in.
(497.5 mm)
1.59 in.
(40 mm)
27.38 in.
(695 mm)
31.5 in.
(800 mm)
055 Series
66.72 in.
(1,694.7 mm)
17.75 in.
(451 mm)
18.65 in.
(474 mm)
1.59 in.
(40 mm)
30.5 in.
(774.7 mm)
34.5 in.
(876 mm)

ALLIANCE 030 Series Specifications

General

Brand	ALLIANCE
Model	030 Series
Category	Dryer
Language	English
