ALLIANCE 030 Series User Manual

© Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT
Electrical Requirements
70458301ENR6
56
Service/Ground Location
Models Through 7/9/12
Model Heat Source Ground and Terminal Block Locations
Non-CE
025
030
035
055
Series
Gas or Steam
Non-CE
025
030
035
055
Series
Electric
CE
025
030
035
055
Series
Gas or Steam
CE
025
030
035
055
Series
Electric

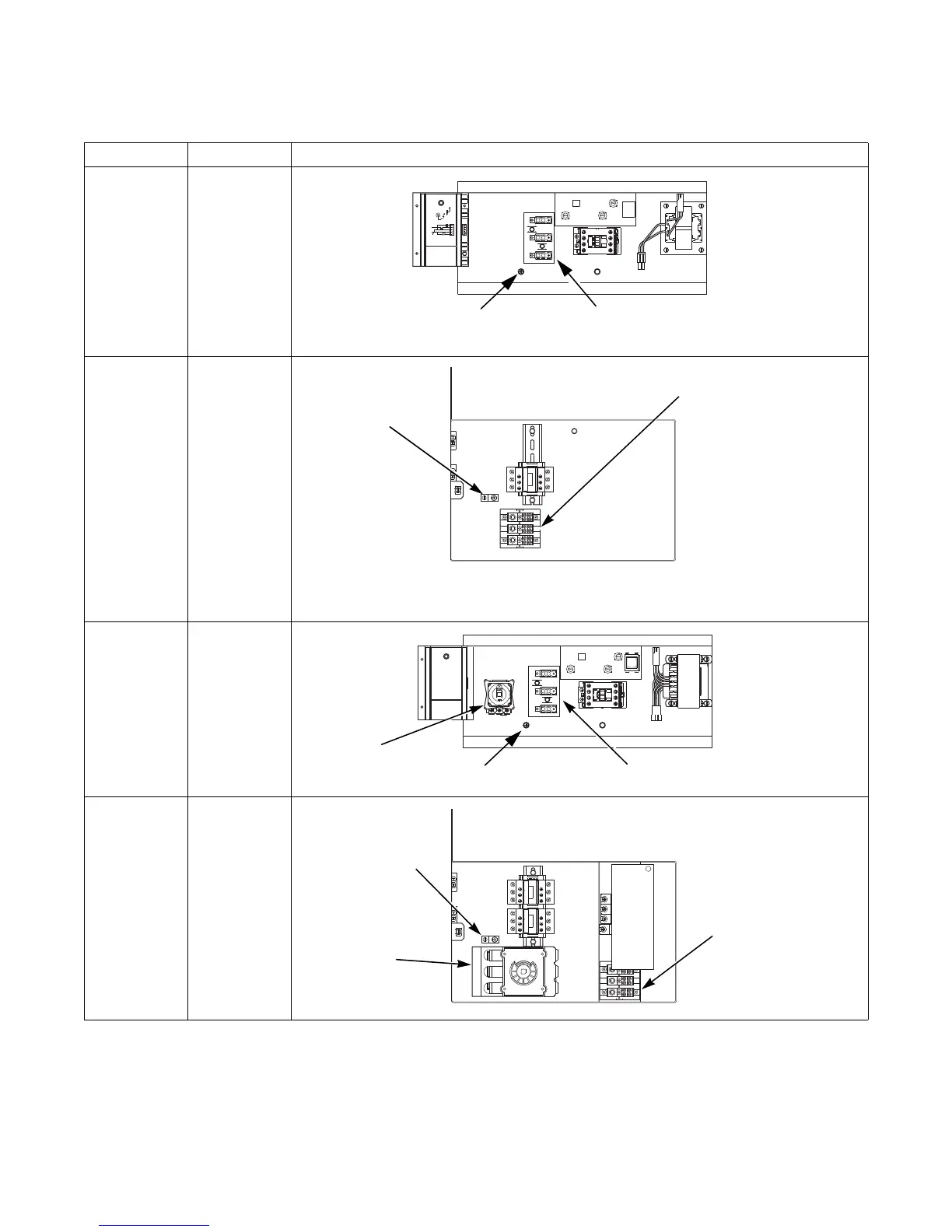

Figure 23
TMB2127N
Ground Screw
Terminal Block
Control Tray
TMB2127N
TMB2128N
Ground
Lug
Power
Distribution Block
Accessory Box (located below control tray)
TMB2128N
NOTE: Do not make service connections in control tray.
Ground Screw
Terminal Block
TMB2129N
Models
Through
7/31/11
Ground
Lug
Power
Distribution Block
TMB2130N
Models
Through
7/31/11
