Electrical Requirements
70458301ENR6
62
Ferrite Ring Installation (025, 030,
035 and 055 Series Only)
Gas and Steam Models with OM Control Suffix
Only (Models Through 7/31/11)
The ferrite ring provided in the literature packet must
be installed over the power leads during connection of
electrical service. The ferrite protects the sensitive
electronic controls from destructive electrical
disturbances which may be present on power lines to
the machine. Failure to properly install the ferrite ring
may result in damage to the electronic controls and
will void control warranty.
To install:
1. Immediately after connection of power leads and
before applying power to machine, locate each of
the incoming service leads including ground.
2. Snap the ferrite ring closed over all the service
leads inside of the contactor box as shown. It is
important that the ferrite ring be installed inside
the contactor box. Refer to Figure 26. Do not
install the ferrite outside of the box or other area.
Make sure that service leads are in the center of
the ferrite before closing the ring so as not to
pinch or damage leads.

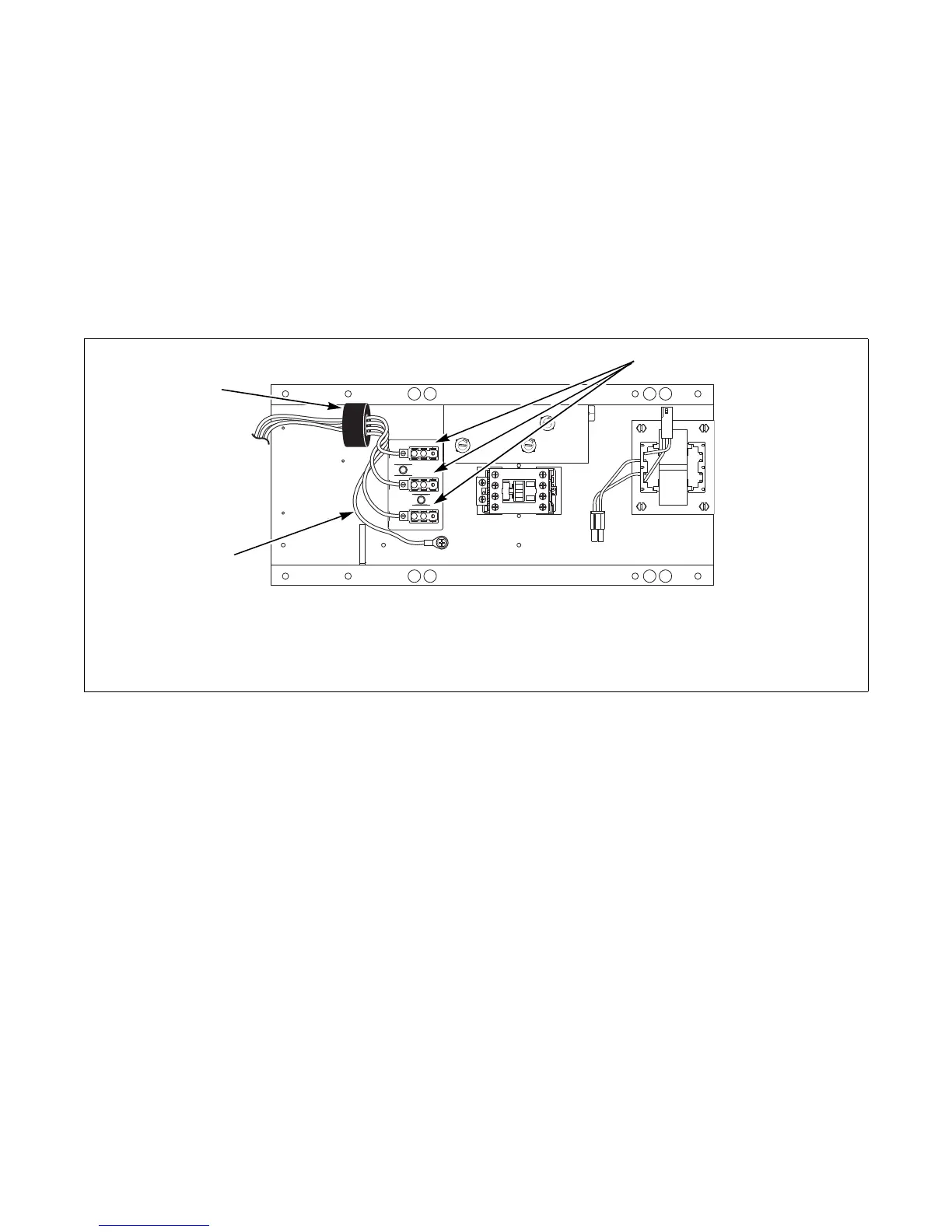

Figure 26
TMB2096N
1 Ferrite Ring
2 Electrical Connections V.A.C.
3 Ground Wire
