Specifications and Dimensions
70458301ENR6
18

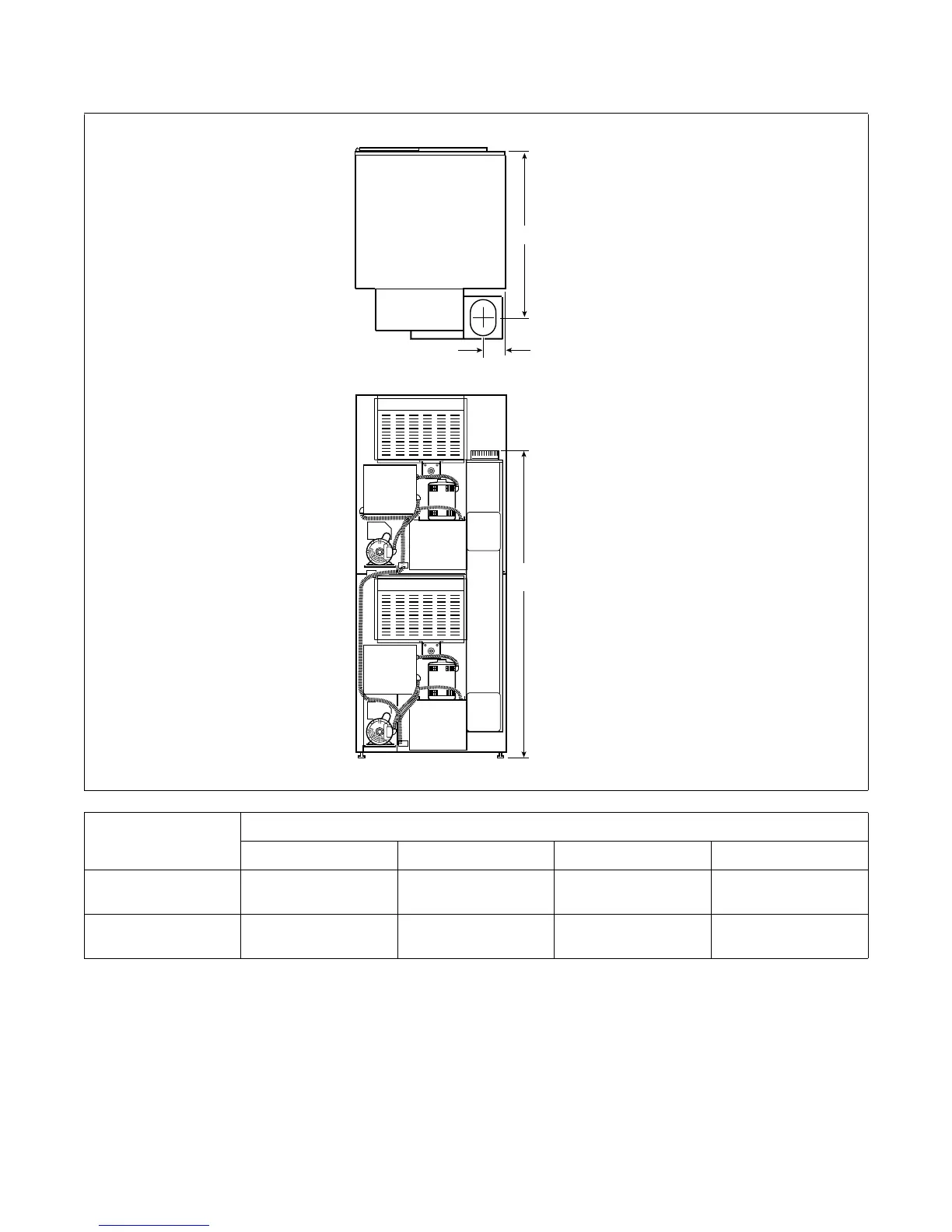

Exhaust Outlet Locations – T30 and T45 Series
TMB1969N
TMB1969N
B
C
A
Models
Rear Exhaust
Diameter A B C
T30 Series
Elliptical
Fits 8 in. (203 mm)
36.54 in.
(928 mm)
4.25 in.
(108 mm)
62.42 in.
(1,585 mm)
T45 Series
Elliptical
Fits 10 in. (254 mm)
40.88 in.
(1,038 mm)
4.75 in.
(121 mm)
66.00 in.
(1,676 mm)
