ALLIANCE 030 Series User Manual

© Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT
Specifications and Dimensions
70458301ENR6
16

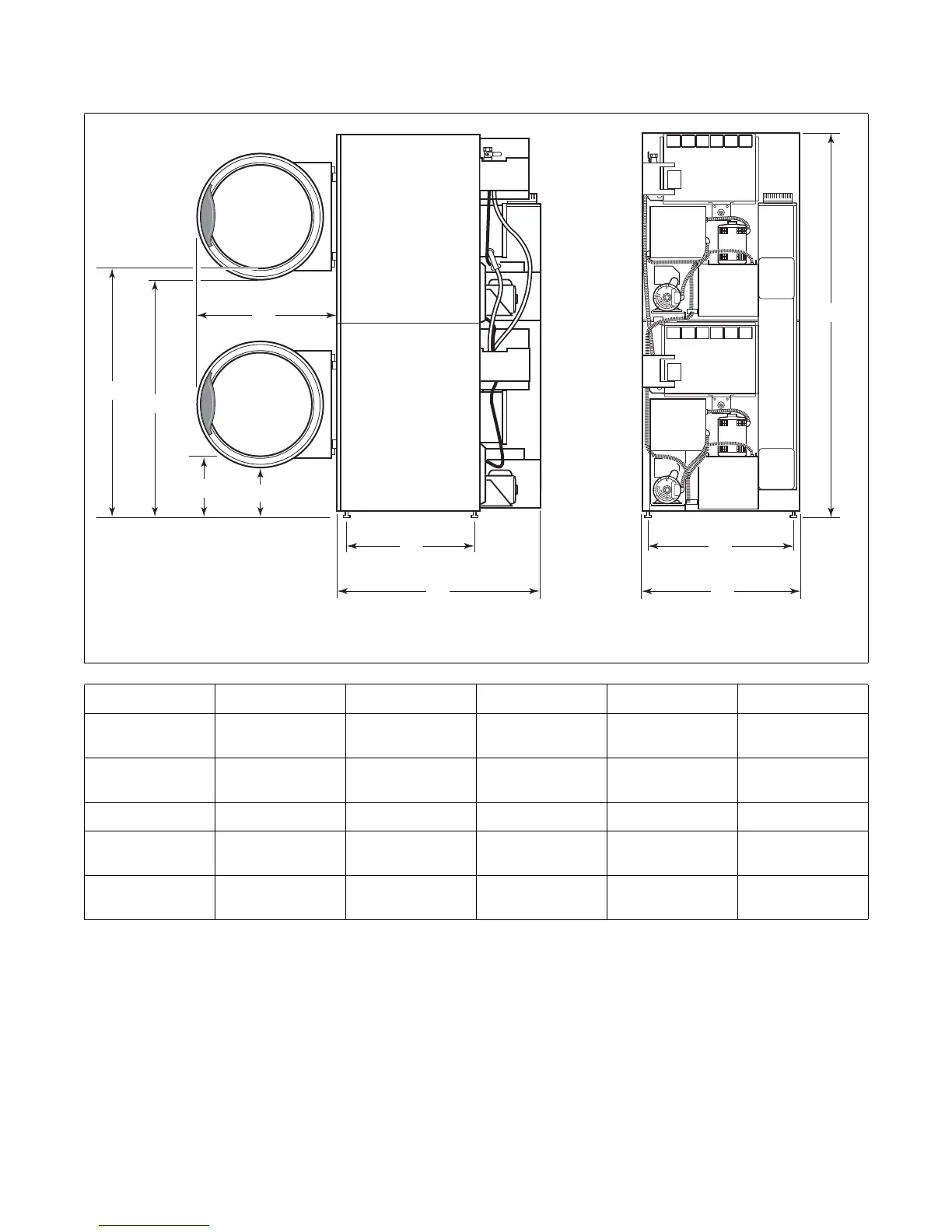

Cabinet Dimensions – T30 and T45 Series
NOTE: To meet ADA compliance, install a 4 inch
(102 mm) riser on T30 models only.
TMB2332N
TMB2332N
C
E
F
H
J
B
D
G I
A
ModelsABCDE
T30 Series
28 in.
(711 mm)
49 in.
(1,245 mm)
48.25 in.
(1,226 mm)
11.4 in.
(290 mm)
10.7 in.
(272 mm)
T45 Series
31.88 in.
(810 mm)
50.4 in.
(1,280 mm)
49.3 in.
(1,252 mm)
10.3 in.
(262 mm)
9.3 in.
(236 mm)
Models F G H I J
T30 Series
25.02 in.
(636 mm)
42.76 in.
(1,086 mm)
27.38 in.
(695 mm)
31.5 in.
(800 mm)
76.25 in.
(1,937 mm)
T45 Series
29.37 in.
(746 mm)
48.62 in.
(1,235 mm)
30.50 in.
(775 mm)
34.5 in.
(876 mm)
81.25 in.
(2,063.75 mm)

ALLIANCE 030 Series Specifications

General

Brand	ALLIANCE
Model	030 Series
Category	Dryer
Language	English
