Installation
33
70458301ENR6
Before Placing Tumble Dryer into
Service
1. Remove or open all panels and check accessible
bolts, nuts, screws, terminals and fittings for
tightness.
2. Replace all panels and guards.
3. Remove and discard wire tie from the airflow
switch so it can swing freely. Refer to Figure 12.
4. Turn on electrical supply to tumble dryer.
5. Open the supply valve for gas or steam heated
tumble dryers.
6. After performing the previous checks, start the
tumble dryer by pressing START. (Refer to the
Operating Manual for detailed instructions.)
Release the start button and open the loading
door. The cylinder should stop rotating within
seven seconds after the door is opened a
maximum of 2 inches (51 mm). If it does not,
adjust the loading door switch. Refer to
Adjustments section.
7. Gas Tumble Dryers: Start the tumble dryer and
check the burner flame. Adjust the air inlet
shutter as required. Refer to Adjustments section.
IMPORTANT: The electronic ignition system will
attempt to light the gas by sparking for the “trial
for ignition” period. If gas does not ignite within
this period, the ignition control will go into a safety
lockout and the valve will no longer open until the
control is reset. It may be necessary to retry several
times to bleed air from the gas lines. To reset, open
and close the loading door and restart tumble
dryer.
TMB2104N

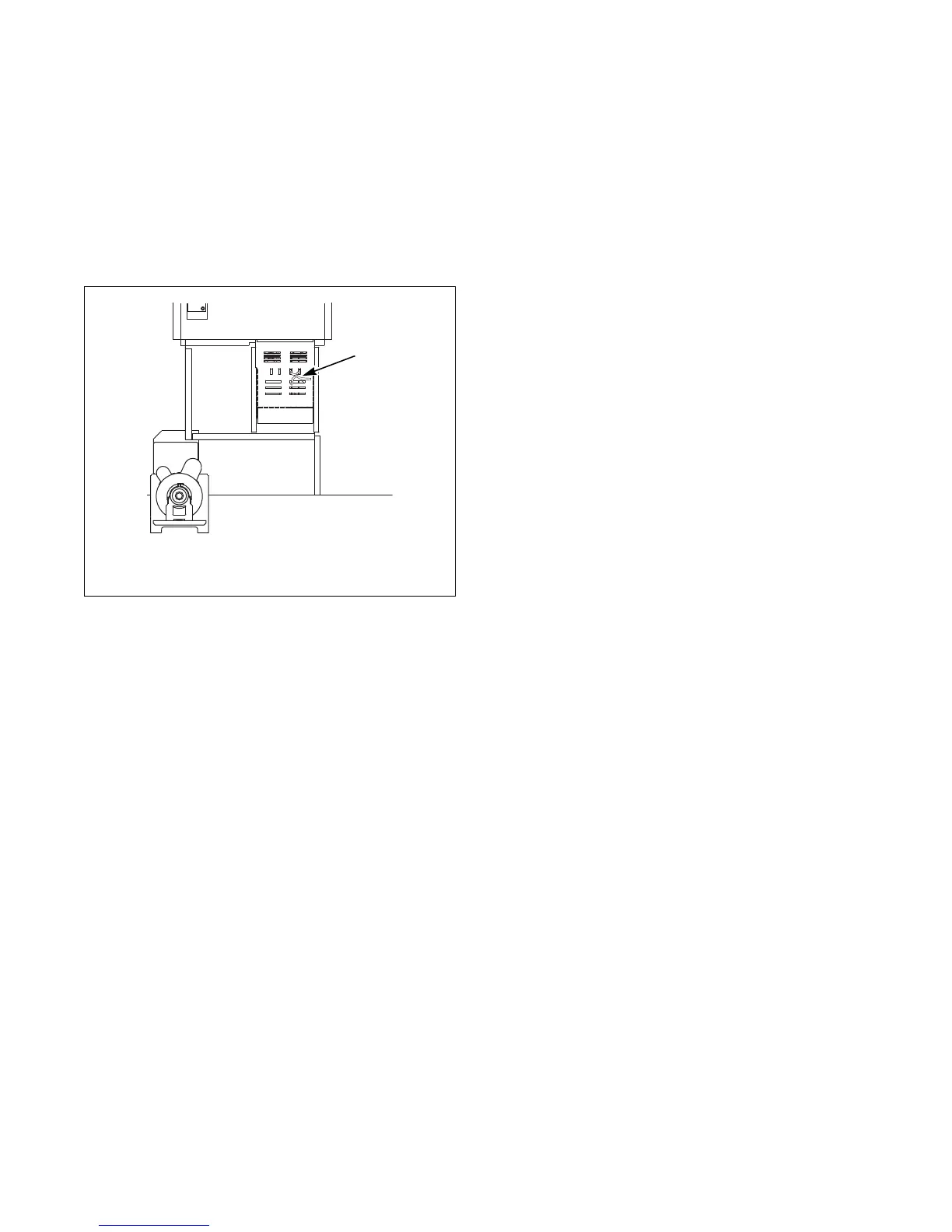

1 Wire Tie
Figure 12
