9. Place front panel on machine, loosely attach four
bottom screws. Connect door switch harness to
switch in new location.
10. Remove opposite door hinge cam. DO NOT
DISCARD CAM AND NUT. Reattach door
hinge cam to door hinge assembly securing with
screw. Install door assembly and four door hinge
side screws loosely. Refer to Figure 11.
11. Check lint panel fit, adjusting front panel up or
down as required. Tighten four front panel side
screws to maintain position of front panel for
proper lint panel clearance.
12. Remove lint panel. Fully tighten bottom screws
on front panel.
13. Reinstall top screws.
14. Adjust door catch if necessary to allow
7 – 15 pounds (0.48 – 1.03 bar) pull at center of
handle.
15. Reinstall control assembly using mounting
screws.
16. Reinstall control panel and lint panel.
IMPORTANT: Restore power to tumble dryer and
test for proper operation of loading door switch.
Tumble Dryer should not start with door open; an
operating tumble dryer should stop when door is
opened.
NOTE: If machine is converted back to right hand
hinge operation, the door switch harness must be
rerouted and rebundled with the lint panel switch
harness. Wire ties must be used to secure harnesses.
Wire ties (Part No. 55881) can be ordered from
Genuine Parts.

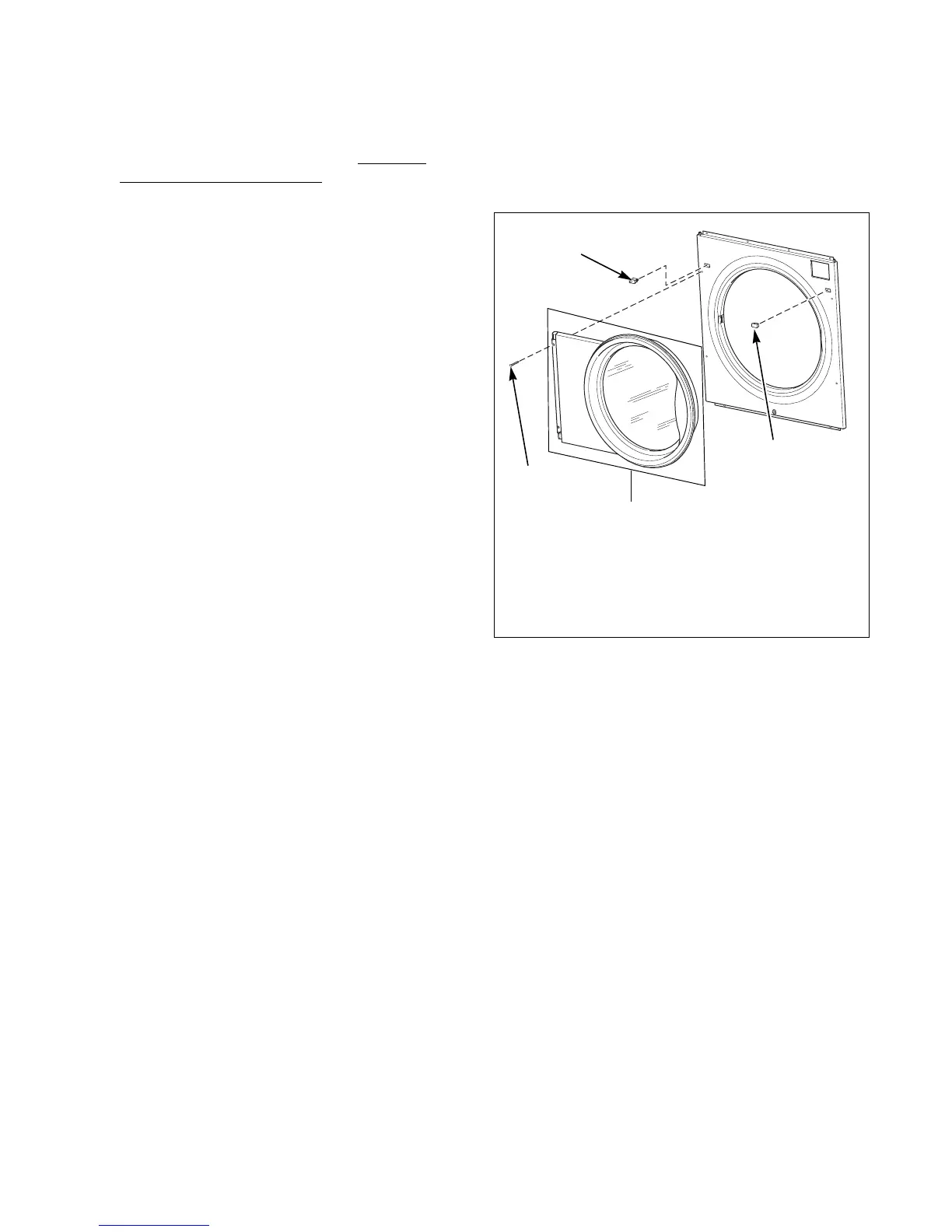

Figure 11
TMB2102N
1 Switch (New location)
2 Plug (New location)
3 Door Assembly
4 Side Screw
