© Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT
Installation
31
70458301ENR6
4. Remove four front panel screws. Refer to
Figure 8. Keep door hinge cams in place on door
hinge lug. Pull lug and door assembly off as one
piece. Refer to Figure 9.
5. Remove remaining front panel screws. Refer to
Figure 8. Disconnect door switch harness from
switch. Take off front panel. Refer to Figure 9.
6. Exchange switch and plug locations. Depress
tabs with an adjustable pliers to remove plug and
switch from front panel. Reinstall switch,
orienting button toward center of machine.
Reinstall plug in switch’s previous location.
Refer to Figure 9.

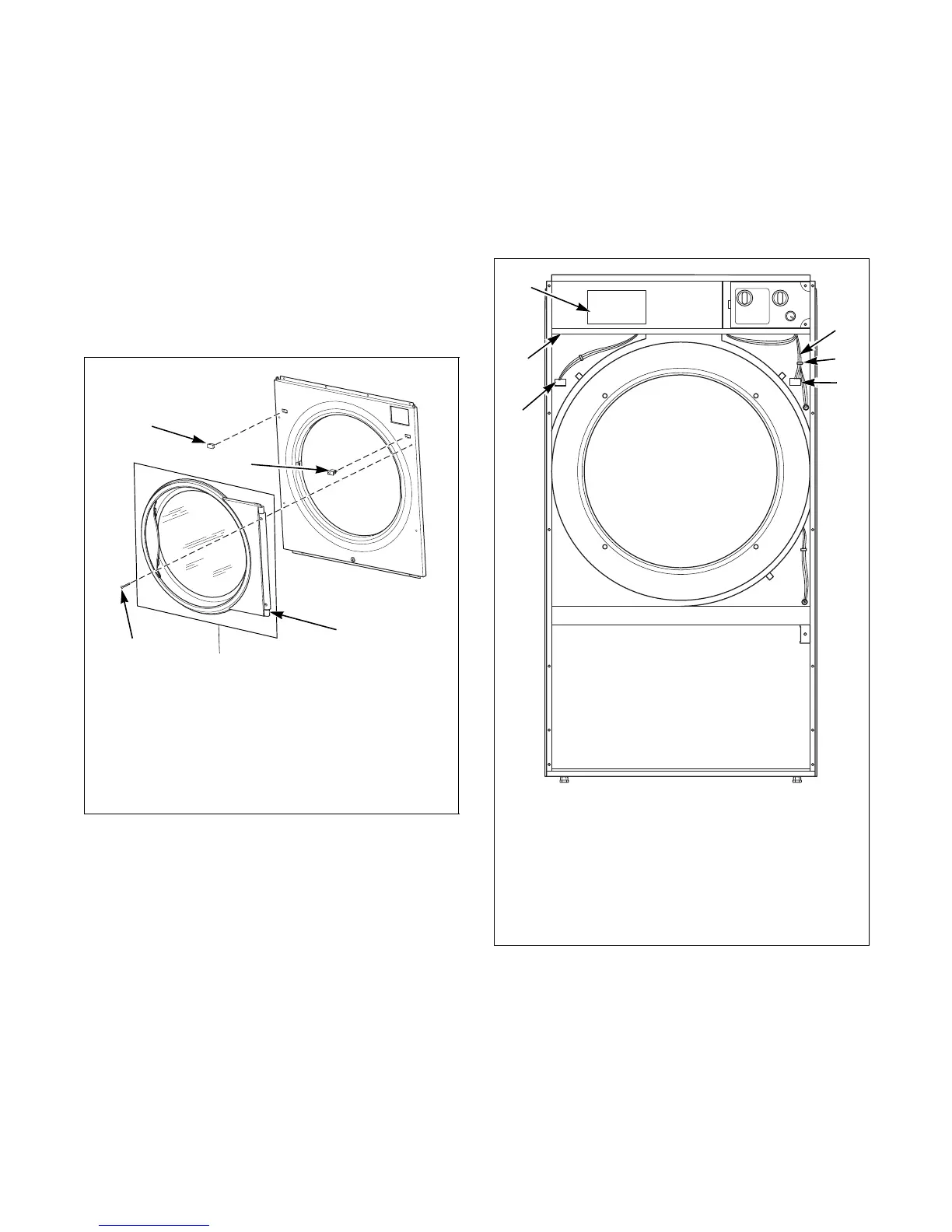

Figure 9
7. Cut wire ties to remove door switch harness
bundle. Be careful not to damage harness wires.
Refer to Figure 10.
8. Reroute door switch harness up through the hole
in the right side of the top panel. Use the panel
cutout opening to then put harness down through
the hole in the left side of the top panel and into
the upper left corner of the cylinder enclosure.
Figure 10
TMB2101N
1 Plug
2 Switch
3 Door Hinge Lug
4 Door Assembly
5 Side Screw
TMB2109N
1 Beginning Location of Door Switch Harness
2 Wire Ties
3 Original Switch Location
4 Panel Cutout
5 Top Panel
6 Original Plug Location
To Next Page
