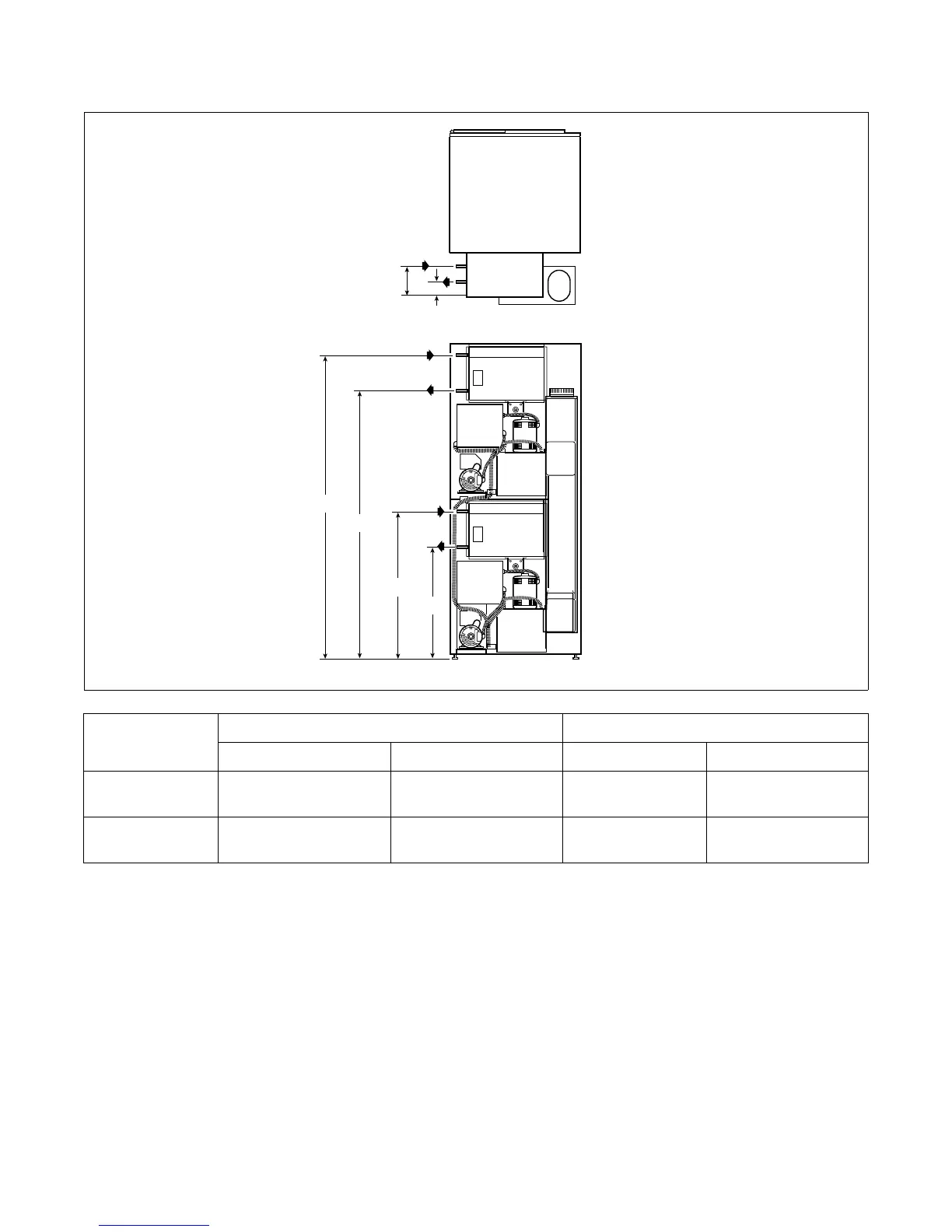

Steam Connection Locations – T30 Series
NOTE: All connections use 3/4 in. NPT pipe.
TMB1972N
Models
Inlet Outlet
ACBD
T30 Series
(Upper)
73.93 in.
(1,877 mm)
6.29 in.
(160 mm)
62.71 in.
(1,592 mm)
2.39 in.
(61 mm)
T30 Series
(Lower)
36.35 in.
(923 mm)
6.29 in.
(160 mm)
25.13 in.
(638 mm)
2.39 in.
(61 mm)
C
D
A
B
A
B
