Specifications and Dimensions
19
70458301ENR6

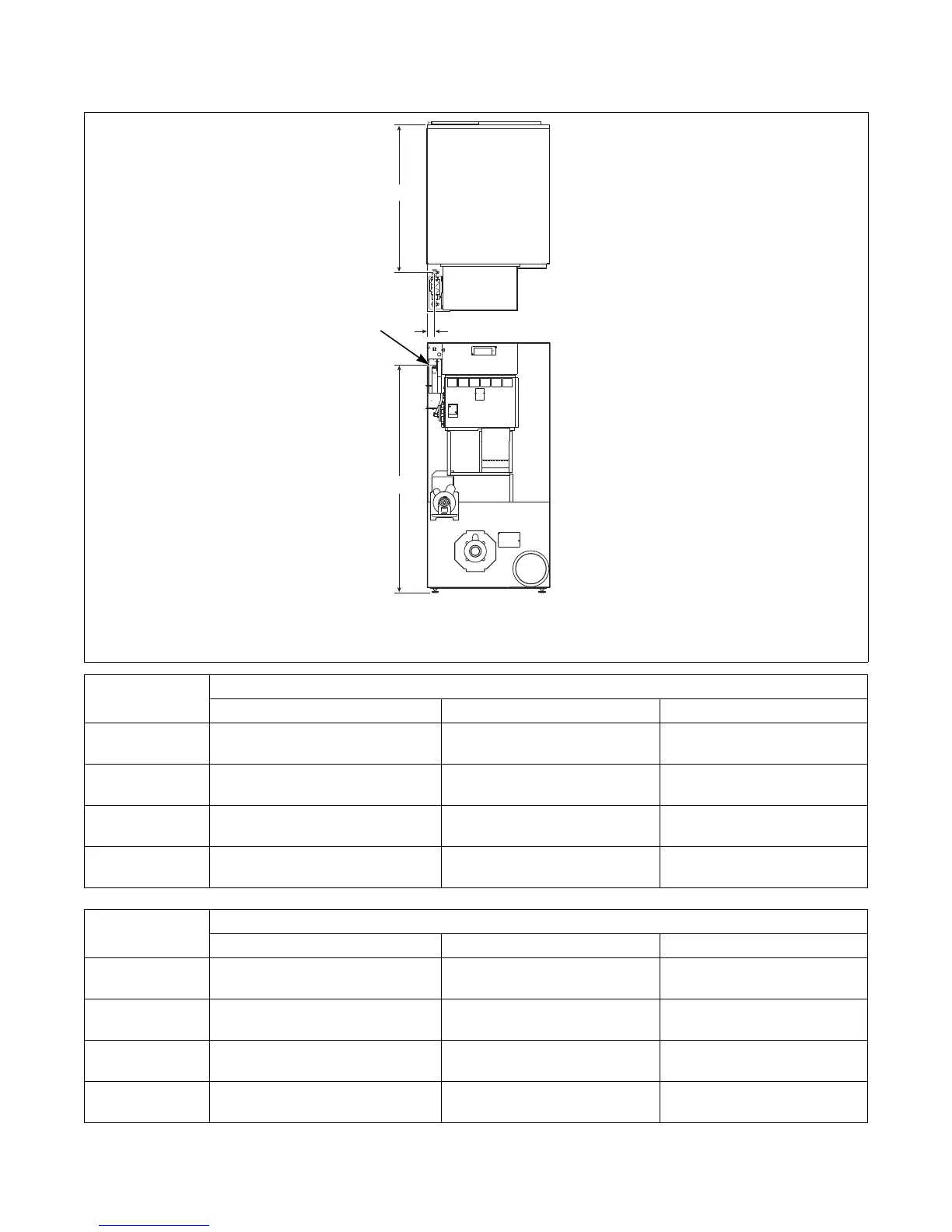

Gas Connection Locations – 025, 030, 035 and 055 Series
TMB2106N
1 1/2 in. NPT
B
C
A
1
Models
Gas Connection – CE and Australian Units
ABC
25 Series
59 in.
(1,500 mm)
1.5 in.
(38.1 mm)
29 in.
(737 mm)
30 Series
59 in.
(1,500 mm)
1.5 in.
(38.1 mm)
35 in.
(889 mm)
35 Series
59 in.
(1,500 mm)
2.5 in.
(64 mm)
35 in.
(889 mm)
55 Series
59 in.
(1,500 mm)
2.5 in.
(64 mm)
35 in.
(889 mm)
Models
Gas Connection – Non-CE and Non-Australian Units
ABC
25 Series
57 in.
(1,450 mm)
2.5 in.
(64 mm)
35.5 in.
(927 mm)
30 Series
57 in.
(1,450 mm)
2.5 in.
(64 mm)
43 in.
(1,092 mm)
35 Series
57 in.
(1,450 mm)
4 in.
(101.6 mm)
43 in.
(1,092 mm)
55 Series
55.285 in.
(1,404 mm)
1.621 in.
(41.17 mm)
46.75 in.
(1,187.45 mm)
