© Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT
Installation
70458301ENR6
26

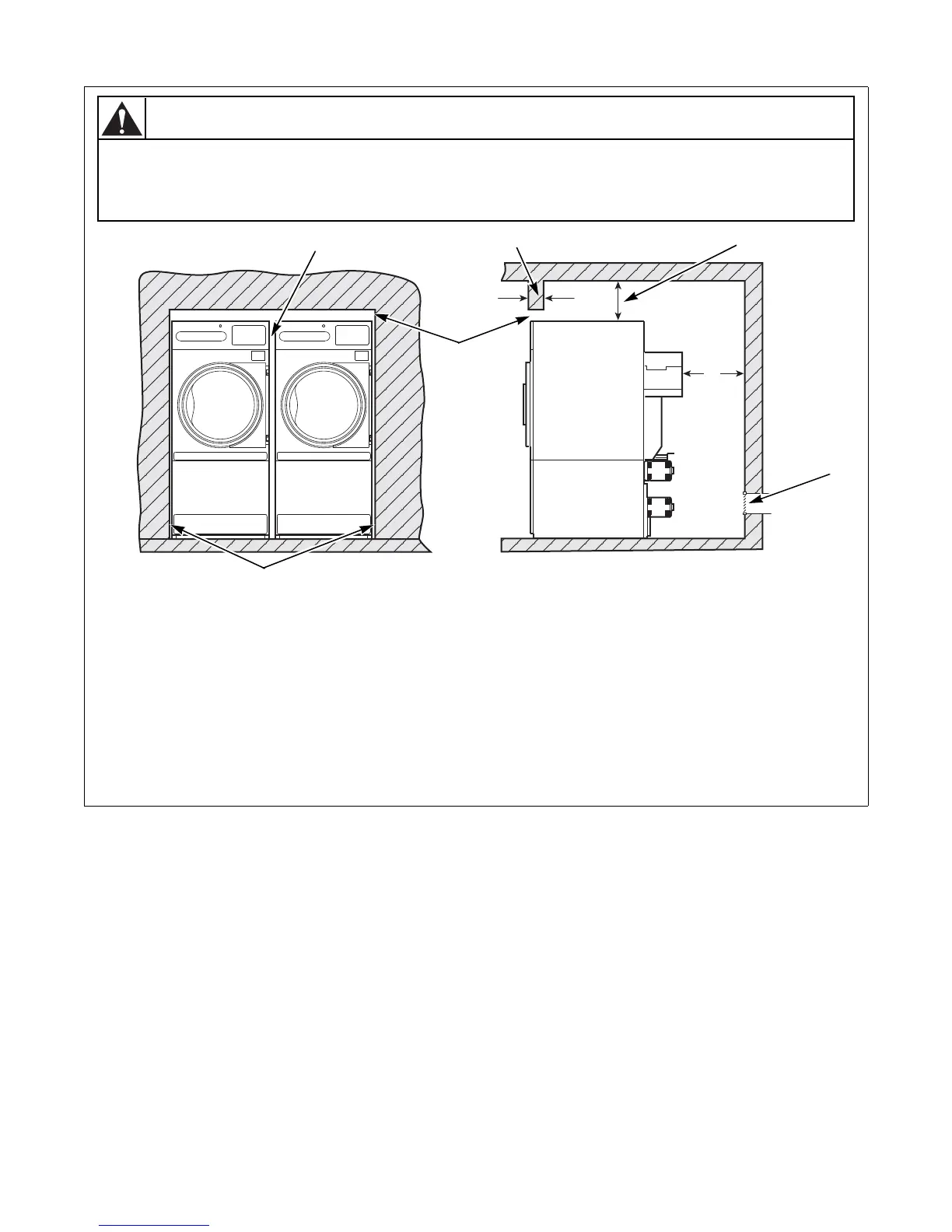

Figure 2
TMB2021N
NOTE: Shaded areas indicate adjacent structure.
1 0.5 in. (13 mm) recommended between machines for removal or installations.
2 Allow 2-4 in. (51-102 mm) opening at top of machine to aid in removal or installation. A removable trim piece
may be used to conceal the opening; zero clearance allowed for trim.
3 4 in. (102 mm) Maximum Header Thickness
4 12 in. (305 mm) Minimum Clearance
5 24 in. (610 mm) minimum, 36 in. (914 mm) recommended for maintenance purposes.
6 Provision for make-up air.
7 0.25 in. (6 mm) recommended for removal or installation purposes, zero clearance allowed.
1
7
2
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances, and/or local codes and
ordinances.
W770
WARNING
4
5
6
3
