© Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT
Exhaust Requirements
70458301ENR6
46

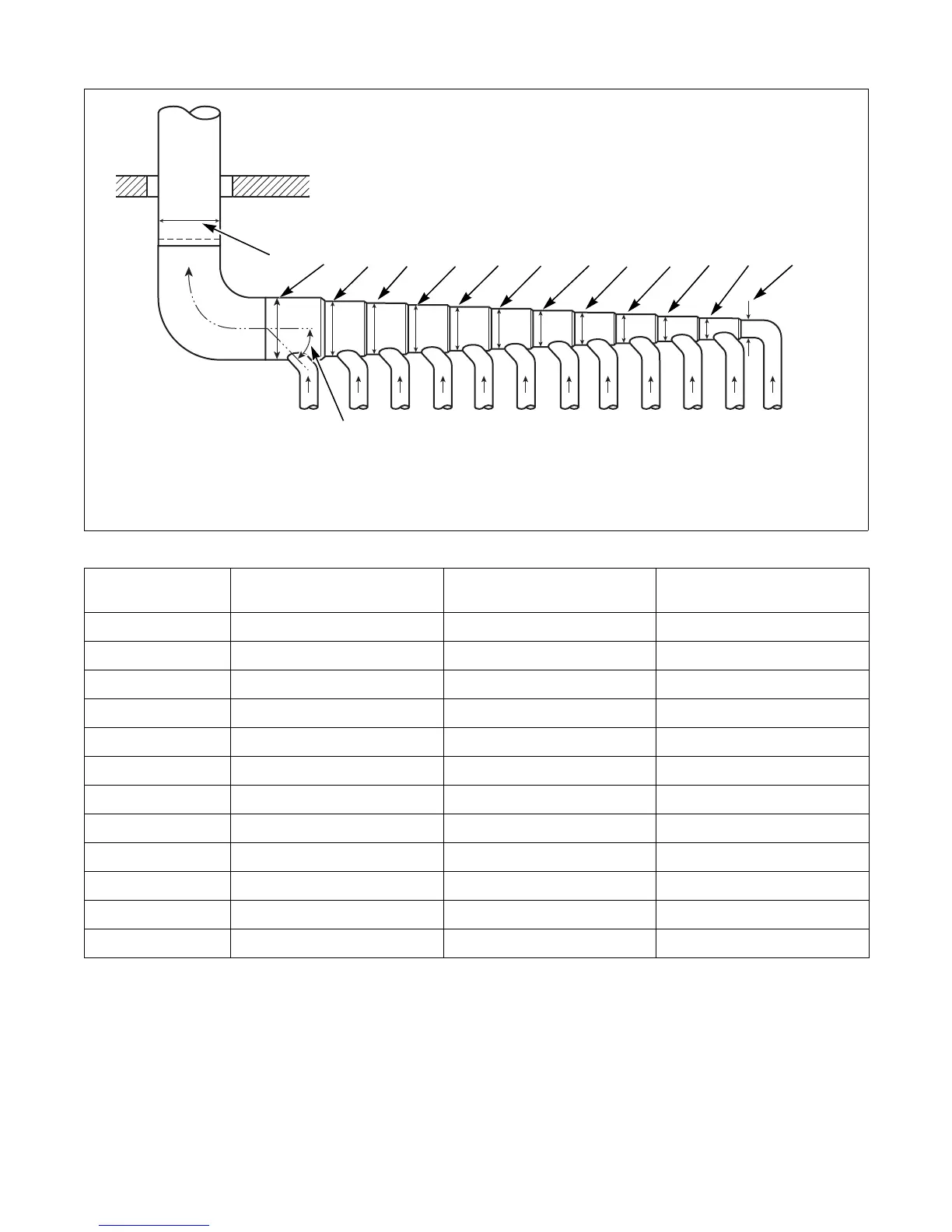

Figure 19
NOTE: Table 4 represents units with the same vent
size. If multiple vent sizes are used, consult a local
HVAC specialist.
NOTE: Duct clean-out recommended every 6 feet
(183 cm).
TMB2019N
1 Outlet duct diameter = largest duct diameter
based on number of units
2 45° typical
LKJ I HG F
E
DCB A
2
1
ONE MANIFOLD ASSEMBLY
Duct
Station
025 and 030 Series 035, 055 and T30 Series T45 Series
A
6 in. (152 mm) 8 in. (203 mm) 10 in. (254 mm)
B
10 in. (254 mm) 12 in. (305 mm) 15 in. (381 mm)
C
12 in. (305 mm) 15 in. (381 mm) 18 in. (457 mm)
D
14 in. (356 mm) 17 in. (432 mm) 21 in. (533 mm)
E
16 in. (406 mm) 19 in. (483 mm) 24 in. (610 mm)
F
18 in. (457 mm) 21 in. (533 mm) 26 in. (660 mm)
G
19 in. (483 mm) 23 in. (584 mm) 28 in. (711 mm)
H
20 in. (508 mm) 24 in. (610 mm) 30 in. (762 mm)
I
22 in. (559 mm) 26 in. (660 mm) 32 in. (813 mm)
J
23 in. (584 mm) 27 in. (686 mm) 33 in. (838 mm)
K
24 in. (610 mm) 28 in. (711 mm) 35 in. (889 mm)
L
25 in. (635 mm) 30 in. (762 mm) 36 in. (914 mm)
Table 4
