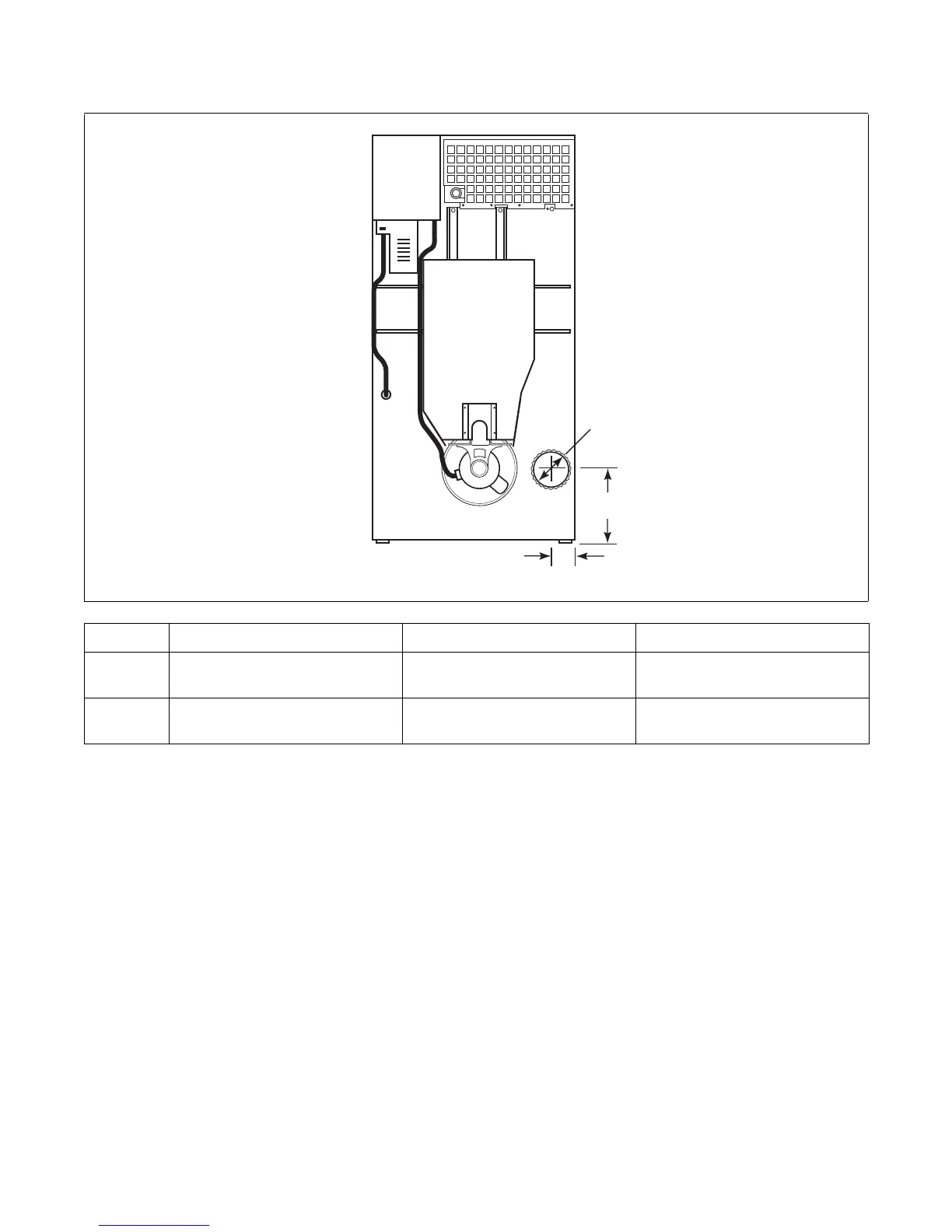

Exhaust Outlet Locations
TMB2238N
A
B
C
Models A B C
050/075
Series
5.375 in.
(137 mm)
8 in.
(203 mm)
13.375 in.
(340 mm)
F75
6.5 in.
(165 mm)
10 in.
(254 mm)
6.5 in.
(165 mm)
