© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
17
70457901ENR7

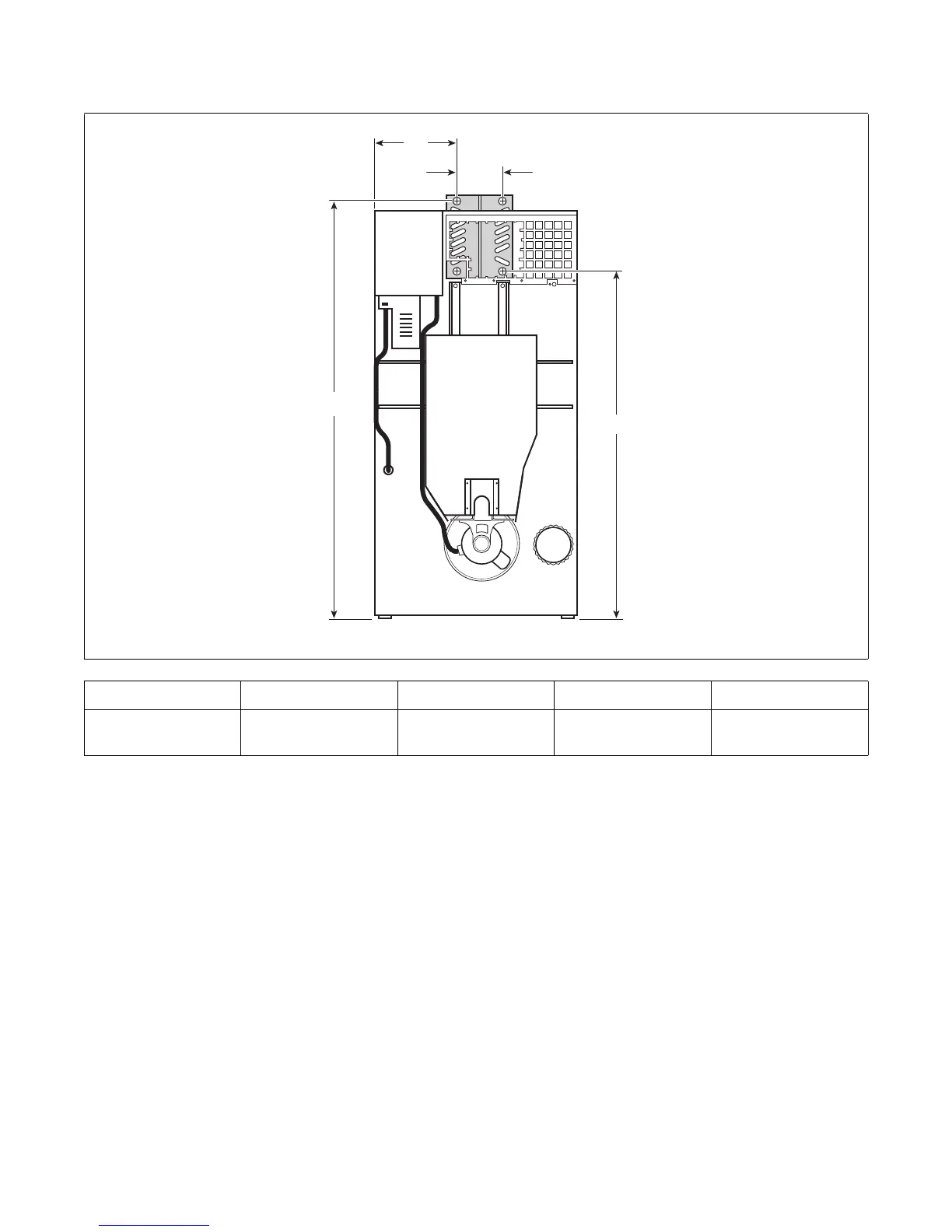

Steam Connection Locations
TMB2241N
C
A
B
D
DiameterABCD
3/4 in. NPT 15.25 in.
(387 mm)
77.625 in.
(1972 mm)
7.5 in.
(190 mm)
64.75 in.
(1645 mm)
