Electrical Requirements
47
70457901ENR7
Jumper Configuration Instructions
Changing the transformer configuration jumper is
required, PRIOR TO SUPPLYING POWER TO
THE MACHINE, if any of the following apply:
IMPORTANT: Failure to install the proper
configuration jumper may result in damage to
sensitive electronic controls and may void
warranty.
• Location voltage 200 – 208 Volt service and
connecting a model rated for 240 Volt operation.
Replace the 240 Volt jumper with the 208 Volt
jumper per the conversion label, located on the
rear of the tumble dryer, sign and date conversion
label to document the conversion.
Ferrite Ring Installation
Gas and Steam Models with OM and RM Control
Suffixes Only (Models Through 7/31/11)
The ferrite ring provided in the literature packet must
be installed over the power leads during connection of
electrical service. The ferrite protects the sensitive
electronic controls from destructive electrical
disturbances which may be present on power lines to
the machine. Failure to properly install the ferrite ring
may result in damage to the electronic controls and
will void control warranty.
To install:
1. Immediately after connection of power leads and
before applying power to machine, locate each of
the incoming service leads including ground.
2. Snap the ferrite ring closed over all the service
leads inside of the contactor box as shown. It is
important that the ferrite ring be installed inside
the contactor box. Refer to Figure 25. Do not
install the ferrite outside of the box or other area.
Make sure that service leads are in the center of
the ferrite before closing the ring so as not to
pinch or damage leads.

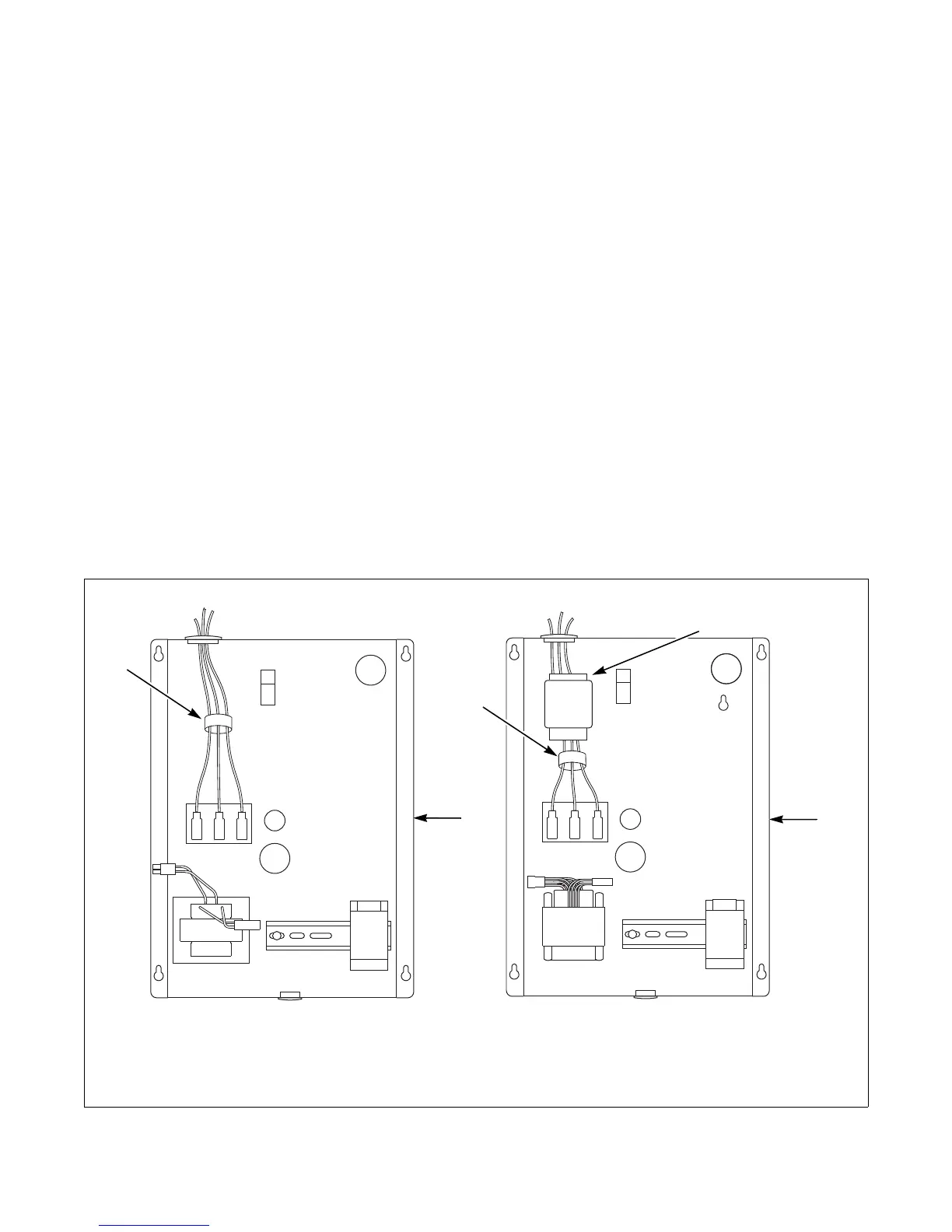

Figure 25
TMB2270N TMB2271N
1 Ferrite Ring 3 Models Through 7/31/11
2 Junction Box
1
2
1
2
Non-CE Models CE Models
3
