ALLIANCE CA050L User Manual

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
23
70457901ENR7
Bolt-On Angle Option
050 Series Tumble Dryers Only
This option allows the tumble dryer depth to be
reduced to 34 5/16 inches (871 mm). The tumble dryer
should then fit through a 36 inch (914 mm) door
opening (actual 34.5 inches [876 mm]).
1. Remove the loading door, access panel, front
panel and lint panel. Refer to Figure 7.

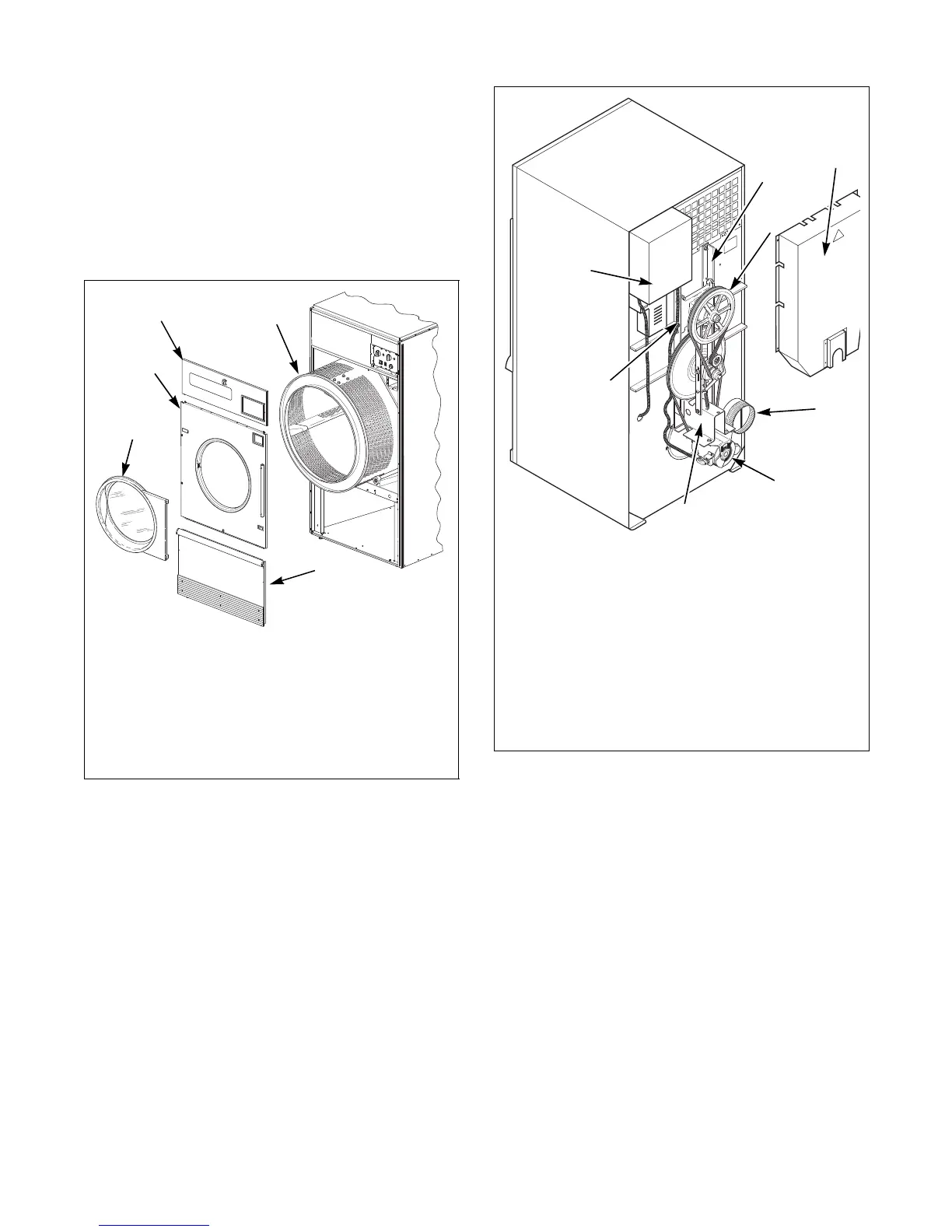

Figure 7
Figure 8
2. Remove the drive guard. Refer to Figure 8.
3. Remove the drive belts. Refer to Figure 8.
4. Remove the cylinder pulley and shaft key.
5. Pull the cylinder out through the front of the
tumble dryer. Refer to Figure 7.
6. To ensure proper cylinder balance for
reassembly, mark each channel’s original
location on cylinder head and number of shims
for each channel before removal. Refer to
Figure 9.
7. Remove the complete idler assembly.
8. Remove the trunnion housing. Refer to Figure 8.
9. Disconnect the motor harness(es).
TMB2014K
1 Loading Door
2 Front Panel
3 Access Panel
4 Cylinder
5 Lint Panel
TMB2014K
1
2
3
4
5
TMB2243N
1 Trunnion Housing
2 Junction/Contactor Box
3 Vertical Trunnion Channel
4 Cylinder Pulley
5 Drive Guard
6 Exhaust Thimble
7 Motor
8 Motor Bracket
TMB2243N
1
2
3
4
5
6
7
8
