Steam Requirements
53
70457901ENR7

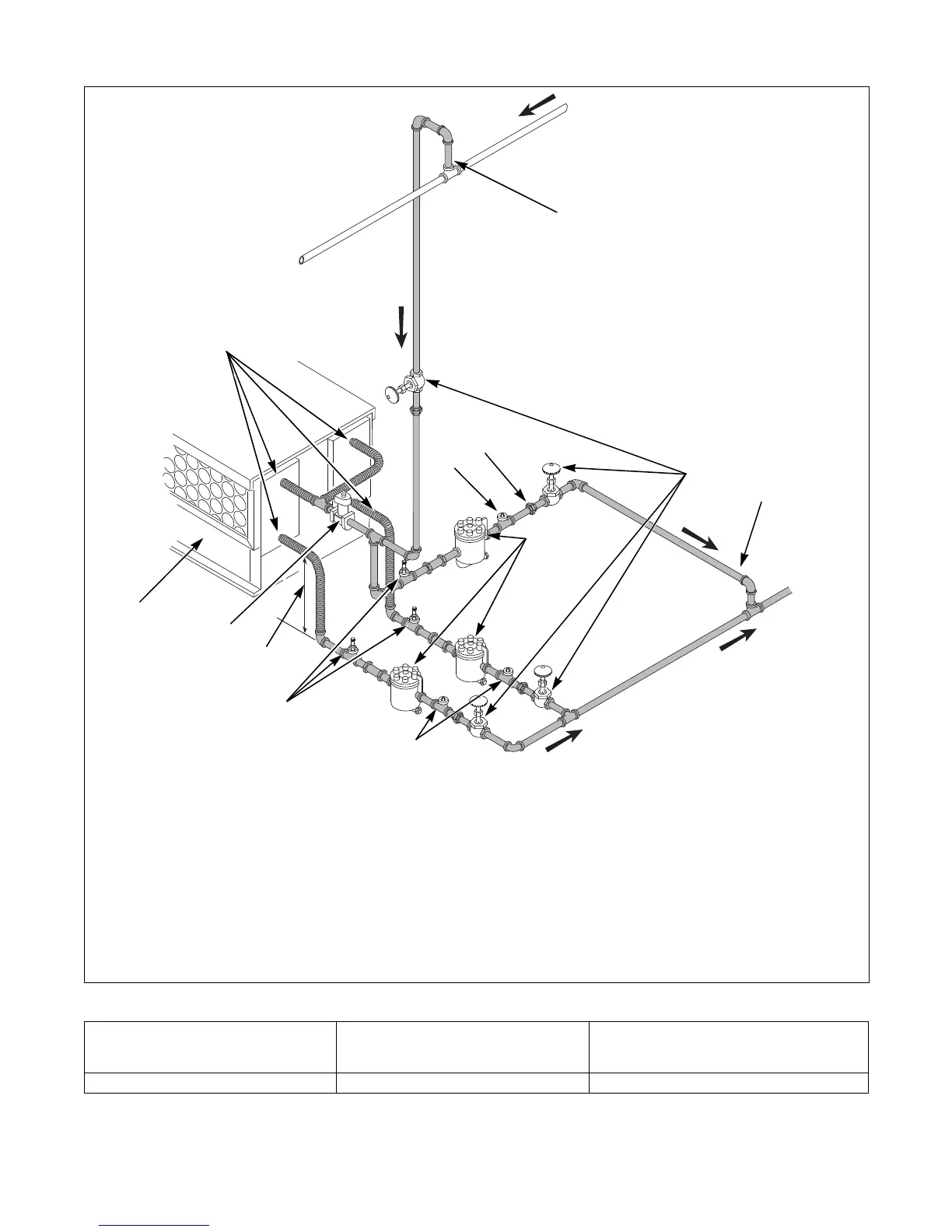

Figure 26
Tab le 11
TMB2014N
NOTE: Refer to Table 11 for sizing of steam lines. Piping must also be sized accordingly for length of runs,
and number of elbows.
1 Supply 8 18 in. (457 mm) Drop
2 12 in. (305 mm) Riser 9 Solenoid Valve (Supplied with machine)
3 Shut-Off Valve 10 Steam Bonnet
4 Condensate Return Line from Supply Line 11 Flexible Line
5 Return 12 Union
6 Check Valve 13 Trap with Built-In Strainer
7 Vacuum Breaker (Optional)
Steam Pressure PSI (bar)
Minimum
Supply Pipe Diameter
Steam Trap Size*
Pounds Condensate/Hour
(Kilograms Condensate/Hour)
80-100 (5.3-6.9) 3/4 in. NPT 160 (72.6)
*Based on 6.9 bar.
