NeXGen Gilbarco/Bennett - Installation and Start Up Guide
Copyright 2018 by Allied Electronics, Inc.
October 18, 2018 Page
2-7

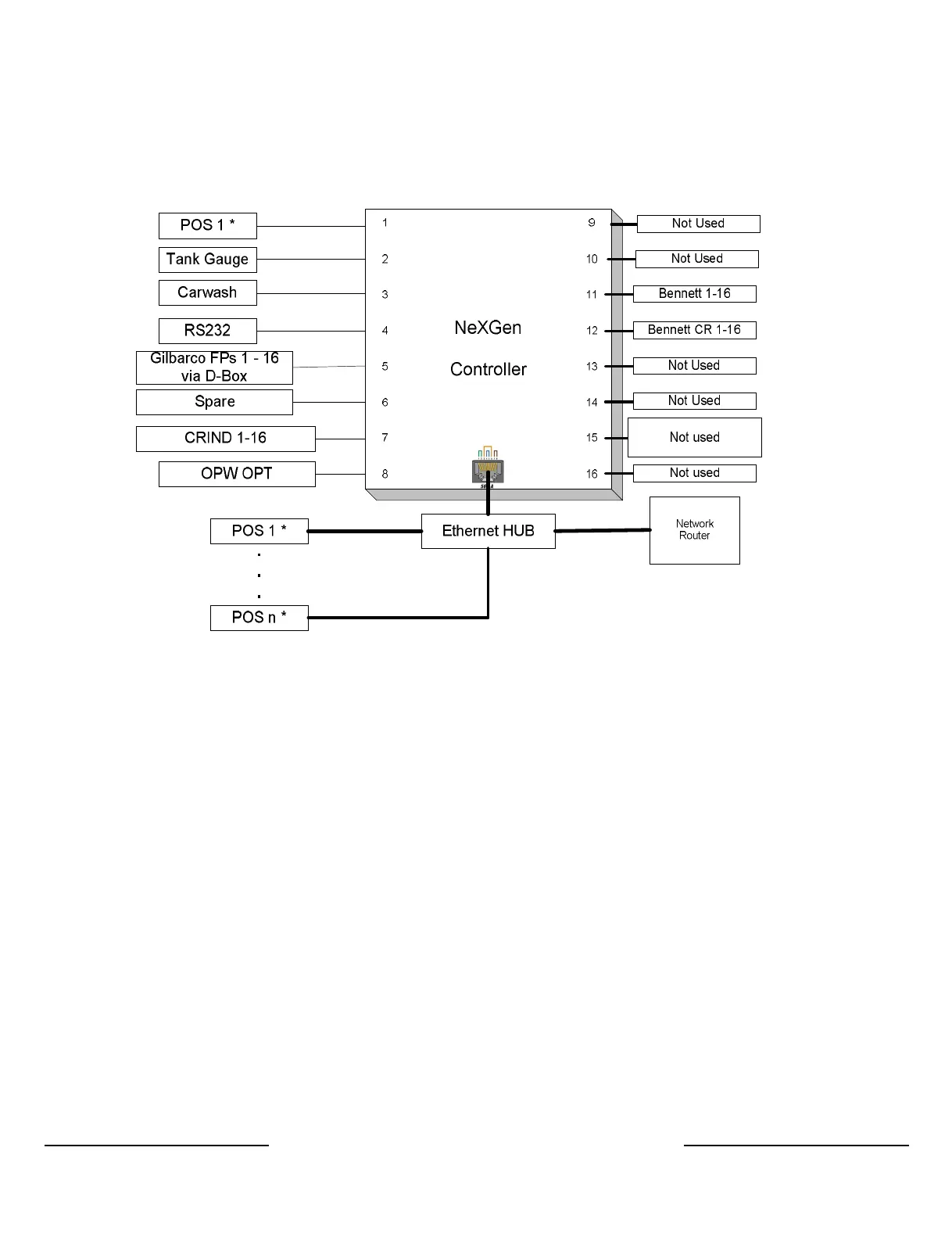

2.2 Configuration Diagram
2.2.1 NeXGen to Gilbarco/Bennett
This figure describes the NeXGen to Gilbarco/Bennett system installation with the OPT and the IPT.
* Note: denotes alternative POS connectivity options (RS232 vs. Ethernet)
Communication Ports
CH 1- POS
…………..
On board RS-232 port
CH 2- Tank Gauge (Optional)
…………..
On board RS-232 port
CH 3- Carwash (Optional)
…………..
On board RS-232 port
CH 4- RS232 supported devices
…………..
On board RS-232 port (Debit)
CH 5- Dispenser - Gilbarco
…………..
2-wire20/30/45 mA current loop port
CH 6- Dispenser (Optional)
…………..
2-wire20/30/45 mA current loop port
CH 7- CRIND - Gilbarco
…………..
2-wire20/30/45 mA current loop port
CH 8- RS485 Supported devices
…………..
4 Port RS485 port (OPWOPT)
CH 9- Not used
…………..
12V serial interface port
CH 10- Not used
…………..
12V serial interface port
CH 11- Dispenser - Bennett
…………..
3-wire RS485 port
CH 12- Card reader –
Bennett/Verifone
…………..
3-wire RS485 port
CH 13- TBD (Optional)
…………..
Configurable Serial Port if present
CH 14- TBD (Optional)
…………..
Configurable Serial Port if present
CH 15- TBD (Optional)
…………..
Configurable Serial Port if present
CH 16- TBD (Optional)
…………..
Configurable Serial Port if present
ETHERNET
…………..
Network and POS
Note: Contact Technical Support for available options
