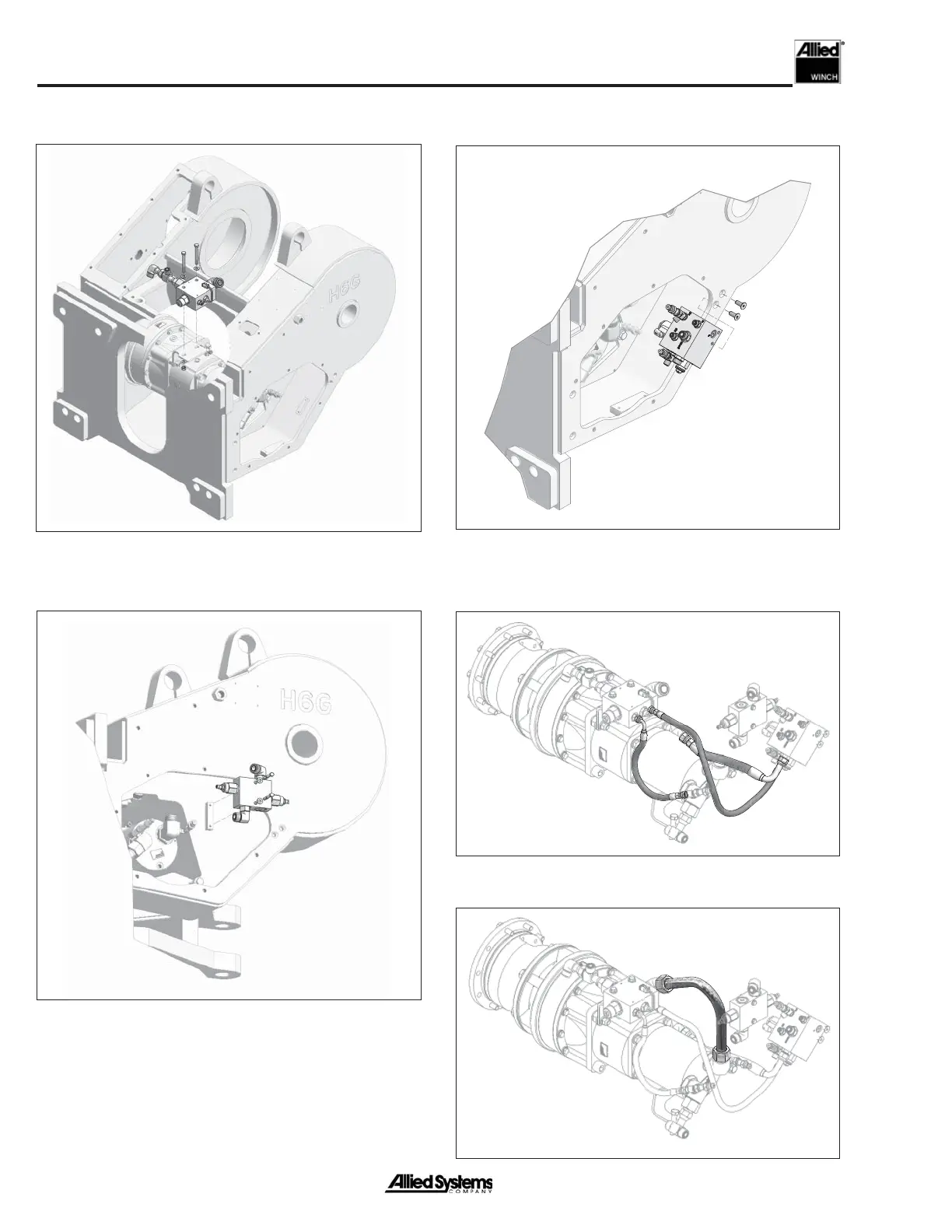

Repairs
4 - 42
1. Install the counterbalance valve manifold.
2. Install the cross port relief manifold.
3. Install the control manifold.
4. Connect the hoses between the control manifold and
counterbalance valve manifold.
5. Install tube assembly at Port A on the motor.
- Hydraulic System Assembly, Rescue Winch
