Repairs
4 - 52

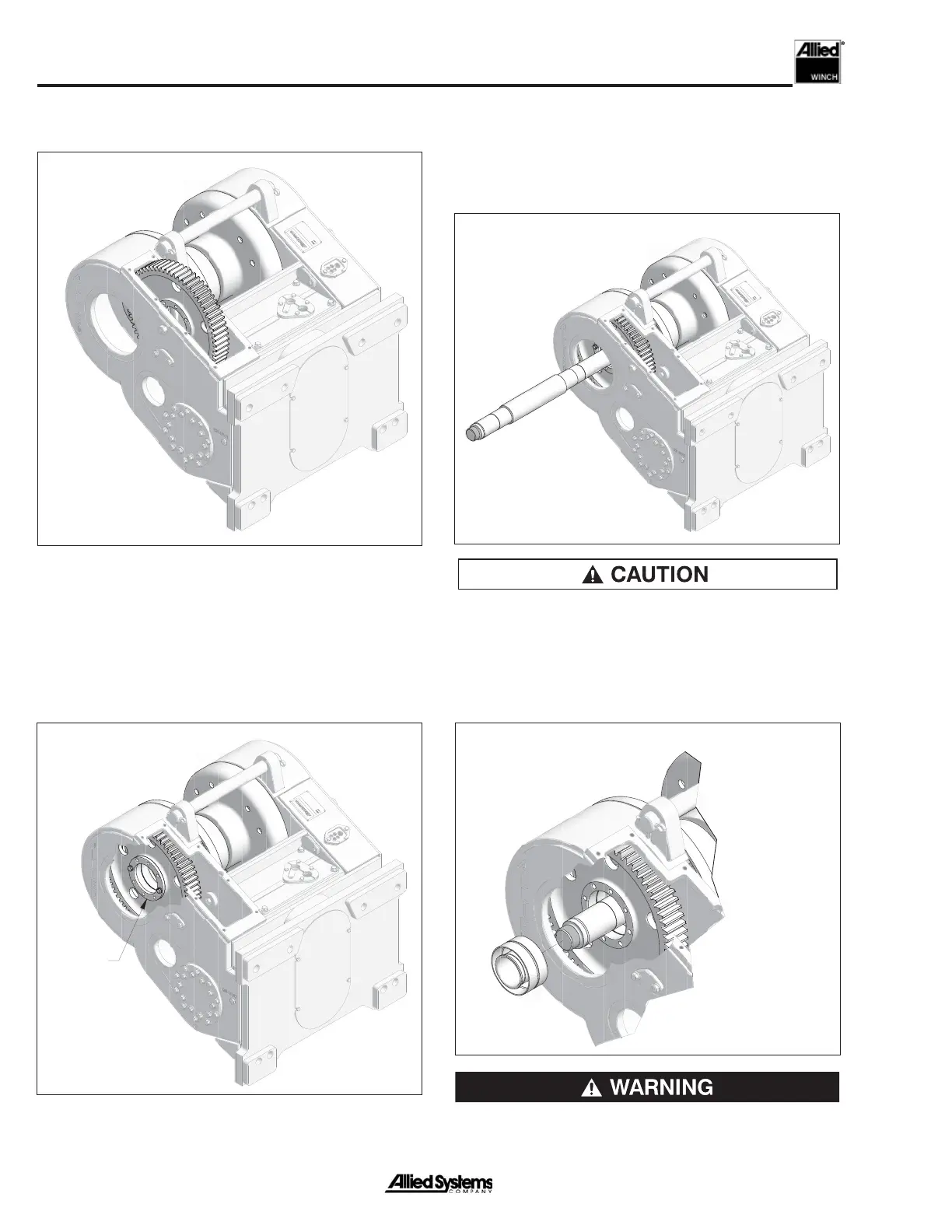

9. Install drum gear.
10. Align drum gear with adapter and temporarily secure
the drum gear to the adapter, using the retainer plate
and two capscrews. This will ensure that the gear will
not fall during installation of the shaft.
11. Make sure that double-tapered roller bearing, seal
and spacer are properly seated in the left-hand side
of the drum. Then install the shaft until it bottoms
solidly against the left hand tapered roller bearing.
Tighten left hand nut.
Do not hammer on drum shaft surface.
12. Remove the retainer plate and install the bearing
assembly.
Retainer
Plate
Note: Part of frame
shown removed for clarity
Note: Part of
frame shown
removed for
clarity
- Drum & Drum Shaft Installation
Make sure the drum gear does not fall off the
adapter.
