Section 4
4 - 3
Intermediate and FREESPOOL Shaft Re-
moval
The intermediate and FREESPOOL shafts can be re-
moved with the winch mounted on the tractor.

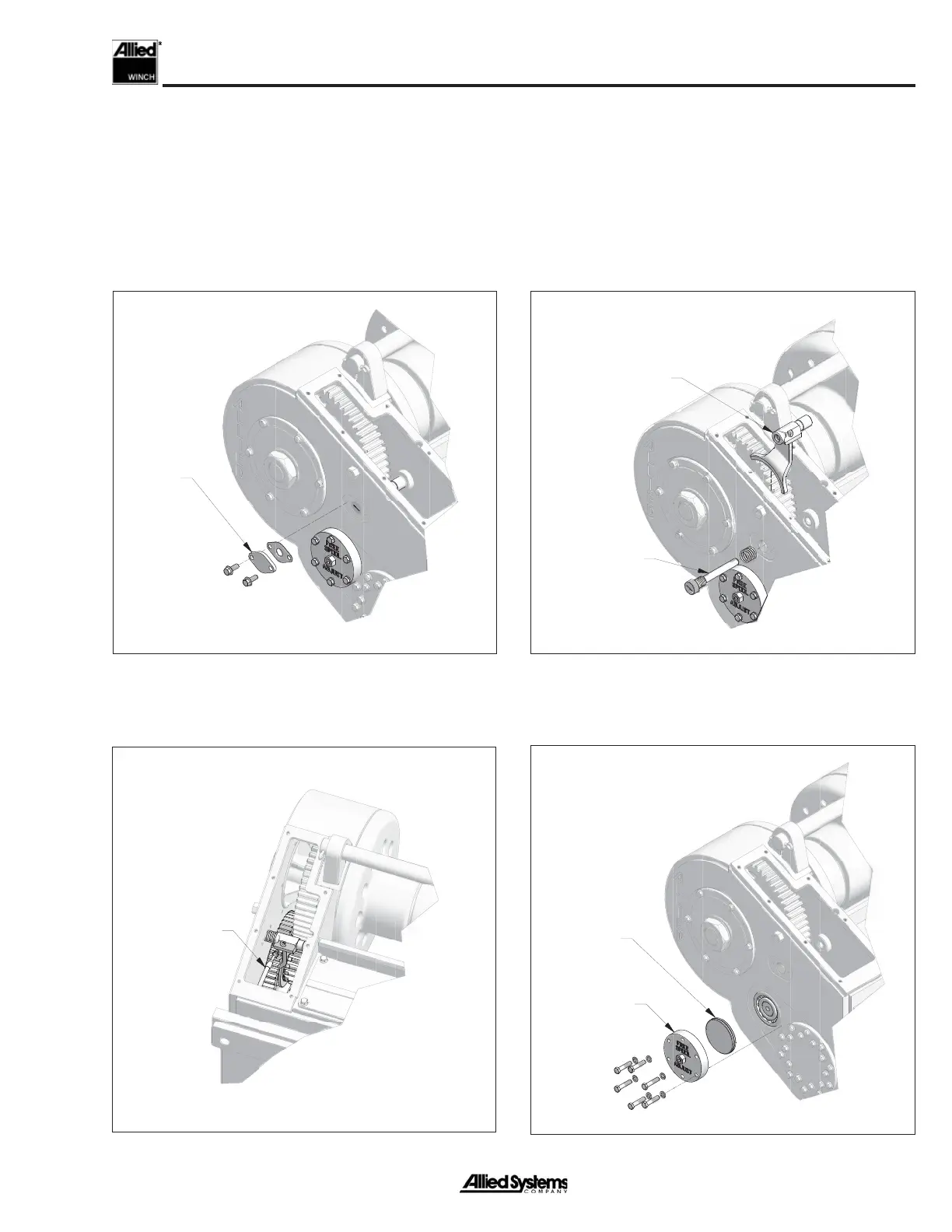

1. Remove the capscrews securing the shifter shaft
cover and take the cover off.
2. Disconnect the hose assembly.
3. Withdraw the shaft by rotating counter clockwise and
remove the fork.
4. Remove the intermediate shaft cover and
FREESPOOL piston.
Shifter
Shaft
Cover
Hose
Assembly
Freespool
Shaft
Freespool
Fork
Intermediate
Shaft Cover
Freespool
Piston
