Repairs
4 - 16

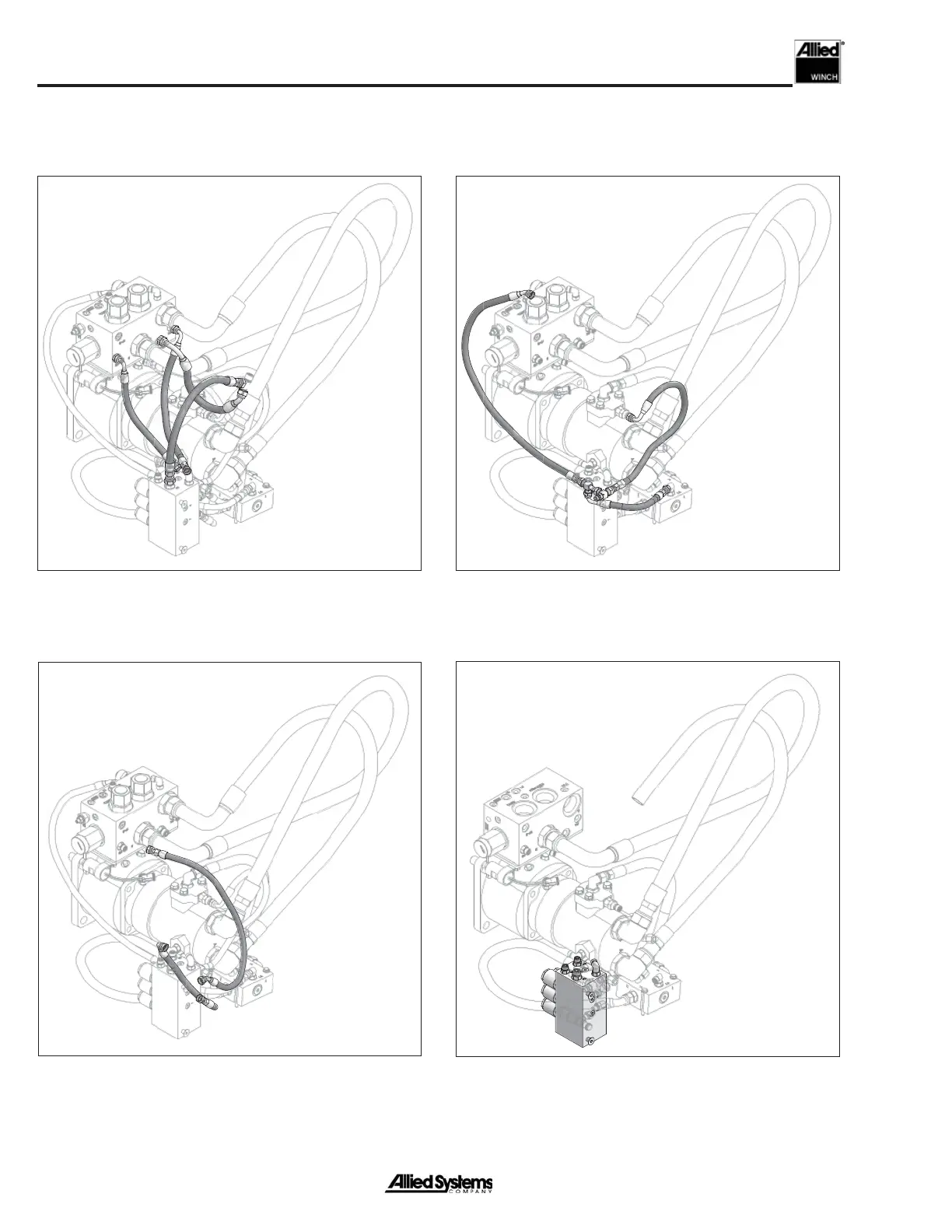

5. Remove the four hoses connecting the directional
manifold to the logic manifold.
6. Remove the two hoses connecting the logic manifold
to the motor and brake.
7. Remove the three hoses off the DV port on the logic
manifold.
8. Remove the logic manifold.
- Hydraulic System Disassembly, Hi-PRFM Winch
