Allied Systems Allied H6G Series User Manual

Section 4
4 - 17

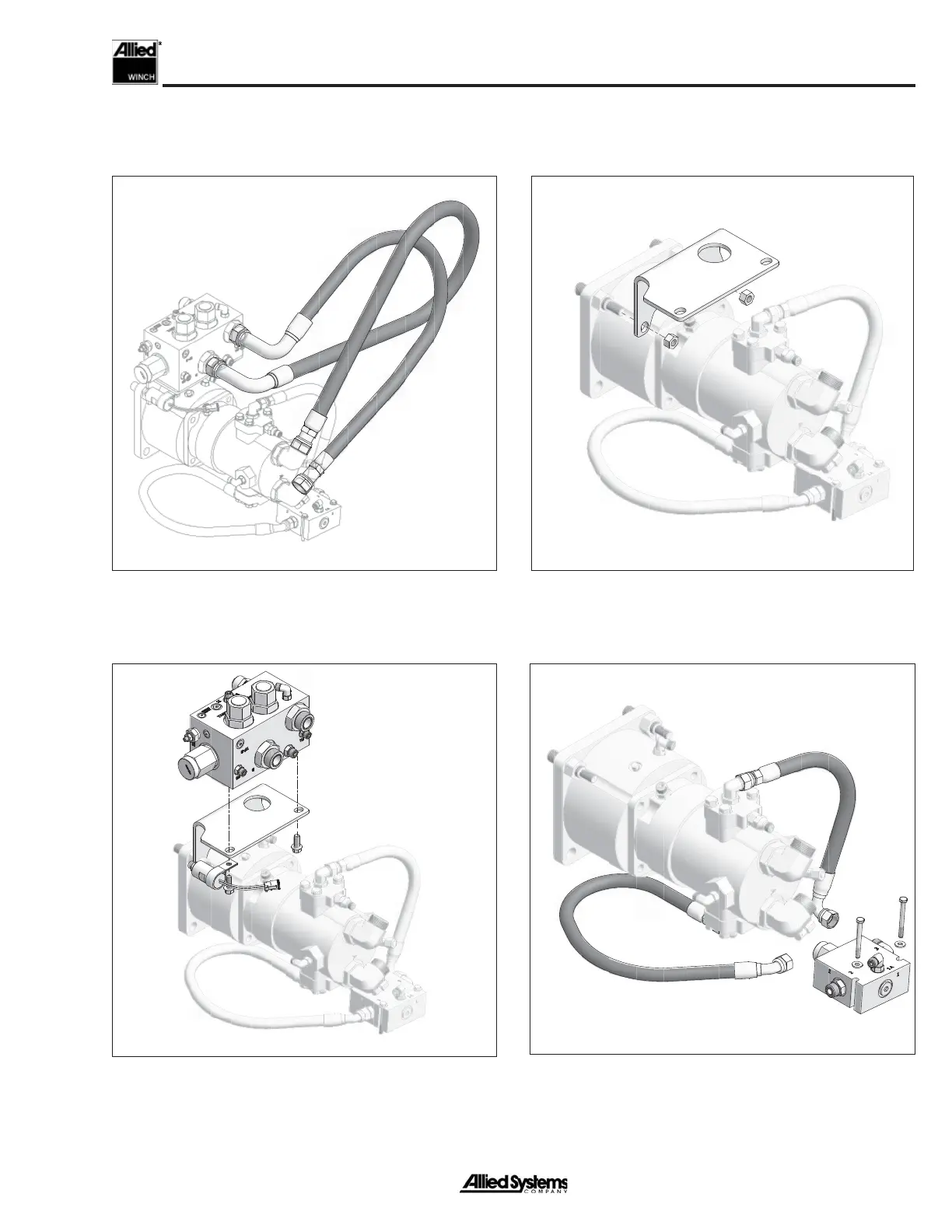

10. Remove the directional manifold assembly.
11. Remove the directional manifold bracket from the
motor.
12. Remove the brake-off manifold assembly from
frame.
9. Remove the hoses between the high-pressure A
and B ports on the motor and the direction manifold
assembly.
NOTE: Port A and Port B brake-off hoses can
remain on motor during motor shaft removal
procedures.
