Repairs
4 - 36

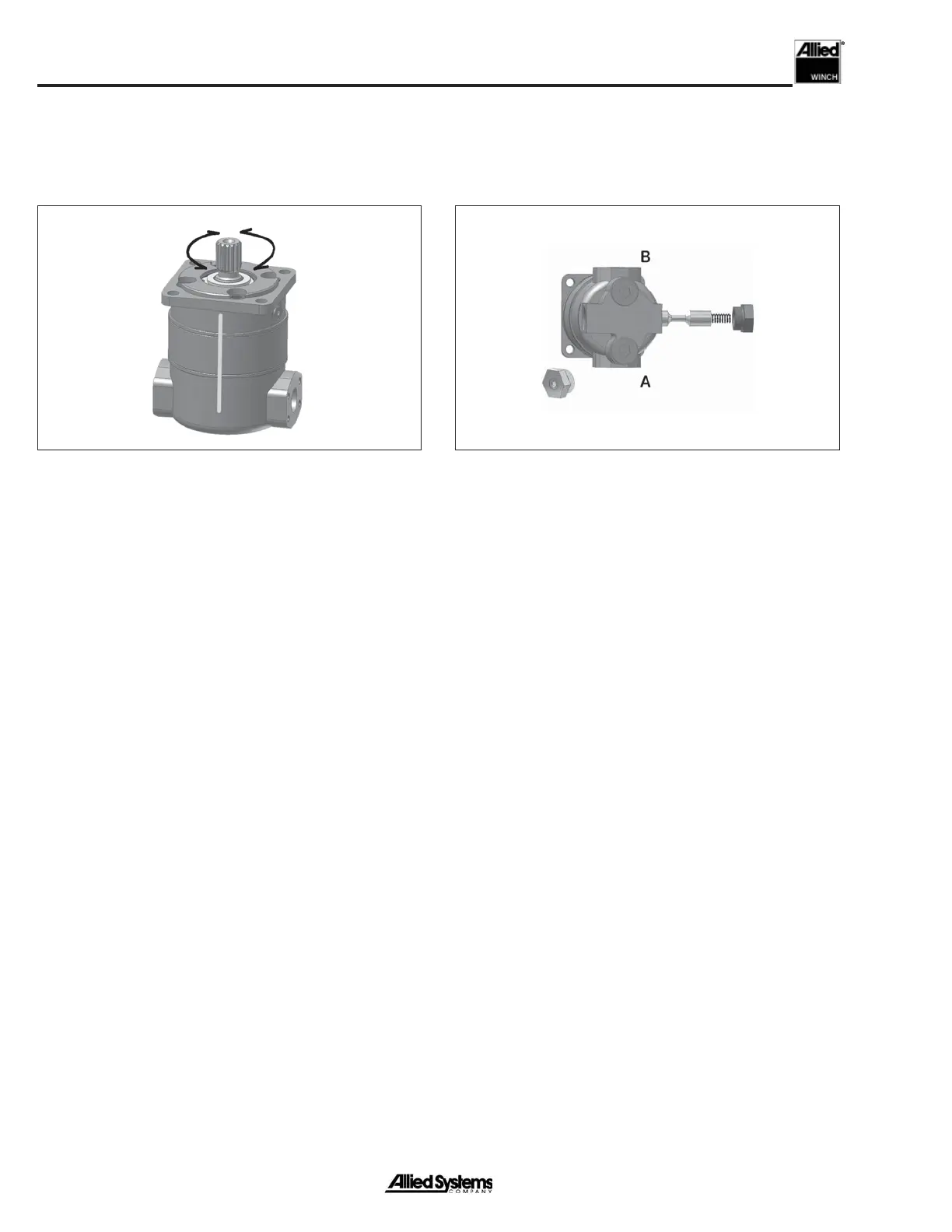

12. Rotate shaft in both directions to assure that the shaft
turns smoothly. Torque motor to 190 ft. lbs. Rotate
shaft again in both directions to assure that the shaft
turns smoothly.
13. Reassemble the spool assembly. Ensure spool,
spring and plug are oriented as shown for high-per-
formance winches.
- Motor Assembly
