Allied Systems Allied H6G Series User Manual

Section 4
4 - 37
Motor Shaft Assembly and Installation
Assembly and installation of the motor shaft assembly can
be accomplished while the winch is mounted on the tractor.
The motor and brake can be installed independently of
other components (other than various hoses and fi ttings),
but taking out the planetary reducer and reducer housing
must be installed before the Freespool Shifter Fork and
Intermediate Shaft and Gear (see Intermediate Shaft
Installation section).

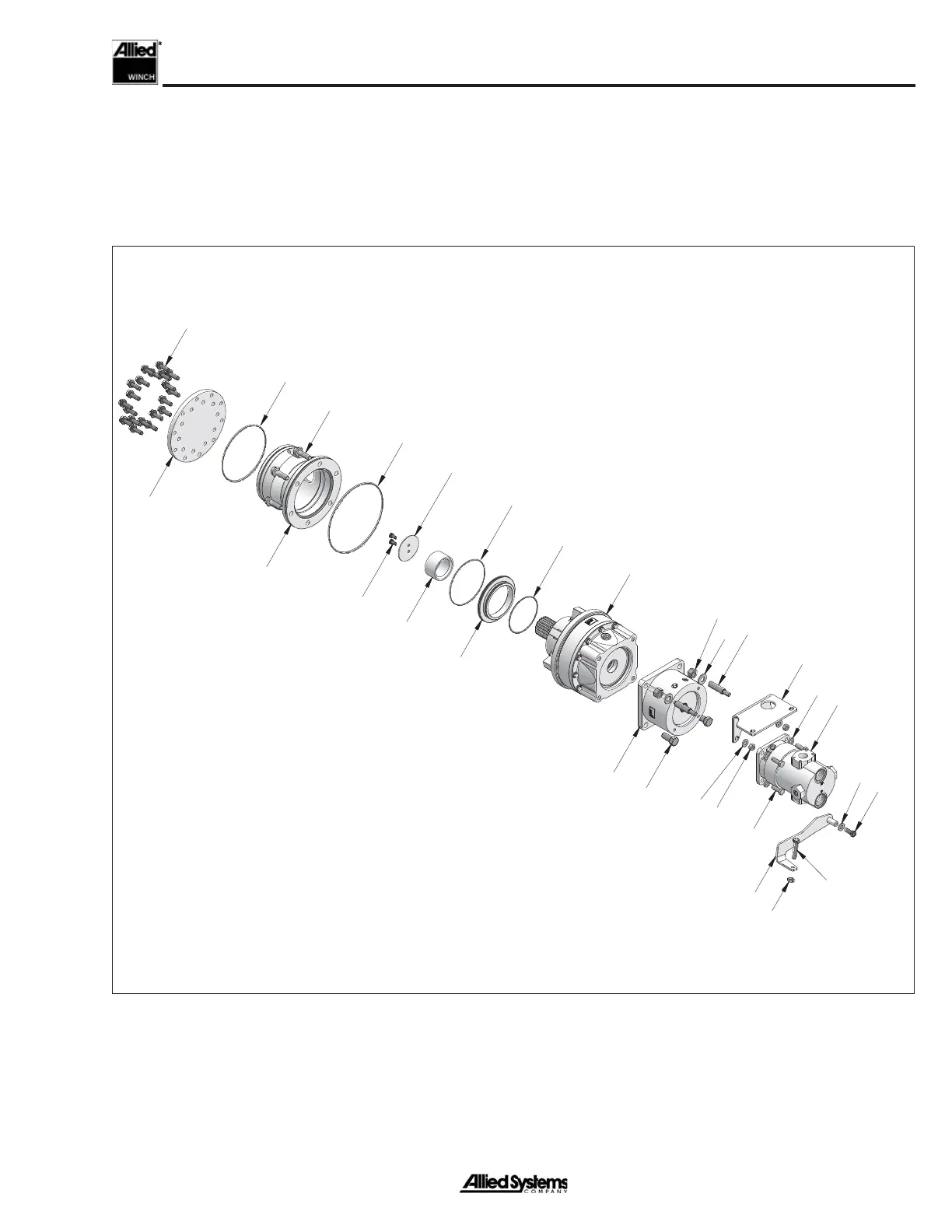

Figure 4-11 Motor Shaft Components
20
17
16
14
9
21
6
5
4
12
10
11
3
29
8
32
26
30
2
15
1
15
23
34
24
22
15
33
19
1. Motor
2. Manifold Bracket
3. Planetary Reducer
4. Spacer
5. Gear Retainer
6. Capscrew
8. Capscrew
9. Reducer Mounting
10. Seal Ring
11. O-ring
12. O-Ring
14. Flangescrew
15. Washer
16. Motor Shaft Mounting Plate
17. Flangescrew
19. Capscrew
20. O-Ring
21. O-Ring
22. Bracket
23. Capscrew
24. Nut
26. Washer
29. Brake
30. Stud
32. Nut
33. Nut
34. Capscrew
