Chock baler wheels to prevent baler from mov-
ing and make sure baler and tractor are both
turned off and all moving parts have come to a
complete stop before starting any maintenance.
Contact with moving equipment can cause seri-
ous injury or death.
Use Mobilube HD Plus 80W-90 Gear Oil, Allied P/N
235720.
Check oil level daily:
With the baler sitting level, remove the fill/check plug. Oil
should be level with the bottom of the opening (see Fig-
ure 2.) Add oil as necessary through the same opening.
Replace plug and tighten securely.
Change oil after first 50 hours, then every 250 hours:
1. Place a catch pan beneath the gearbox, under the
drain plug.
2. Remove the drain plug from the bottom of the gear-
box (see Figure 2) and let oil drain into catch pan.
3. Replace the drain plug.
4. Add new oil through the fill/check plug opening until
the oil is level with the bottom of the opening (see
Figure 2.) Replace plug and tighten securely.
5. Dispose of used oil in accordance with local regula-
tions.
Check Bolts on Crank Arm Every 3 months/125
hours/25,000 bales, whichever comes first
(see Figure 1).
1. Torque the
four (4)
retaining cap
bolts to
340 ft-lbs.
2. Torque the
one (1)
clamp bolt
to 750-755
ft-lbs.
Maintenance
Fill/Check Plug
Drain Plug

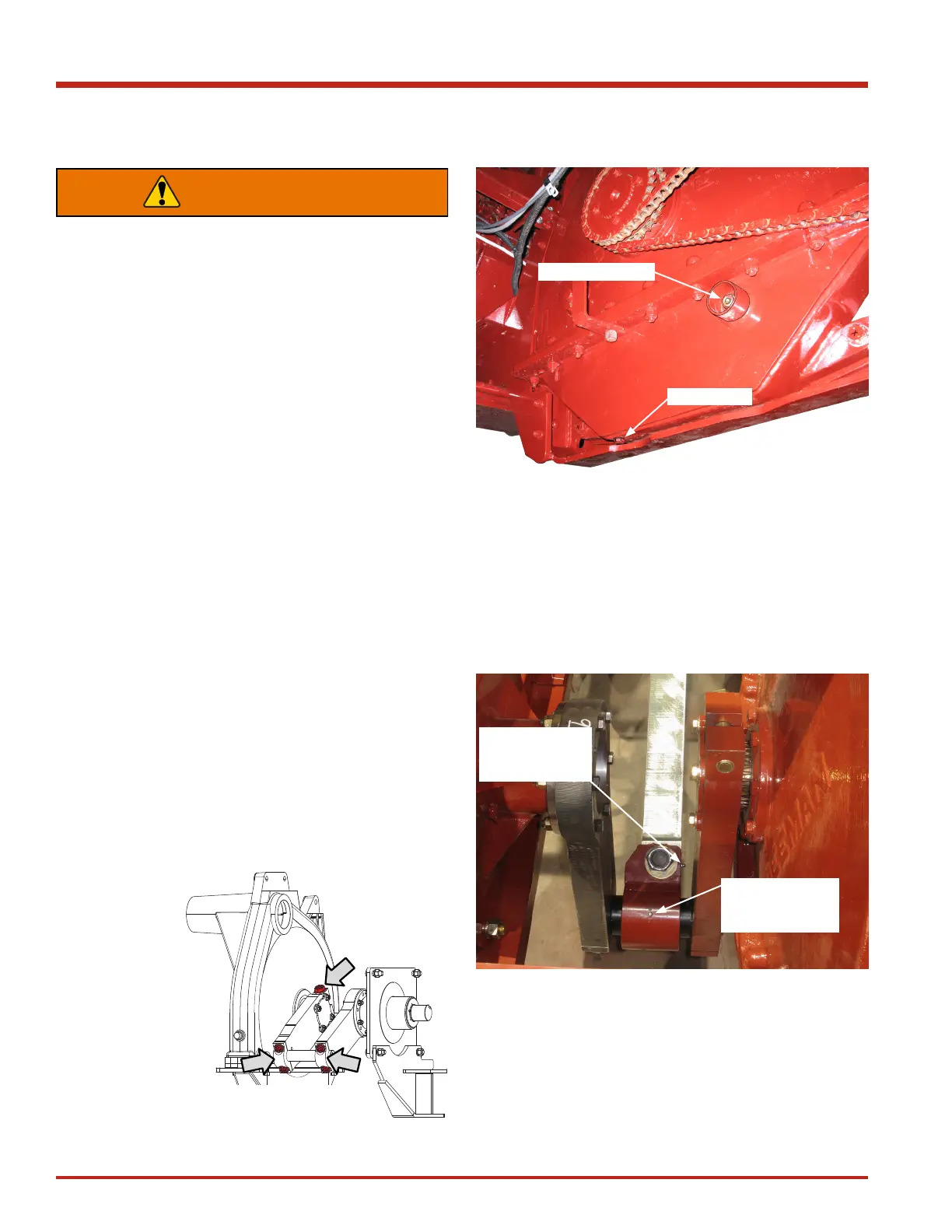

Figure 2 - Gearbox
Connecting Rod/Crank Arm:
Grease the connecting rod bushing daily until you just
see grease emerging from around the bushing (see
Figure 3).
Grease the gearbox crank arm bearings at the beginning
of every season, and then every 50 hours (see Figure 3).
Figure 3 - Gearbox Lubrication (Top View)
Gearbox Crank
Arm Bearing
Grease Fitting
Connecting
Rod Bushing
Grease Fitting
4 Retaining Cap Bolts
340 Ft-Lbs
1 Clamp Bolt
750-755 Ft-Lbs
Figure 1 - Crank Arm Torque
10
89-096 Rev: 11-2016
To Next Page
