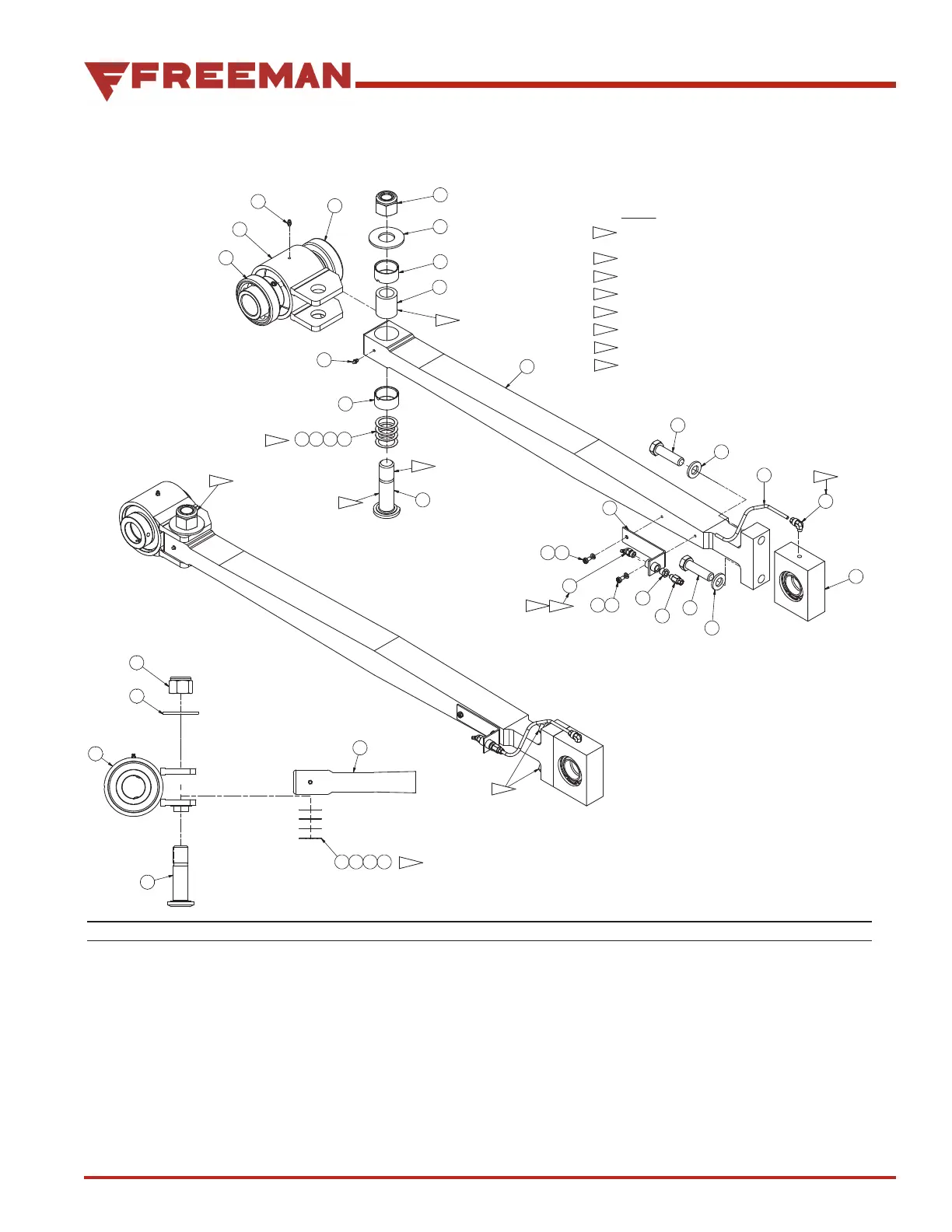

Connecting Rod Assy, Gearbox Baler, 15/16” 3-Tie
Page 1 of 1
Connecting Rod Assy, Gearbox Baler, 15/16” 3-Tie
Item Part No. Qty Description Item Part No. Qty Description
904474 Connecting Rod Assembly
1 F000000778 1 . Tube Connector
2 F000007651 1 . Grease Fitting
4 F000008077 2 . Bearing, Inner Race
5 F000008078 1 . Connecting Rod Bushing
6 F000008100 2 . Bearing
7 903615 1 . Mount, Conn Rod Brg
8 F000008263 1 . Bracket
9 PIN0008670 1 . Connecting Rod Pivot Pin
10 HSN0238330 1 . Plunger Bearing Housing W/ Brgs
12 903235 1 . Plate, Conn Rod
13 903268 1 . Tube
14 221659W 2 . Capscrew
16 F000001441 1 . Fitting
17 209500 1 . Fitting
18 11079 2 . Fitting, Lube
19 R13810989 2 . Capscrew
20 223871 2 . Lockwasher
21 221777Wv 2 . Washer
22 225851 1 . Hard Washer
23 222465 1 . Locknut
24 F000007977 1 . 0.010 Spacer Washer
25 F000007978 1 . 0.005 Spacer Washer
26 SHM0000105 1 . 0.020 Steel Shim
27 SHM0000103 1 . Shim
Rev - F
9
6
7
6
18
18
23
22
4
12
5
4
1920
2
8
17
1
14
21
13
21
14
10
16
26262524
1
24 25 26 27
12
9
23
22
7
1
2
3
1920
6
5
4
4
NOTES:
SHIM TO 0" TO 0.004" CLEARANCE BETWEEN
BUSHING AND CONNECTING ROD BEARING MOUNT
TORQUE BOLT TO 700 FT-LB
TORQUE BOLT TO 309 FT-LB
APPLY MOLY-KOTE TO BOLT BODY AND BUSHING ID
APPLY ANTI-SEIZE TO THREADS
USE LOCTITE # 242
ORIENT GREASE FITTING AWAY FROM CONNECTING ROD
ORIENT FITTING PARALLEL TO CONNECTING ROD
1
2
3
4
5
6
7
8
8
7
67
89-096Rev: 11-2016
