Engine Installation, 37X
Page 1 of 4
Engine Installation, 37X
Page 1 of 4
Item Part No. Qty Description Item Part No. Qty Description
906189 Engine Installation
1 * 906188 1 . Assembly, Engine
2 252293 1 . Muffler
3 F000007742 1 . Battery Ground Strap 12 Volt
4 CLP0035751 1 . Clamp, Exhaust
5 EXH0011007 1 . Cap, Exhaust
6 F000007010 2 . Bolt, Adjusting
7 253403 1 . Gauge
8 F000007000 1 . Belt, Drive
9 * 254896 1 . Air Cleaner Assembly
10 ACL0004307 2 . Band, Air Cleaner
11 207146 3 . T-Bolt Clamp
12 207147 1 . T-Bolt Clamp
13 225370 2 . T-Bolt Clamp
14 ACL0000005 1 . Insert, Rubber
15 4200115 1 . Elbow, Rubber
16 255118 1 . Reducer
17 255120 1 . Reducer
18 00273802 4 . Nut, Serrated
19 SMS0000184 4 . Bolt, Whiz
20 902789 1 . Plate
21 252742 1 . Precleaner
22 ACL0000004 1 . Indicator
23 902904 1 . Tube, Spacer
24 902909 1 . Elbow
25 902913 1 . Tube
26 221569W 2 . Capscrew
27 234665 4 . Lockwasher
28 221771W 14 . Hard Washer
29 221711W 8 . Hex Nut
30 221576W 2 . Capscrew
31 HYD5275032 1 . Connector, Bulkhead
32 399741W 2 . Screw, Flange
33 R13812213 2 . Flat Washer
34 09416918 2 . Nut, Serrated
* See Separate Coverage
N/A Not Applicable
Rev - AA
NOTES:
1-1 ENSURE 84 TO 86 PLUNGER STROKES PER MINUTE
AT ENGINE FULL THROTTLE.
1-2 ENSURE 33 TO 35 PLUNGER STROKES PER MINUTE
AT ENGINE LOW IDLE.

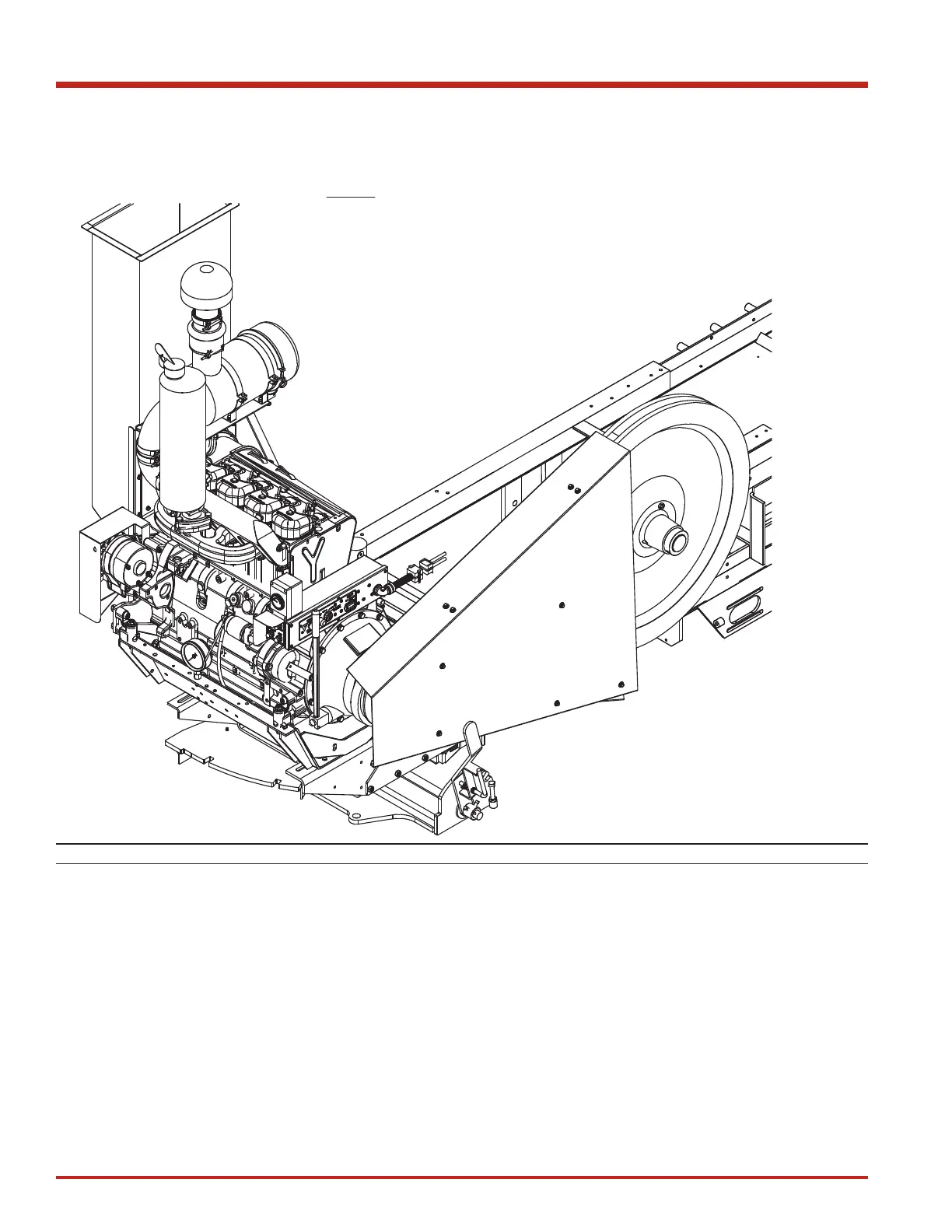

1-3 906189 ASSY SHOWN
