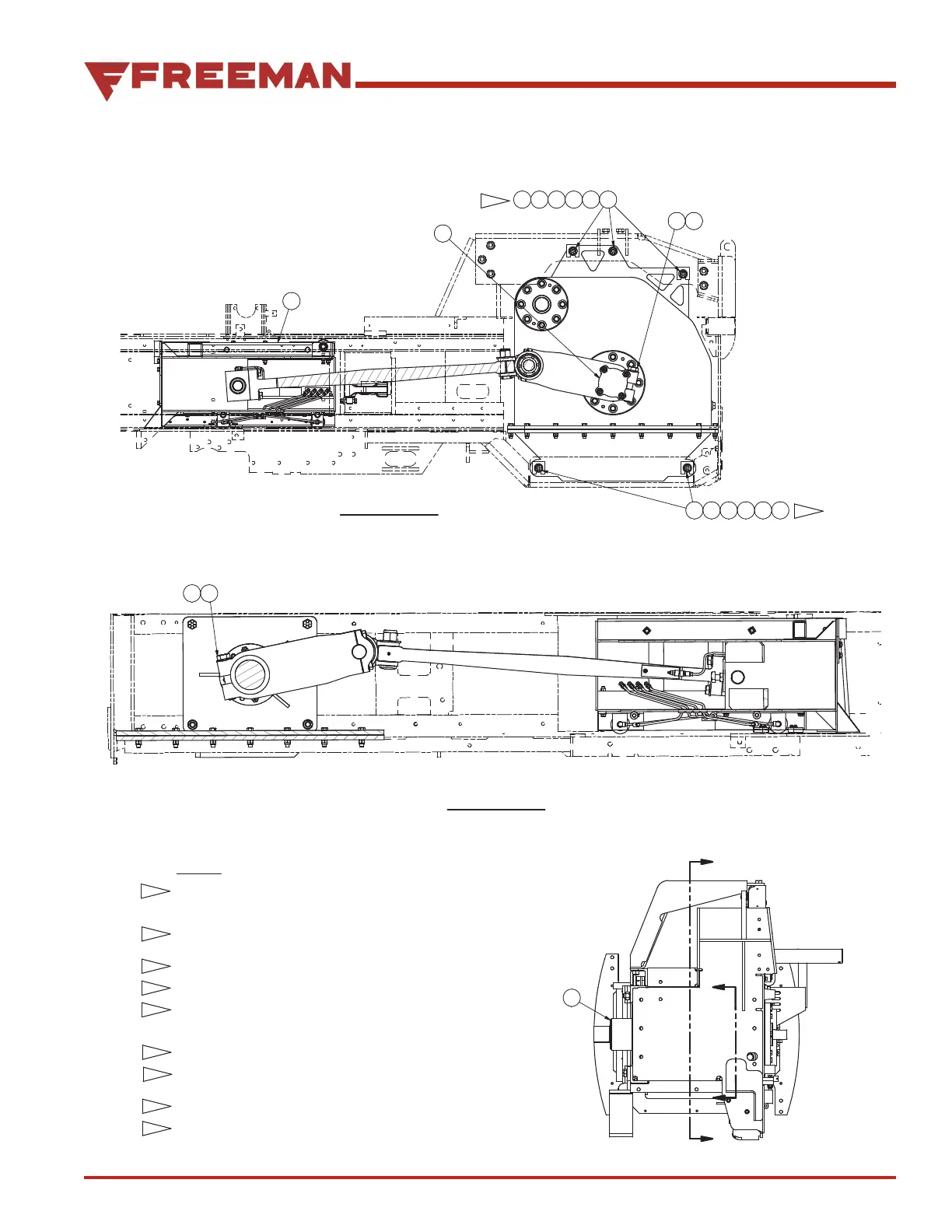

Gearbox Installation 15”KTD (16” Frame)
Page 1 of 5
SECTION A-A
SECTION B-B
17
18
1-1
1-1
1-1
NOTES:
SHIM GEARBOX TO ALIGN CRANK ARM PIN HOLE WITH
DRIVE ARM PIN HOLE IN 4 QUADRANTS IN ITS
RANGE OF MOTION.
16" CHAMBER & PLUNGER ASSY. SHOWN, REFER TO CHART FOR
PLUNGER ASSEMBLIES FOR OTHER CHAMBER SIZES.
SHIM AS NEEDED FOR STOP DOG TO FULLY ENGAGE PLUNGER STOP.
USE LOCTITE #242.
ADD 12.7 LBS (6.62 LITERS) OF LUBRICATING OIL TO GEARBOX.
OIL LEVEL SHOULD BE LEVEL WITH THE BOTTOM OF THE
FILL OPENING.
TORQUE SIDE PLATE BOLTS TO 365 FT-LBS.
PHOTO SHEET FOR SIDE PLATE BOLT CONFIGURATION IS AVAILABLE
FOR REFERECE UNDER CHART DR
AWING (906223).
INSTALL ITEM 33 AT THIS LEVEL, IT IS CALLED OUT IN THE SHIELD GROUP.
CONFIRM STOP DOG (ITEM 9) EXTENDS AT LEAST 1/2" BEYOND CHAMBER LINER.
1-2
1-3
1-4
1-5
2
1-6
1-7
5
1-8
17 18
8
13 16
27 28
29 30
1343
27
28
29
30
1-9
A
A
B
B
31
89-096Rev: 11-2016
