Connecting Rod Assy, Gearbox Baler, 14” 3-Tie
Page 1 of 1

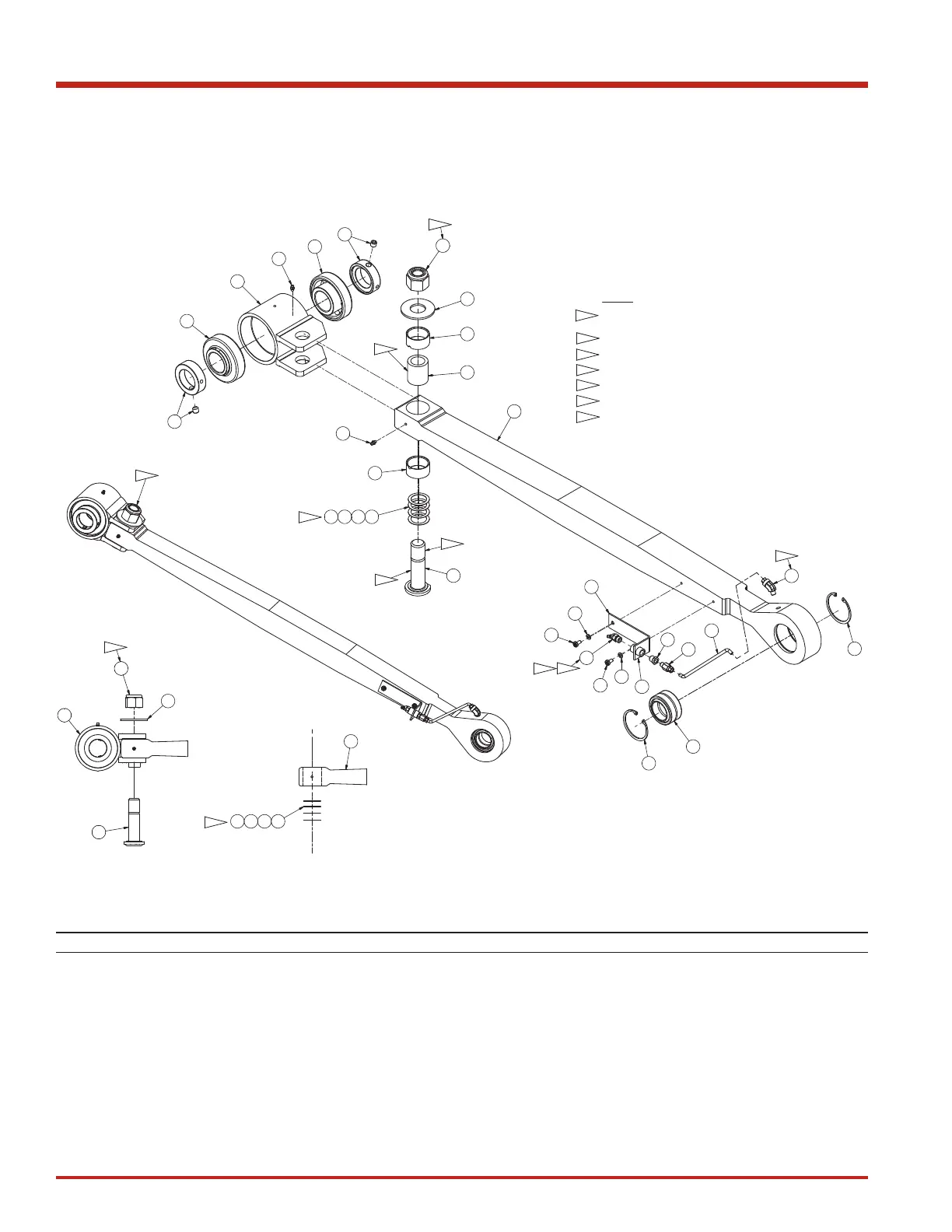

Connecting Rod Assy, Gearbox Baler, 14” 3-Tie
Item Part No. Qty Description Item Part No. Qty Description
906301 Connecting Rod Assembly
1 ROD0034342 1 . Plate, Conn Rod
2 903615 1 . Mounting, Conn Rod Brg
3 F000008078 1 . Connecting Rod Bushing
4 F000008100 2 . Bearing
5 F000008077 2 . Bearing, Inner Race
6 R1574466 1 . Bearing, Sealed Self Aligned
7 F000008263 1 . Bracket
8 PIN0008670 1 . Connecting Rod Pivot Pin
9 F000007917 2 . Ring, Snap
10 908716 1 . Tube
11 F000000778 1 . Tube Connector
12 11079 2 . Fitting, Lube,
13 F000007651 1 . Fitting, Grease
14 209500 2 . Fitting
15 253694 1 . Fitting
16 SHM0000103 1 . Shim
17 SHM0000105 1 . 0.020 Steel Shim
18 R13810989 2 . Capscrew
19 F000007978 1 . 0.005 Spacer Washer
20 F000007977 1 . 0. 010 Spacer Washer
21 225851 1 . Hard Washer
22 223871 2 . Lockwasher
23 222465 1 . Locknut
Rev E
2
23
21
8
1
17161920
1
1
1
17161920
4
4
2
12
4
4
23
21
5
3
12
5
8
1
7
22
18
13
22
18
7
14
11
10
9
6
15
9
2
2
2
3
4
5
6
3
4
3
2
5
6
NOTES:
SHIM TO 0" TO 0.004" CLEARENCE BETWEEN
BUSHING AND CONNECTING ROD BEARING MOUNT.
TORQUE BOLT TO 700 FT-LB
APPLY MOLY-KOTE TO BOLT BODY AND BUSHING ID
APPLY ANTI-SEIZE TO THREADS
USE LOCTITE # 242
ORIENT GREASE FITTING AWAY FROM CONNECTING ROD
ORIENT FITTING PARALLEL TO CONNECTING ROD
7
7
68
89-096 Rev: 11-2016
