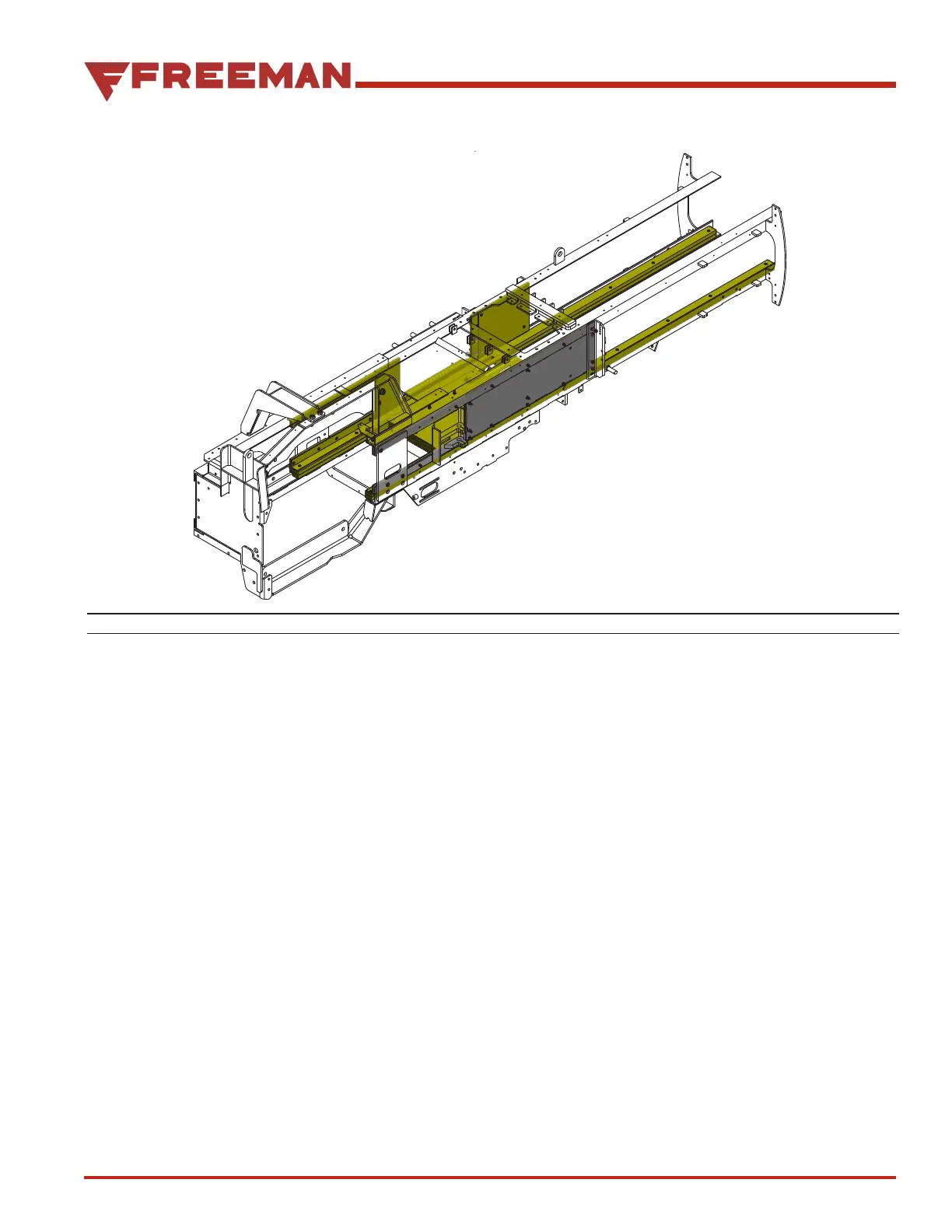

Chamber Inst, 14x21 Gearbox 3 Tie
Page 1 of 7
Chamber Inst, 14x21 Gearbox 3 Tie
Page 1 of 7
Item Part No. Qty Description Item Part No. Qty Description
908280 Chamber Inst, 14x21 Gearbox 3 Tie
1 F000000299 1 . Bar, RH
2 906729 1 . Guide Weldment
3 F000007744 1 . Stationary Knife
4 905059 1 . Rail, Bottom LH
5 905062 1 . Bar,Side Rail
6 906724 1 . Plate, RH Rail
7 906731 1 . Plate, RH Liner
8 F000007813 1 . Bar, RH
9 F000007816 1 . Liner, RH
10 F000007818 1 . Liner, LH
11 F000007819 1 . Bar, LH
12 PLG0026593 1 . Bar, Bottom RH
13 905060 1 . Rail
14 SPC0018514 8 . Bar, Spacer
15 SPC0018515 8 . Spacer
16 SPC0018516 6 . Bar, Spacer
17 SPC0018517 2 . Spacer
18 SPC0018519 2 . Bar, Spacer
19 SPC035753B 2 . Bar
20 908282 1 . Plate, Btm Chm Liner
21 903119 3 . Block, Track
22 903364 1 . Plate
23 908285 1 . Plate, LH Btm Liner
24 903368 1 . Adapter Weldment
25 903370 1 . Plate, RH Rail
26 903371 1 . Plate, LH Rail
27 R13811045 6 . Capscrew
28 R13801840 4 . Capscrew
29 Y09G-0520 4 . Capscrew
30 Y09G-0524 13 . Capscrew
31 Y09G-0528 21 . Capscrew
32 Y09G-0532 6 . Capscrew
33 Y09G-0536 1 . Capscrew
34 Y09G-0540 1 . Capscrew
35 Y09G-0548 11 . Capscrew
36 Y09G-0556 24 . Capscrew
37 Y09G-0656 3 . Capscrew
38 PWB5001750 3 . Bolt, Plow
39 R13802914 27 . Hard Washer
40 R13811449 6 . Flat Washer
42 221767W 9 . Hard Washer
43 R13812514 6 . Lockwasher
44 R13812516 4 . Lockwasher
45 221705W 2 . Hex Nut
46 237567 3 . Nut
47 223587 3 . Nut
48 SQS5001750 1 . Set Screw
49 234218
1 . Jam Nut
50 Y17C-1028 1 . Capscrew
51 222462 1 . Jam Nut
53 901737 2 . Shim
54 SPC0033118 1 . Spacer
61 232939 80 . Nut
62 906723 1 . Plate, RH Support
63 906725 1 . Plate, RH Side
64 906726 1 . Plate, RH Top
65 906730 1 . Plate, Rh Liner
66 906732 1 . Plate, Spacer
67 906735 1 . Spacer, LH
68 906308 2 . Bar, Spacer
69 908283 1 . Spacer, LH Btm
70 908284 1 . Spacer, LH Top
Rev -
* See Separate Coverage
89
89-096Rev: 11-2016
