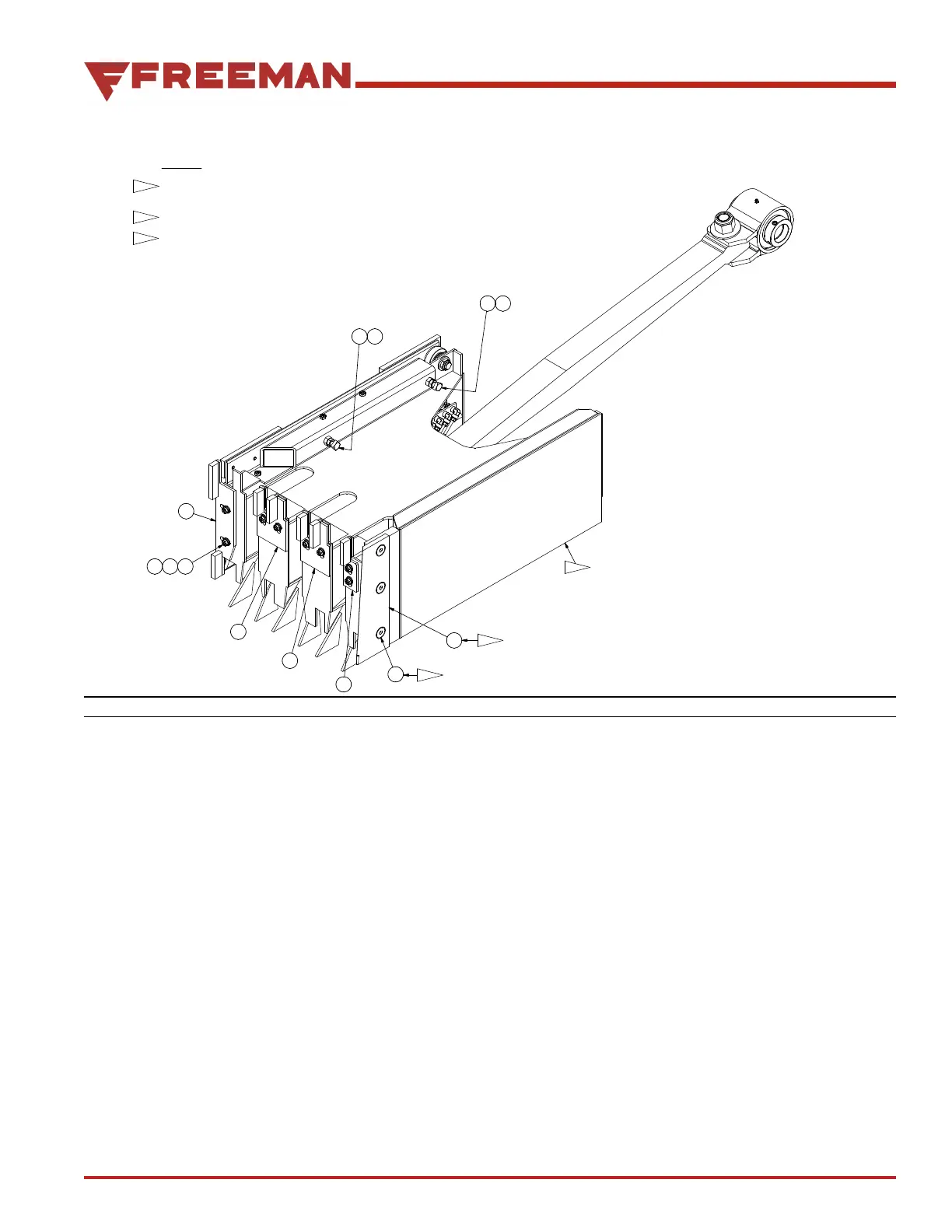

Plunger Assy, Kitted for 14”x21”
Page 2 of 3
Plunger Assy, Kitted for 14”x21”
Page 2 of 3
Item Part No. Qty Description Item Part No. Qty Description
908708 Plunger Assembly; 14X21
1 908704 1 . Plunger Weldment
2 906754 1 . Pad Weldment, RH
3 F000008057 2 . Pad Weldment
4 SHM0034535 1 . Shim
5 SHM0034534 1 . Shim,Knife,Plunger
6 903882 1 . Mounting Weldment
7 905084 1 . Angle, Mounting Rail
8 F000001537 4 . Slide
9 PIN0007831 4 . Pin
10 LOK0005857 1 . Plunger Bolt Lock
11 F000000986 2 . Wiper, Rear Plunger
12 F000000774 2 . Wiper
13 F000000775 4 . Bearing, Roller
14 F000007735 6 . Grommet, Rubber
15 PLG0007840 1 . Angle Weldment, RH
16 KNF0021901 1 . Knife, Plunger
17 F000000227 3 . Bolt
18 F000000073 2 . Set Screw
19 906756 1 . Pad Weldment, RH
20 R13811046 6 . Capscrew
21 Y17C-0616 8 . Capscrew
22 R13812514 21 . Lockwasher
23 221767W 21 . Washer, Hard
24 221707W 12 . Hex Nut
26 SQS5002500 2 . Setscrew
27 234218 4 . Jam Nut
28 00113991 8 . Screw, Machine
29 00191758 4 . Fitting, Lube
30 STS3125313 4 . Screw, Set
31 247008 2 . Jam Nut
32 R13811457 1 . Flat Washer
33 221342W 8 . Locknut
35 SQS7502250 2 . Screw, Set
36 BRG0001636 1 . Bearing, Top Roller
37 ZZ00000203 2 . Bushing
39 PLG0007839 1 . Roller Angle, Rh
40 * 906301 1 . Connecting Rod Assembly
41 F000007914 1 . Pin
42 R13807736 6 . Capscrew
43 F000001441 8 . Fittingbow
44 ZZ00000200 3 . Bushing, Machine
45 906920 1 . Jam Nut
50 R13811047 5 . Capscrew
51 Y09G-0510 6 . Capscrew
52 904564 1 . Tube
53 904565 1 . Tube
54 904566 1 . Tube
55
904567 1 . Tube
56 905095 1 . Angle, Mounting
57 NCJ0000313 1 . Jam Nut
58 R13811015 1 . Capscrew
59 ZZ00000202 1 . Bushing, Machine
Rev A
* See Separate Coverage
NOTES:
PLUNGER KNIFE CANNOT EXTEND MORE THAN .002" PAST SIDE OF PLUNGER
OR BE RECESSED MORE THAN .005" BELOW THE PLUNGER SIDE.
TORQUE ITEM 17 TO 130 FT-LBS.
RH SIDE OF PLUNGER ASSEMBLY SHOULD BE PERPENDICULAR WITHIN ±.015" TO ASSEMBLY STAND.
18 27
18
27
19
21
22
23
3
3
2
17
16
3X
8X
1-3
1-1
1-2
1-1
1-2
1-3
65
89-096Rev: 11-2016
