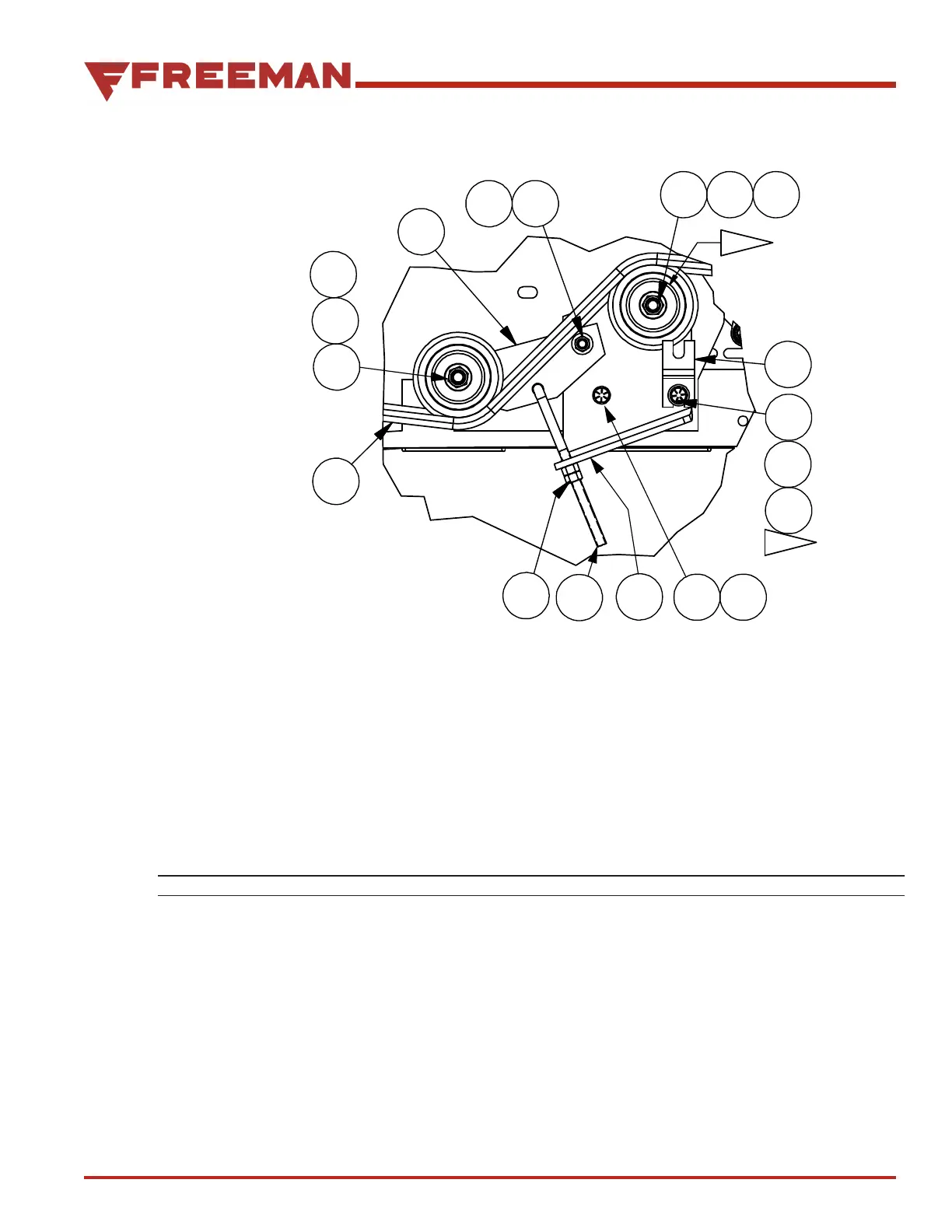

Knotter Drive Installation, Gearbox Baler
Page 2 of 2
Item Part No. Qty Description Item Part No. Qty Description
908293 Installation, Knotter Drive
1 253836 1 . Sprocket
2 906818 0 . Bracket, Center Chain Shield
3 906817 1 . Shield, Inner Chain
4 F000007055 1 . Chain, Knotter Drive
5 F000008112 1 . Plate, Hold Down
6 F000008086 1 . Bracket
7 F000008083 1 . Bracket, Chain Tightener
8 906819 1 . Bracket, Chain Shield
9 F000008084 1 . Rod, Chain Tightener
10 F000007397 2 . Sprocket
11 ZZ00000459 1 . Key
12 00103384 1 . Cotter Pin
13 F000000440 1 . Ferrule
14 Y09G-0528 1 . Capscrew
15 162572W 1 . Capscrew
16 Y17C-0616 1 . Capscrew
17 Y17C-0624 1 . Capscrew
18 R13811080 1 . Capscrew
19 221576W 1 . Capscrew
20 R13801850 1 . Capscrew
21 221771W 16 . Hard Washer
22 Y27E-28 1 . Hard Washer
23 221767W 4 . Washer, Flat
24 R13812514 2 . Lockwasher
25 234665 1 . Lockwasher
26 221707W 2 . Hex Nut
27 237567 1 . Nut, Esna
28 223587 2 . Nut, Esna
29 232939 1 . Nut, Esna
30 F000000883 2 . Pulley, Idler
Rev E
Knotter Drive Installation; Gearbox Baler
Page 2 of 2
DETAIL E
A
A
B
B
C
C
D
D
E
SECTION A-A
1
11
22
4
4
7
9
26
6
15 24
2723
8
16
24
23
1.2
1.3
1.2.4
SECTION C-C
20
25
10
21
10
21
3
1.1
1.1
5
28
21
30
28 21 30
SECTION D-D
19
7
91223
17
13
18
3
21
6
21
4
28 21 30
28 21
30
SECTION B-B
14
2
29
4
3
1-5
NOTES:
1.1 - IDLER SPROCKET ALIGNED TO FOLLOW PATH OF CHAIN. CHAIN SHOULD NOT RUB KNOTTER SHAFT SPROCKET WHEN OPERATING. USE AS
REQUIRED BUT SUGGESTED QUANTITY IS SHOWN.
1.2 - CHAIN ASSEMBLY NOTES:
1.2.1 - TAILLESS KNOTTER: USE (2) OFFSET DRIVE LINKS (F000000759) AND (1) CONNECTING LINK (F000000760) FROM F000007055.
1.2.2 - CONVENTIONAL KNOTTER: USE (1) CONNECTING LINK (F000000760) FROM F000007055.
1.2.3 - INSTALL CLIP FOR CONNECTING LINK FURTHEST FROM THE FRAME.
1.2.4 - ROUTE THIS SIDE OF THE CHAIN TO THE INSIDE IDLER SPROCKET.
1.3 - (2) OF ITEM 23 IS NEEDED TO PREVENT BOLT FROM PUSHING ON THE CHAMBER LINER.
1.4 - PHOTO SHEET IS AVAILABLE FOR REFERENCE IN THE VIEWER.
CHAIN BRACKET (906818) IS CALLED OUT AND PRE-MOUNTED DURING CHAMBER INSTALLATION.
NOTES:
1.1 - IDLER SPROCKET ALIGNED TO FOLLOW PATH OF CHAIN. CHAIN SHOULD NOT RUB KNOTTER SHAFT SPROCKET WHEN
OPERATING. USE AS REQUIRED BUT SUGGESTED QUANTITY IS SHOWN.
1.2 - CHAIN ASSEMBLY NOTES:
1.2.1 - TAILLESS KNOTTER: USE (2) OFFSET DRIVE LINKS (F000000759) AND (1) CONNECTING LINK (F000000760) FROM F000007055.
1.2.2 - CONVENTIONAL KNOTTER: USE (1) CONNECTING LINK (F000000760) FROM F000007055.
1.2.3 - INSTALL CLIP FOR CONNECTING LINK FURTHEST FROM THE FRAME.
1.2.4 - ROUTE THIS SIDE OF THE CHAIN TO THE INSIDE IDLER SPROCKET.
1.3 - (2) OF ITEM 23 IS NEEDED TO PREVENT BOLT FROM PUSHING ON THE CHAMBER LINER.
1.4 - PHOTO SHEET IS AVAILABLE FOR REFERENCE IN THE VIEWER. CHAIN BRACKET (906818) IS CALLED OUT AND PRE-MOUNTED
DURING CHAMBER INSTALLATION.
1.5 - CHAIN BRACKET (906818) IS CALLED OUT AND PRE-MOUNTED DURING CHAMBER INSTALLATION
49
89-096Rev: 11-2016
