Shield Installation; LH
Page 1 of 1
Item Part No. Qty Description Item Part No. Qty Description
906829 Shield Installation, LH
1 F000008155 1 . Plate, Sheild
2 COV0008038 1 . Plate. Cover
3 * SHD0008040 1 . Shield Assembly
4 BKT0008024 1 . Rear Bracket-Pickup Dr Belt Shiel
5 906830 1 . Bracket, Front
6 SMS0000184 7 . Bolt, Whiz
7 223428 13 . Flat Washer
8 R13802914 6 . Hard Washer
9 191534W 11 . Nut
* See Separate Coverage
Rev -

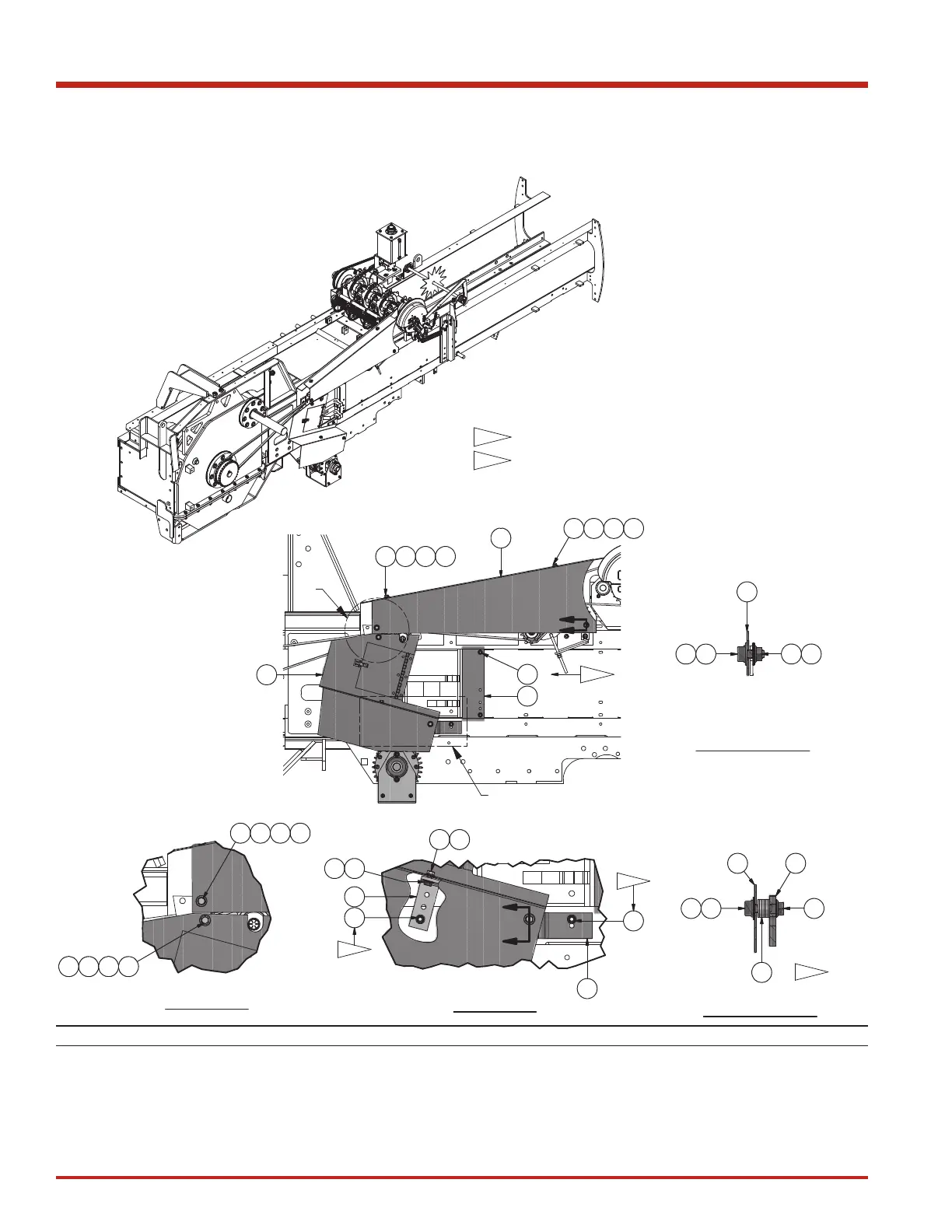

Shielding Installation; LH
Page 1 of 1
DETAIL A
DETAIL B
SECTION C-C
SECTION D-D
A
B
C
C
D
D
6
7 7
9
6
7 7
9
6
7 7
9
6779
2
9
X2
NOTES:
- USE EXISTING CAPSCREW.
- SHIM USING WASHER TO ALIGN SHIELD ITEM 3
1
3
9
9
6 7
5
9
7
4
3
4
9
6
7
8
A/R
1
6
7
9 7
1-1
1-1
1-1
1-1
1-2
1-2
50
89-096 Rev: 11-2016
