Allied Systems Freeman 370 - Frame & Axle, 16”; Frame and Axle Assembly Components

Frame & Axle, 16”
Page 1 of 1

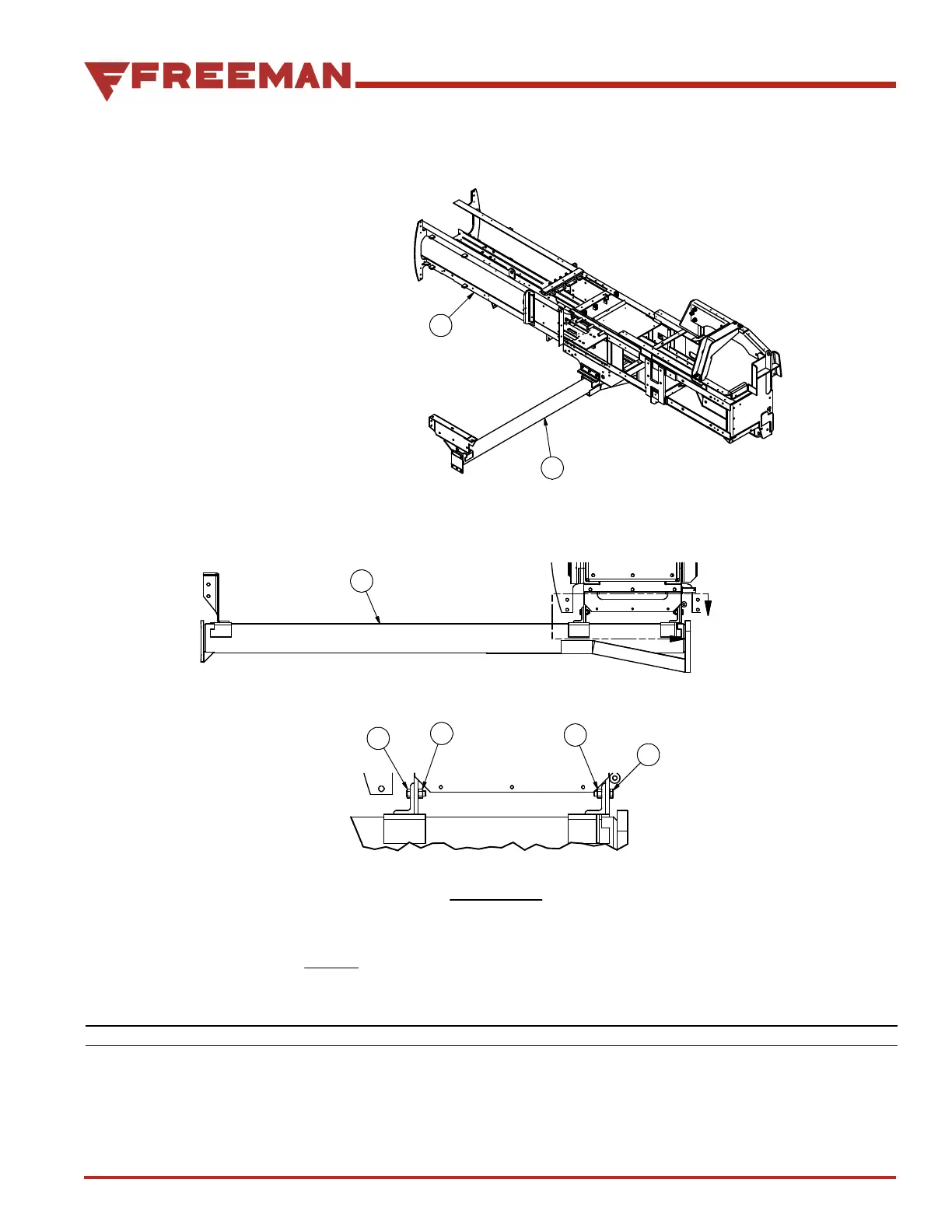

Frame & Axle, 16”; Gearbox Baler
Item Part No. Qty Description Item Part No. Qty Description
909327 Frame & Axle Assembly
1 906811 1 . Frame, 16”; 3 Tie, Gearbox Baler
2 AXL0030902 1 . Axle
3 200454W 6 . Capscrew
4 221711W 6 . Nut
Rev -
DETAIL A
2
2
3
4
4
3
3X
3X
3X
3X
NOTES:
1. VIEWS ARE OF 16" 3-TIE BULLGEAR FRAME.
