Allied Systems Freeman 370 User Manual

Tensioning/Rear Mnt Inst - 380/385, 14” Kitted
Page 2 of 2
Item Part No. Qty Description Item Part No. Qty Description
905867 Tensioning/Rear Mnt Inst
1 PLT0035077 2 . Bar, Upper
3 TNS0034362 2 . Weldment, Rail
4 TNS036528D 1 . Tension Rail Weldment, LH
5 TNS036527D 1 . Tension Rail Weldment, RH
6 TNS0022284 2 . Weldment, Rail
7 SPC0035591 4 . Bar, Spacer
8 TNS036531E 2 . Tension Rail & Beam Assembly
9 TNS035803B 2 . Tension Rail Squeeze Plate
10 CYL0033749 2 . Cylinder
SEL000KT25 1 . . Seal Kit
11 YOK036534D 1 . Yoke Weldment
12 F000006519 1 . Cylinder
SEL0008408 1 . . Seal Kit
13 BKT037356B 1 . Bracket
14 ZZ00000218 4 . Bushing
15 221518W 4 . Capscrew
16 R13811191 8 . Locknut
17 R13802623 10 . Flat Washer
18 Y17C-0624 4 . Capscrew
19 R13811032 2 . Capscrew
20 R13812514 2 . Lockwasher
21 R13811196 4 . Locknut
22 221664W 2 . Capscrew
23 221662W 2 . Capscrew
24 200454W 8 . Capscrew
25 R13804125 16 . Locknut
26 R13801857 2 . Capscrew
27 R13811193 6 . Nut, Esna
28 234889 4 . Capscrew
29 Y09G-0820 8 . Capscrew
Rev A

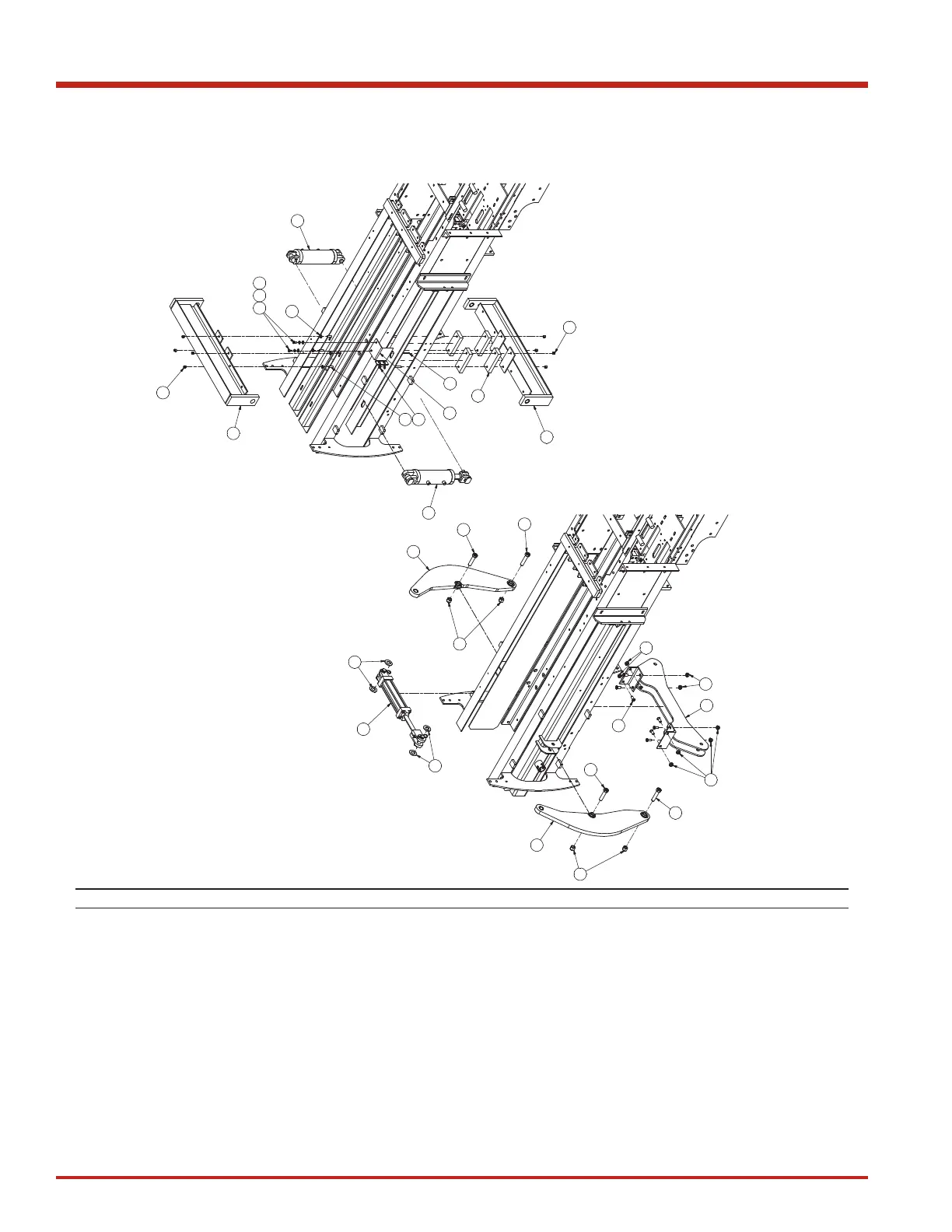

INSTALLATION OF HORIZONTAL CYLINDER W/MOUNTS
INSTALLATION OF VERTICAL CYLINDER W/MOUNTS
14
14
21
9
25
25
11
21
9
25
16
19
20
17
10
16
10
13
18
12
29
7
8
8
22
23
22
23
17
17
15
4X
4X
8X
4X
4X 4X
4X
4X
Tensioning/Rear Mnt Inst - 380/385, 14” Kitted
Page 2 of 2
86
89-096 Rev: 11-2016
