Tensioning/Rear Mnt Inst, 37X - 16” Frame Ktd-15”
Page 1 of 4

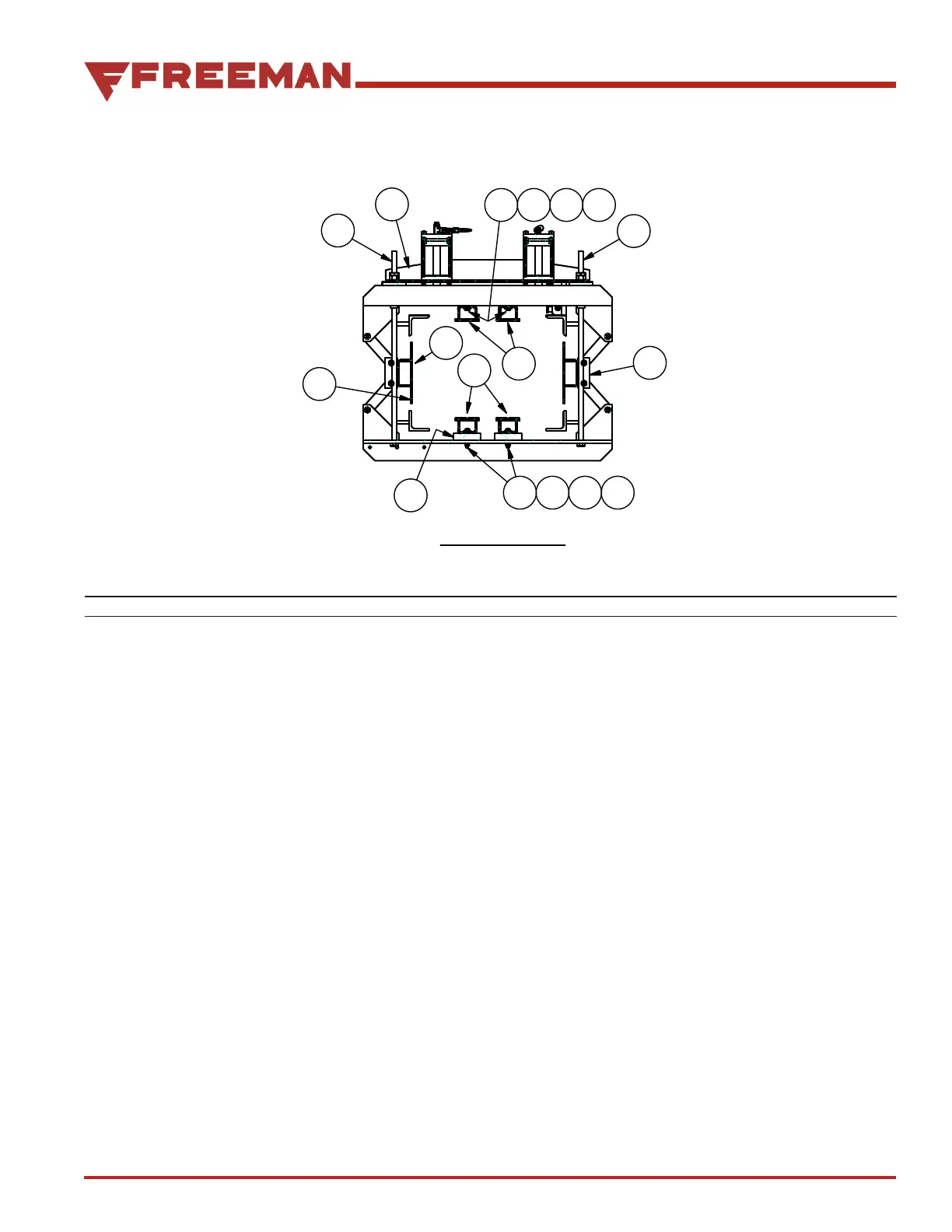

Tensioning/Rear Mounts Inst - 16” Frame Ktd 15”
Page 1 of 4
Item Part No. Qty Description Item Part No. Qty Description
909387 Tensioning/Rear Mounts Installation
1 PLT0035077 2 . Bar, Upper
2 TNS0034362 2 . Weldment, Rail
3 TNS0022284 2 . Weldment, Rail
4 TNS0018902 1 . Weldment, Tension Rail - LH
5 TNS0018903 1 . Weldment, Tension Rail - RH
6 TNS0007049 1 . Weldment, Tension Angle - Btm
7 TNS0007050 1 . Weldment, Tension Angle - Top
*8 FT00000277 1 . Assy, Dual Ram
9 MNT037760B 2 . Plate, Support
10 PAD0018804 2 . Pad, Support
11 F000000497 8 . Linkage Bar
12 F000000600 2 . Bolt, Tension
13 903552 2 . Plate, Spacer
*14 FT00015049 1 . Tension Pump & Tank Assy
15 909079 1 . Assy, Chain
16 SPK0004030 1 . Sprocket
17 FT00000192 1 . Bypass Box
18 FT00000050 1 . Cover Plate
19 HSP0000004 3 . Hose Protector
20 FT00000252 2 . Hose Clamp
21 CLP0000165 1 . Clamp, Jiffy
22 909389 1 . Hose Assy
23 237534 1 . Hose Assy
24 FT00000221 1 . Hose Assy
25 589773 1 . Hose Assy
26 SMS0000173 3 . Screw, Ser Flg
27 R13811031 2 . Capscrew
28 174413W 1 . Screw, Ser Flg
29 Y17C-0624 4 . Capscrew
30 180959W 2 . Capscrew
31 R13801840 2 . Capscrew
32 221563W 16 . Capscrew
33 200454W 6 . Capscrew
34 234889 4 . Capscrew
35 R13801857 2 . Capscrew
36 R13802623 10 . Flat Washer
37 R13812514 4 . Lockwasher
38 234665 10 . Lockwasher
39 237567 6 . Nut, Esna
40 221711W 8 . Hex Nut
41 NEJ0000500 16 . Nut, Esna
42 R13804125 6 . Locknut
43 221716W 2 . Hex Nut
44 247008 2 . Jam Nut
45 N/A 0 . Side Tension Liner
46 N/A 0 . Capscrew
47 N/A 0 . Nut
48 238206 2GL . Oil, Hydraulic
49
221569W 2 . Capscrew
50 R13810993 1 . Capscrew
51 R13811015 2 . Capscrew
52 221499W 2 . Capscrew
53 221763W 1 . Hard Washer
54 R13802914 4 . Hard Washer
55 221767W 2 . Hard Washer
56 R13812512 1 . Lockwasher
57 223588 2 . Nut, Esna
58 09411507 1 . Nut
59 909078 1 . Plate, Tank Mnt
* See Separate Coverage
Rev A
15" KITTED
13
30 36 36 39
29 36 36 39
12
12
3
2
8
4
45
5
73
89-096Rev: 11-2016
To Next Page
